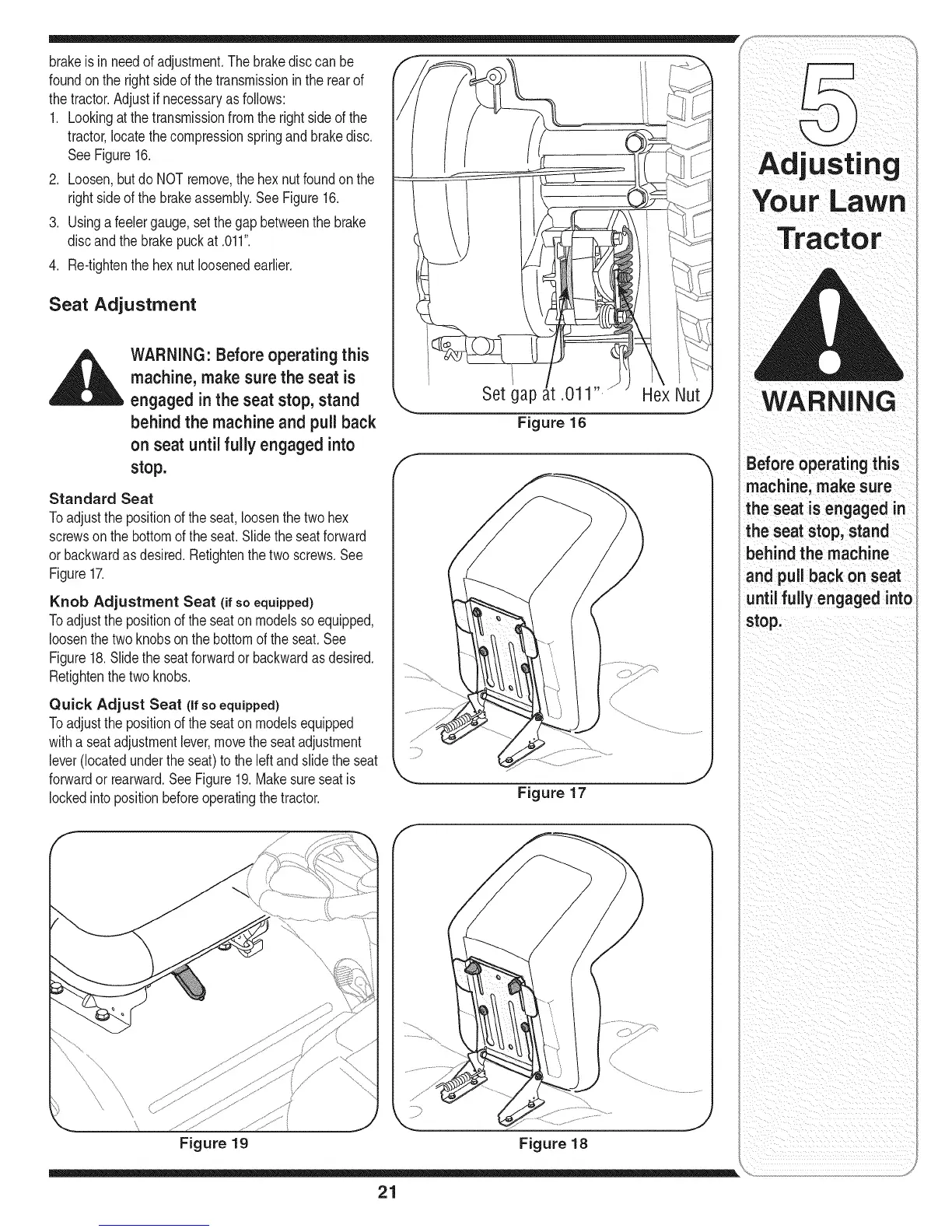

brakeisin needof adjustment.Thebrakedisccan be
foundon the rightsideof thetransmissionin the rearof
thetractor.Adjustif necessaryasfollows:
1. Lookingatthetransmissionfromthe right sideof the
tractor,locatethecompressionspringandbrakedisc.
See Figure16.
2. Loosen,but do NOTremove,thehexnutfoundon the
rightsideof the brakeassembly.SeeFigure16.
3. Usingafeelergauge,setthe gapbetweenthe brake
discandthebrakepuckat.011".
4. Re-tightenthe hexnut loosenedearlier.
Seat Adjustment
_ ARNING: Before operating this
machine,make sure the seat is
engaged in the seat stop, stand
behind the machine and pull back
on seat until fully engaged into
stop.
Standard Seat
Toadjustthepositionoftheseat,loosenthe twohex
screwson the bottomof the seat.Slidethe seatforward
or backwardas desired.Retightenthe twoscrews.See
Figure17.
Knob Adjustment Seat (if so equipped)
Toadjustthepositionoftheseaton modelsso equipped,
loosenthetwoknobson the bottomof theseat. See
Figure18.Slidetheseatforwardor backwardasdesired.
Retightenthetwoknobs.
Quick Adjust Seat (if so equipped)
Toadjustthepositionoftheseaton modelsequipped
witha seatadjustmentlever,movethe seatadjustment
lever(locatedundertheseat)totheleftand slidethe seat
forwardor rearward.SeeFigure19.Makesureseatis
lockedintopositionbeforeoperatingthetractor.
Set gap
Figure 16
Hex Nut
Figure 17
.....J
\
Figure 19 Figure 18
21
Adjusting
urLawn
WARNING
Before operating this
machine, make sure
the seat is engaged in
the seat stop, stand
behind the machine
and pull back on seat
until fully engaged into
stop.
