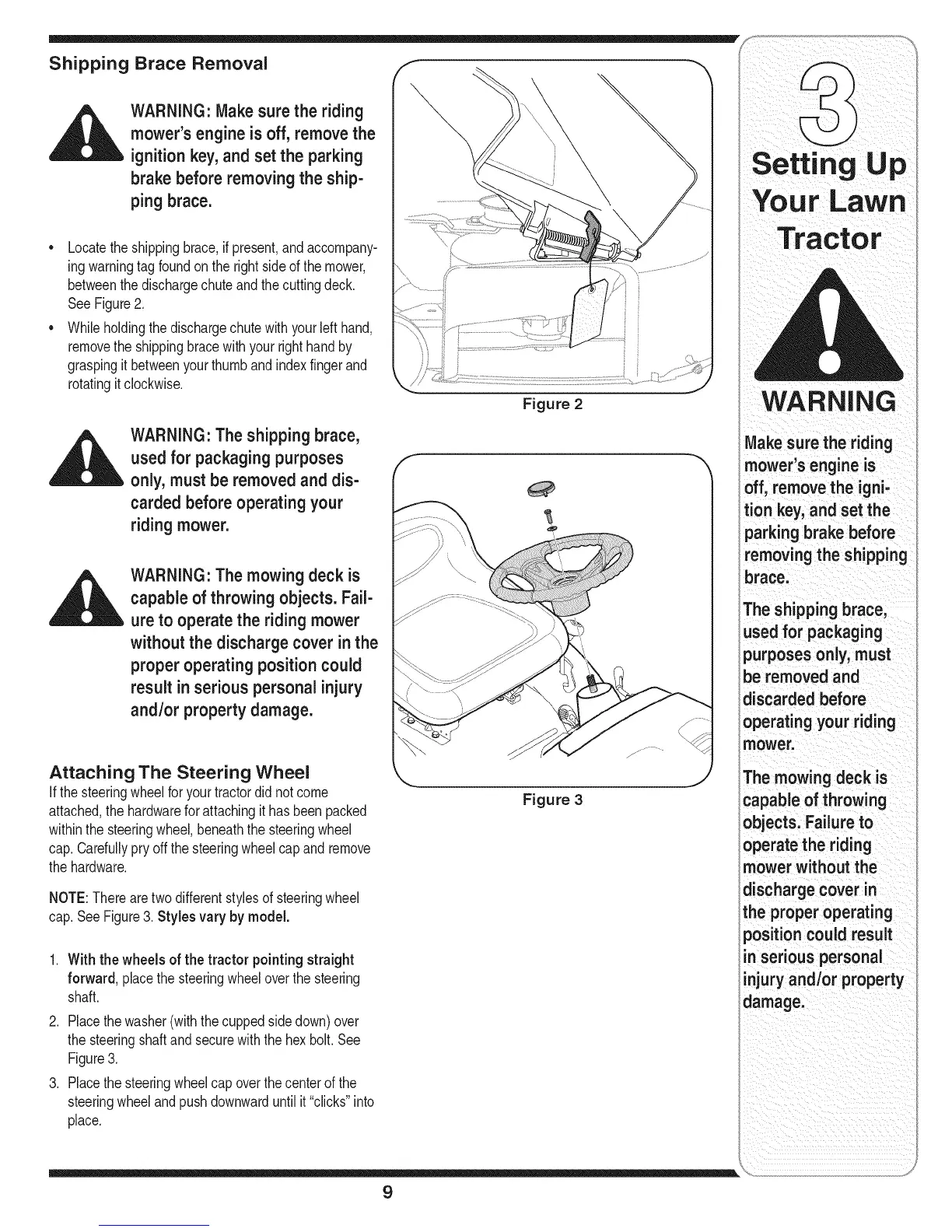

Shipping Brace Removal f
WARNING: Make sure the riding
mower's engine is off, removethe
ignition key, and set the parking
brake before removing the ship-
ping brace.
• Locatetheshippingbrace,ifpresent,andaccompany-
ingwarningtag foundon therightsideofthemower,
betweenthedischargechuteand thecuttingdeck.
See Figure2.
• Whileholdingthe dischargechutewithyourleft hand,
removetheshippingbracewithyour righthandby
graspingitbetweenyour thumbandindexfingerand
rotatingitclockwise.
WARNING: The shipping brace,
used for packagingpurposes
only, must be removedand dis-
carded before operating your
riding mower.
WARNING: The mowing deck is
capable of throwing objects. Fail-
ure to operate the ridingmower
without the discharge cover in the
proper operating position could
result inserious personal injury
and/or property damage.
Attaching The Steering Wheel
Ifthesteeringwheelforyourtractordid notcome
attached,thehardwareforattachingit hasbeenpacked
withinthesteeringwheel,beneaththe steeringwheel
cap.Carefullypry offthe steeringwheelcapand remove
thehardware.
NOTE:Therearetwodifferentstylesof steeringwheel
cap.SeeFigure3.Stylesvary by model.
1. With the wheels of the tractor pointingstraight
forward, placethesteeringwheeloverthe steering
shaft.
2. Placethewasher(withthecuppedsidedown)over
thesteeringshaftandsecurewiththehexbolt.See
Figure3.
3. Placethesteeringwheelcapoverthecenterofthe
steeringwheelandpushdownwarduntilit"clicks"into
place.
Figure 2
Figure 3
TractOr
WARNING
Make surethe riding
mower's engine is
off, removethe igni-
tion key, and set the
parking brake before
removingthe shipping
brace.
The shipping brace,
used for packaging
purposes only, must
be removedand
discarded before
operatingyour riding
mower.
The mowing deck is
capable ofthrowing
objects. Failureto
operate the riding
mower withoutthe
discharge cover in
the properoperating
position could result
in serious personal
injury and/or property
damage.
9
