Yardistry YM12949 - Step 3: Gable Beam Assembly

14 support@yardistrystructures.com
5/16”
T-nut
Step 3: Gable Beam Assembly
HardwareWood Parts
A: Connect one (535) Gable Beam to a second (535) Gable Beam using two 5/16 x 1-1/2” Hex Bolts (with 5/16”
lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in g. 3.1 and 3.2.
B: Repeat Step A one more time to make two Gable Beam Assemblies.
4 x (535) Gable Beam 38.1 x 139.7 x 1943.1 mm (1-1/2 x 5-1/2 x 76-1/2”)

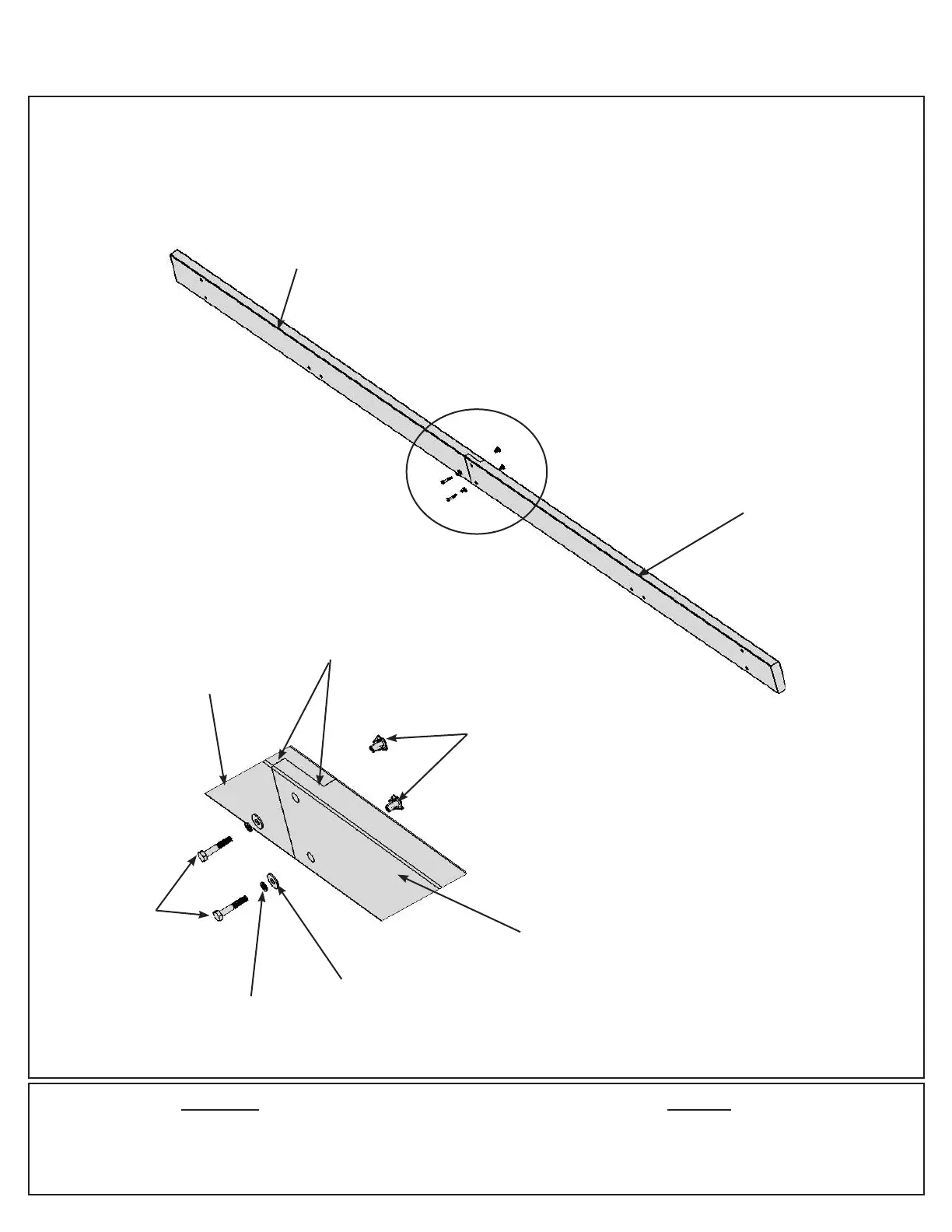

Fig. 3.1
4 x 5/16 x 1-1/2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
Fig. 3.2
5/16 x 1-1/2”
Hex Bolt
Tight
(535) Gable Beam
5/16” Lock
Washer
(535) Gable Beam
(535) Gable Beam
(535) Gable Beam
1/4-5/16”
Large Washer
