Yardistry YM12949 - Part Identification

8 support@yardistrystructures.com

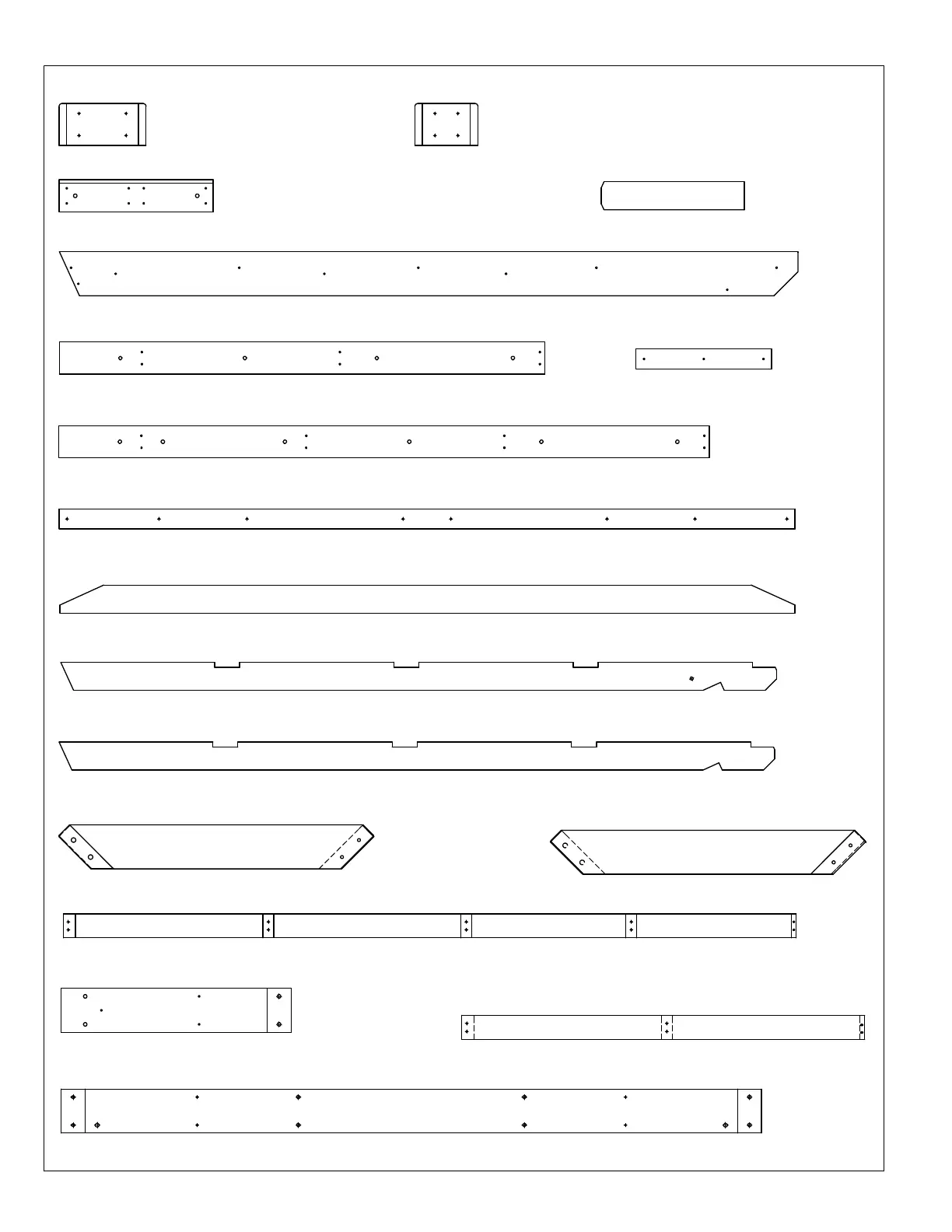

Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
23.8 x 133.4 x 200mm (5/4 x 6 x 7-7/8")
8pc. (459) Plinth FSC
Y50229-459
Y50229-460
8pc. (460) Plinth Long FSC
23.8 x 133.4 x 276.2mm (5/4 x 6 x 10-7/8")
Y50229-547
5pc. (547) Tie Brace FSC 31.8 x 88.9 x 454mm
(1¼ x 3½ x 17-7/8")
Y50229-542
2pc. (542) Ridge Short FSC 25.4 x 101.6 x 1541.4mm (1 x 4 x 60-11/16")
Y50229-541
2pc. (541) Ridge Long FSC 25.4 x 101.6 x 2065.3mm (1 x 4 x 81-5/16")
Y50229-550
4pc. (550) Fascia FSC 25.4 x 139.7 x 2344.7mm (1 x 5½ x 92-5/16")
Y50229-545
4pc. (545) Rafter Brace FSC 25.4 x 101.6 x 489mm (1 x 4 x 19-1/4")
5pc. (546) Tie FSC 31.8 x 88.9 x 2333.6mm (1¼ x 3½ x 91-7/8")
Y50229-546
Y50229-539
10pc. (539) Rafter A FSC 31.8 x 88.9 x 2272.1mm (1¼ x 3½ x 89-29/64")
Y50229-548
4pc. (548) Gable End FSC 38.1 x 63.5 x 430mm
(1½ x 2½ x 16-15/16")
38.1 x 139.7 x 1003.3mm (1½ x 5½ x 39½")
4pc. (577) Right Gusset FSC
Y50229-577
Y50229-549
2pc. (549) Gable Inside FSC 38.1 x 63.5 x 2336.8mm (1½ x 2½ x 92")
Y50229-538
4pc. (538) Side Beam Ends FSC 38.1 x 139.7 x 729.8mm (1½ x 5½ x 28-47/64")
Y50229-540
4pc. (540) Rafter B FSC 38.1 x 88.9 x 2272.1mm (1½ x 3½ x 89-29/64")
Y50229-551
4pc. (551) Left Gusset FSC 38.1 x 139.7 x 1003.3mm (1½ x 5½ x 39½")
Y50229-544
8pc. (544) Strap Short FSC 31.8 x 76.2 x 1279.1mm (1¼ x 3 x 50-23/64")
8pc. (543) Strap Long FSC 31.8 x 76.2 x 2326.9mm (1¼ x 3 x 91-5/8")
Y50229-543
Y50229-537
2pc. (537) Side Beam Inside FSC 38.1 x 139.7 x 2223.4mm (1½ x 5½ x 87-35/64")
