Yardistry YM12949 - Page 9

9 support@yardistrystructures.com
52pc.
5/16" (Y05318-300)
Lock Washer
1pc.
Hex Driver
(Y00400-004)
52pc.
5/16" (Y08518-300)
T-Nut
1pc.
1/8" (Y00400-002)
Drill Bit
1pc.
#2 x 2" (Y00400-005)
Robertson Driver
16pc.
3/8 x 1¼" (Y05118-811)
Large Washer
10pc.
#10 x 2-1/2" - (Y06491-722) Pan Screw
116pc.
1/4
-
5/16 x 1¼" (Y05118-311)
Large Washer
20pc.
1/4" (Y08318-203)
Lock Nut
4pc.
#8x3/4" - (Y06430-503)
Sheet Metal Screw
202pc.
#8x 1" (Y06730-510)
Hex Roofing Screw
116pc.
#10 x 1-1/4" (Y06491-711) Pan Screw
10pc.
Pan Screw
#12 x 1-1/4"
(Y06491-611)
8pc.
3/8" (Y08318-803)
Lock Nut
70pc.
#8 x 1"
(Y06491-510) Pan Screw
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.

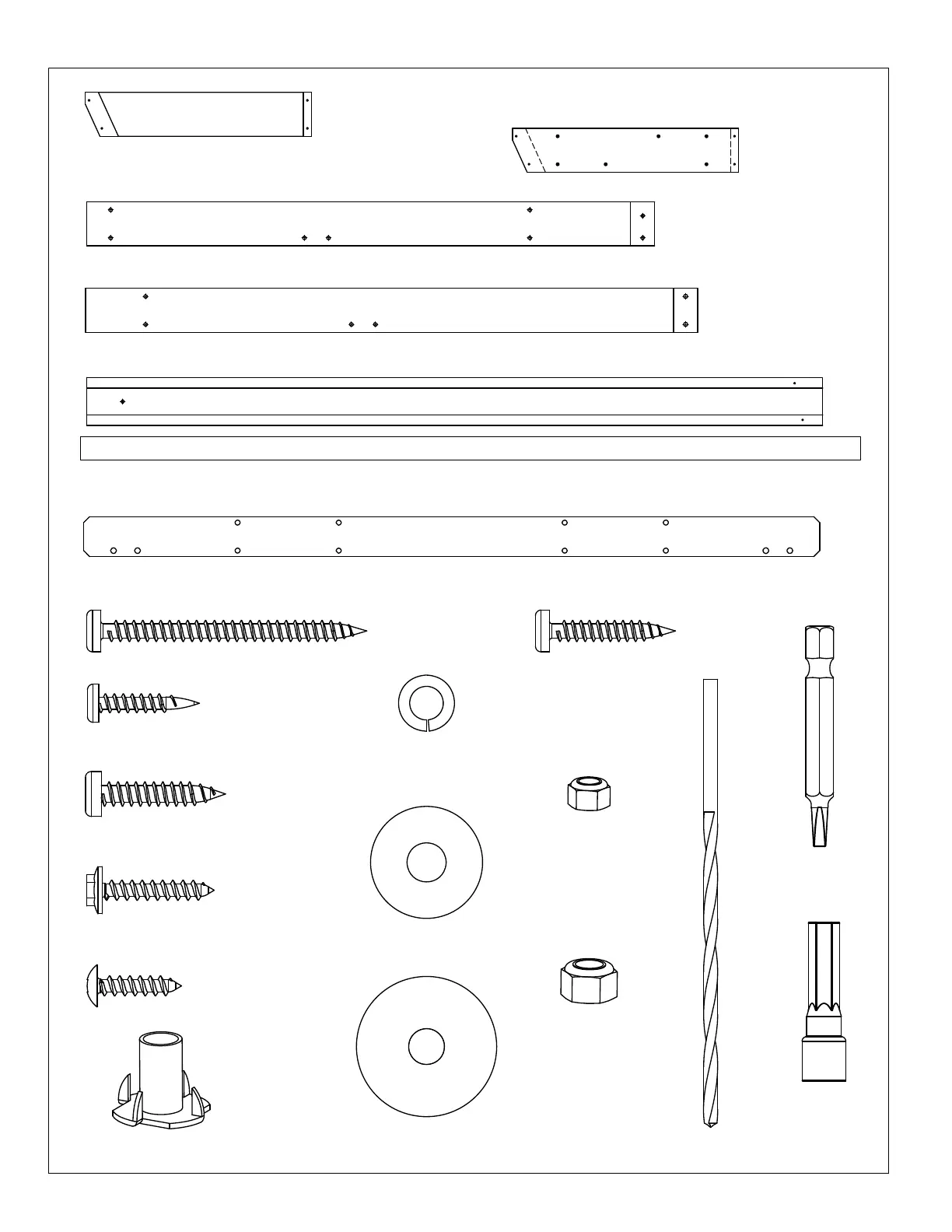

Part Identification ( )
2pc. (552) Gable Upright Assemby Right FSC 76.2 x 139.7 x 717.4mm (3 x 5½ x 28¼")
Y70229-552
4pc. (536) Side Beam Outside FSC 38.1 x 139.7 x 1803.4mm (1½ x 5½ x 71")
Y50229-536
NOTE: Parts have been packed inside (530) 6 x 9 Post. Check for parts inside the posts.
76.2 x 139.7 x 717.4mm (3 x 5½ x 28¼")
2pc. (553) Gable Upright Assemby Left FSC
Y70229-553
4pc. (535) Gable Beam FSC 38.1 x 139.7 x 1943.1mm (1½ x 5½ x 76½")
Y50229-535
4pc. (530) 6 x 9 Post FSC 152.4 x 228.6 x 2336.8mm (6 x 9 x 92")
Y70229-530
2pc. Beam Insert 2.7 x 127 x 2336.8mm (7/64 x 5 x 92")
Y00429-161
