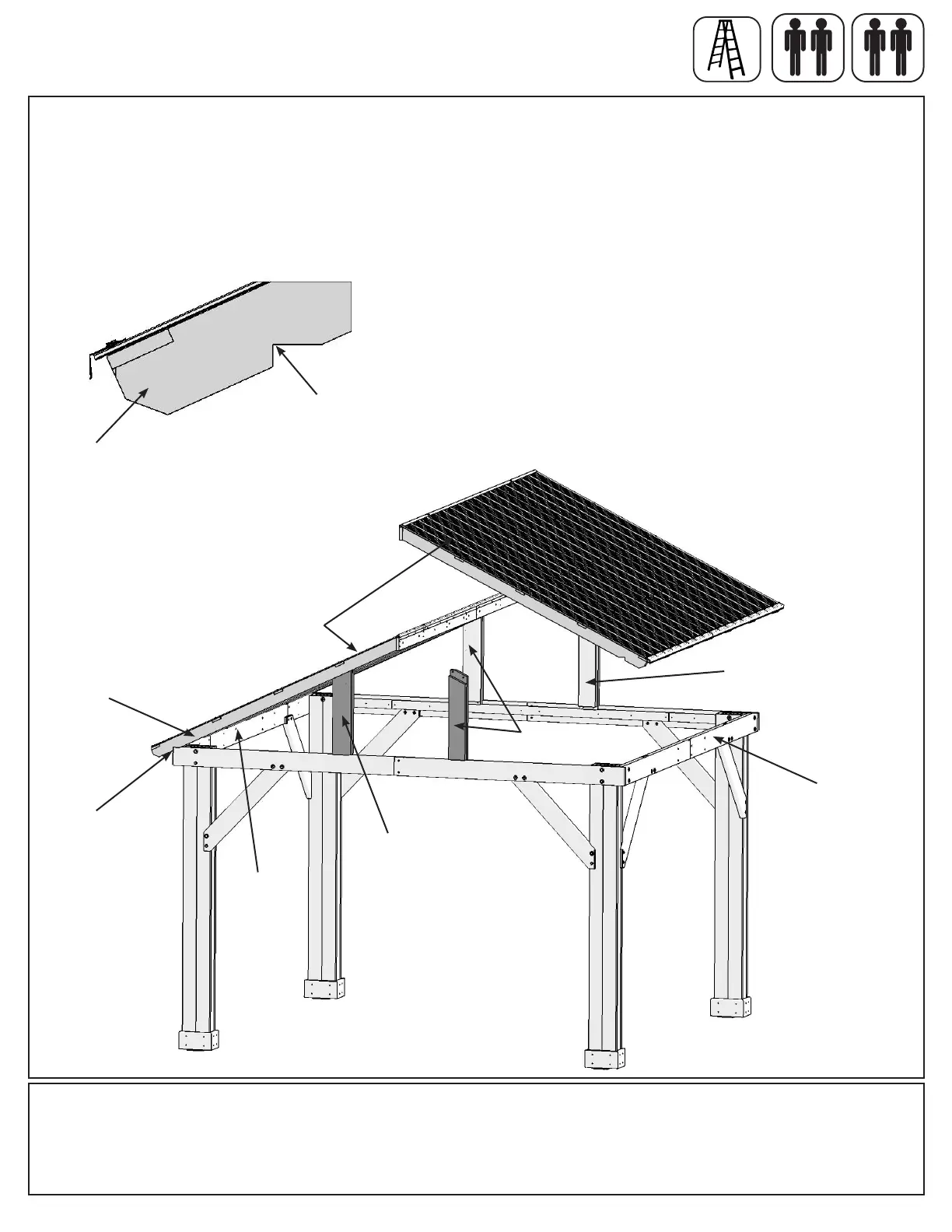

A: With four assemblers lift one Roof Panel Frame up and over the pavilion frame so it rests on (552) Gable
Upright Assembly Right and (553) Gable Upright Assembly Left. The notches in the rafters sit tight on the Side
Beam Assemblies. Lift the second Roof Panel Frame up and over the pavilion frame to the two Roof Panel Frames
are tight together and notches are tight to Side Beam Assemblies. One assembler must remain on a ladder to
hold Roof Panel Frame in place until secured. (g. 10.1 and 10.2)
Step 10: Attach Roof Panels to Frame
Part 1
Fig. 10.1
Roof
Panel
Frame
Fig. 10.2
Notch rests on Side
Beam Assembly
One assembler to
support Roof Panel
Frames at all times until
secure
Side Beam
Assembly
x 3
Flush and
Tight
(552) Gable Upright
Assembly Right
Rafter
Rafter
(553) Gable Upright
Assembly Left
(552) Gable Upright
Assembly Right
Side Beam
Assembly
Note: The Gable Upright
Assemblies may have
to be adjusted to make
roof sit properly.
