Step 10: Attach Roof Panels to Frame
Part 2

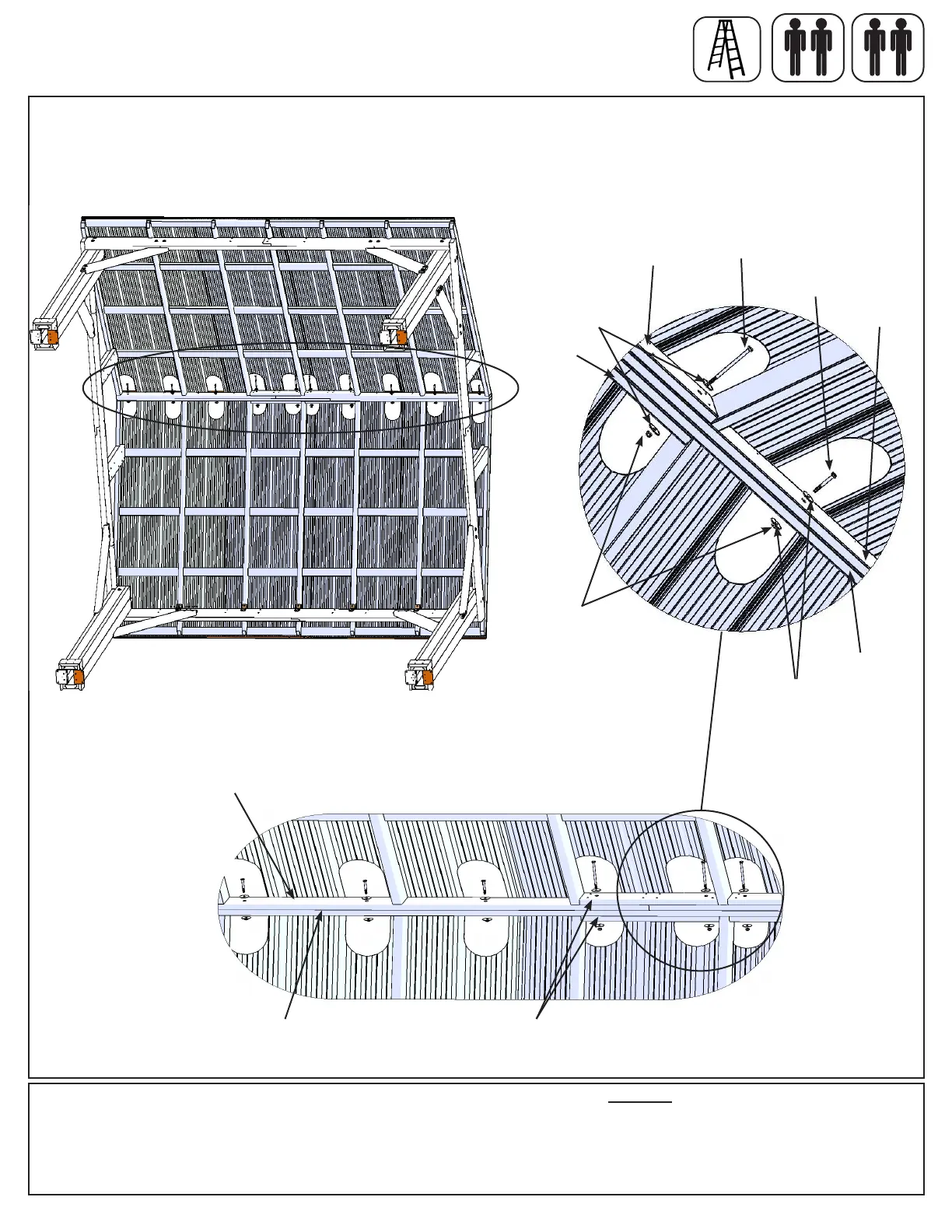

Fig. 10.5
B: From inside the assembly attach the two Roof Panel Frames together through each (545) Rafter Brace with
four 1/4 x 4-3/4” Hex Bolts (with two 1/4-5/16” large washer and one 1/4” lock nut) and through (541) Ridge Longs
and (542) Ridge Shorts with six 1/4 x 2-3/4” Hex Bolt (with two 1/4-5/16” large washer and one 1/4” lock nut). (g.
10.3, 10.4 and 10.5)
Fig. 10.4
Fig.10.3
x 3
Hardware
4 x 1/4 x 4-3/4” Hex Bolt
(1/4-5/16” large washer x 2, 1/4” lock nut)
6 x 1/4 x 2-3/4” Hex Bolt
(1/4-5/16” large washer x 2, 1/4” lock nut)
1/4” Lock
Nut
1/4 x 4-3/4”
Hex Bolt
(545) Rafter
Brace
(541) Ridge
Long
1/4 x 2-3/4”
Hex Bolt
(545)
Rafter
Brace
Section of Roof
Panel removed for
Clarity
(542) Ridge
Short
(545)
Rafter
Brace
(542) Ridge
Short
(541)
Ridge
Long
1/4-5/16”
Large Washer
1/4-5/16”
Large Washer
