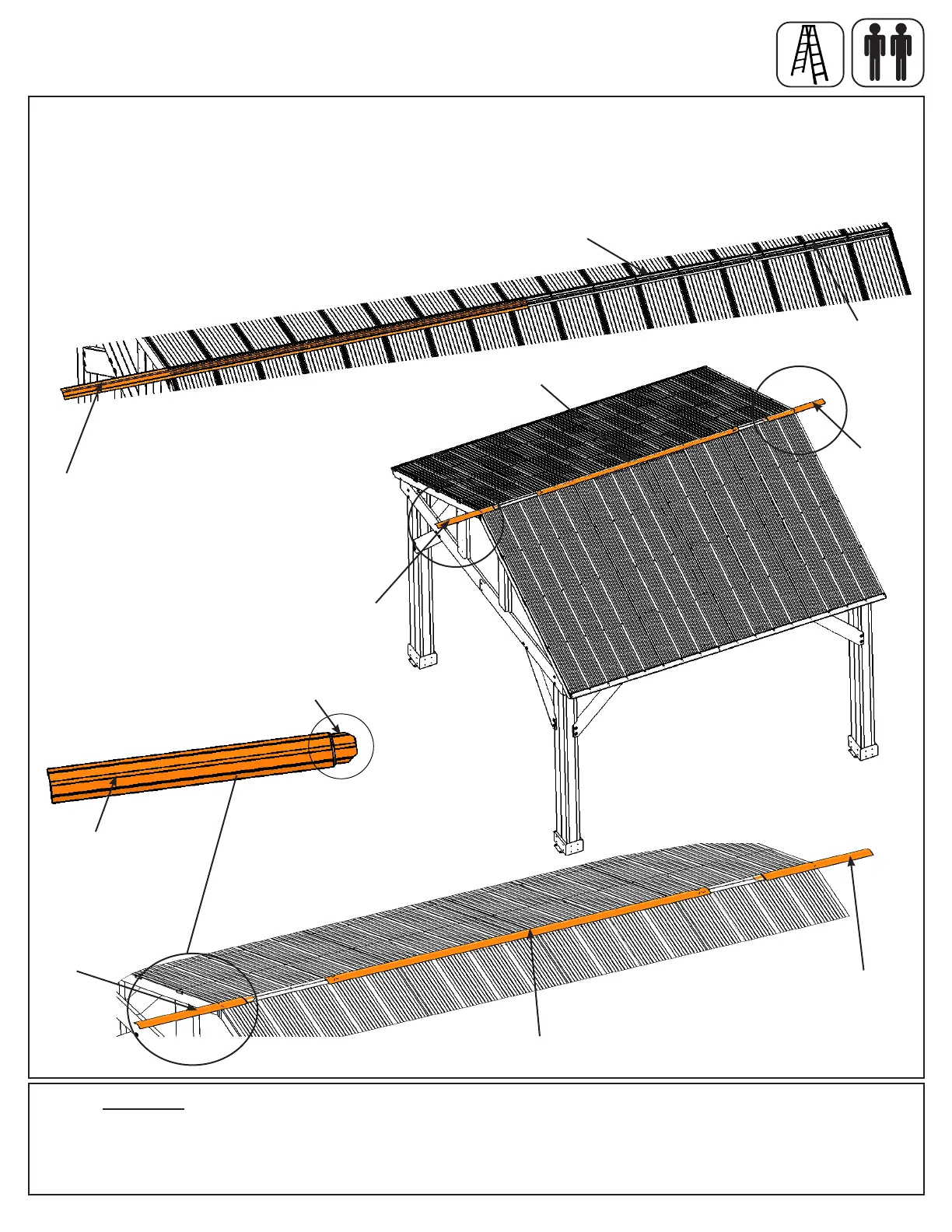

A: Slide Ridge Cap over the Ridge Clips towards the centre of the roof. (g. 11.1 and 11.2)
B: With the swaged end facing in slide one Ridge Cap Short at each end of the roof over the Ridge Clips. Use
the swaged end to help push the Ridge Cap to the centre of the roof. Each Ridge Cap Short should be ush to
the outside edge of the roof. (g. 11.1, 11.3 and 11.4)
Componets:
1 x Ridge Cap
2 x Ridge Cap Short
Ridge
Cap
Ridge
Clip
Ridge Cap
Short
Ridge Cap
Short
Ridge
Cap
Fig. 11.1
Fig. 11.2
Fig. 11.3
x 2
Swaged
End
Step 11: Attach Ridge Caps
Part 1
Fig. 11.4
Ridge
Clip Short
Ridge Cap
Short
Ridge Cap
Short
Ridge Cap
Short
Slide Ridge Cap Short to
centre Ridge Cap
Note: To help Ridge Cap
slide on easier use a
lubricant such as liquid soap.
Ridge
Cap
