Yardistry YM12949 - Step 12: Attach Fascia

37 support@yardistrystructures.com

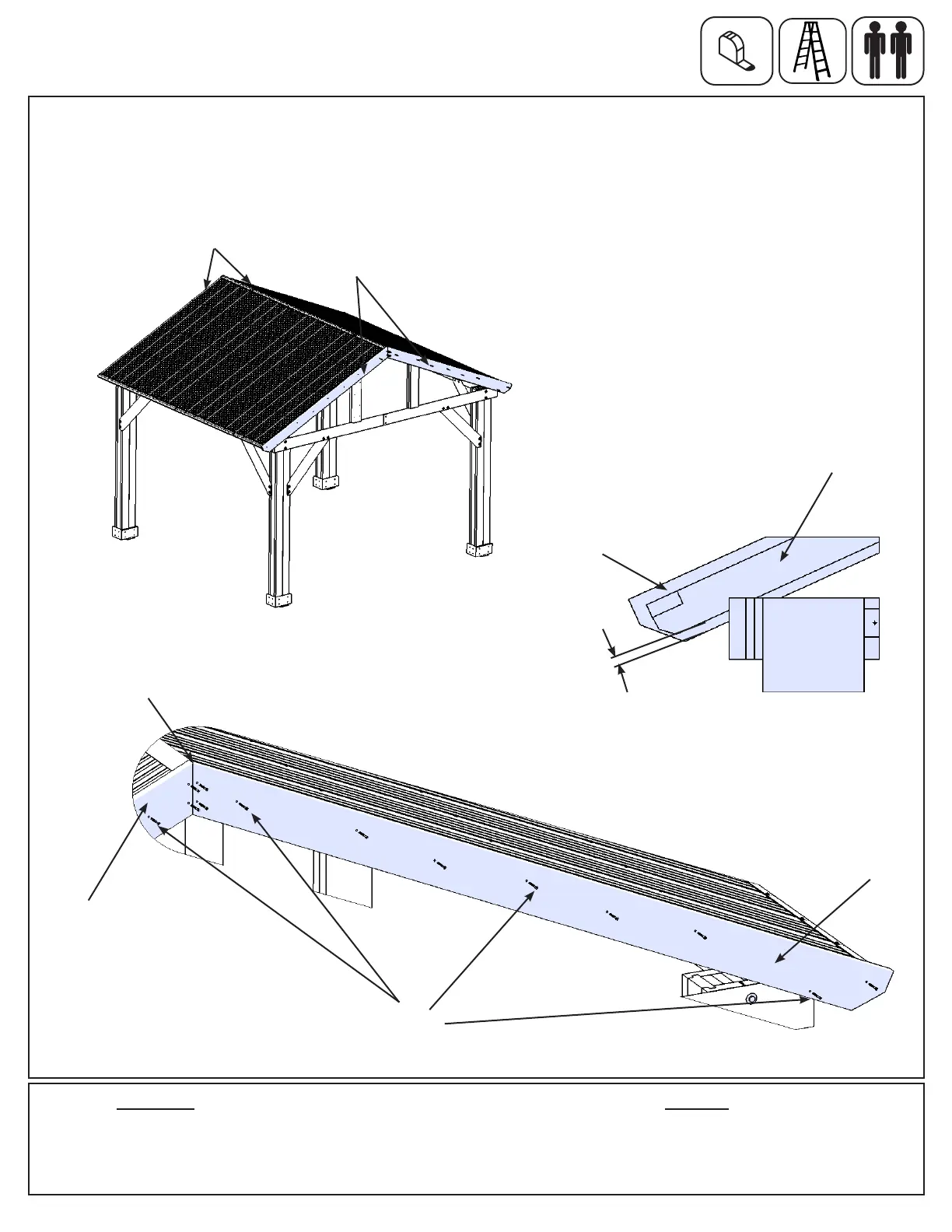

A: On one side of the assembly place two (550) Fascia against the outside rafters so the peaks meet in the
centre and they are tight together. Bottom of (550) Fascia to bottom of rafter should measure 1” all along each
(550) Fascia. Attach with ten #8 x 1-3/4” Wood Screws per (550) Fascia. (g. 12.1, 12.2 and 12.3)
B: Repeat for the other side of the assembly.
Fig. 12.1
Flush
and Tight
Hardware
40 x #8 x 1-3/4” Wood Screw
Step 12: Attach Fascia
Fig. 12.2
Wood Parts
4 x (550) Fascia 25.4 x 139.7 x 2344.7 mm (1 x 5-1/2 x 92-5/16”)
#8 x 1-3/4”
Wood Screws
(10 per Fascia)
(550)
Fascia
1”
x 2
Rafter
Fig. 12.3
Inside View
(550)
Fascia
(550)
Fascia
(550) Fascia
(550)
Fascia
