Step 5: Frame Assembly and Anchoring
Part 1

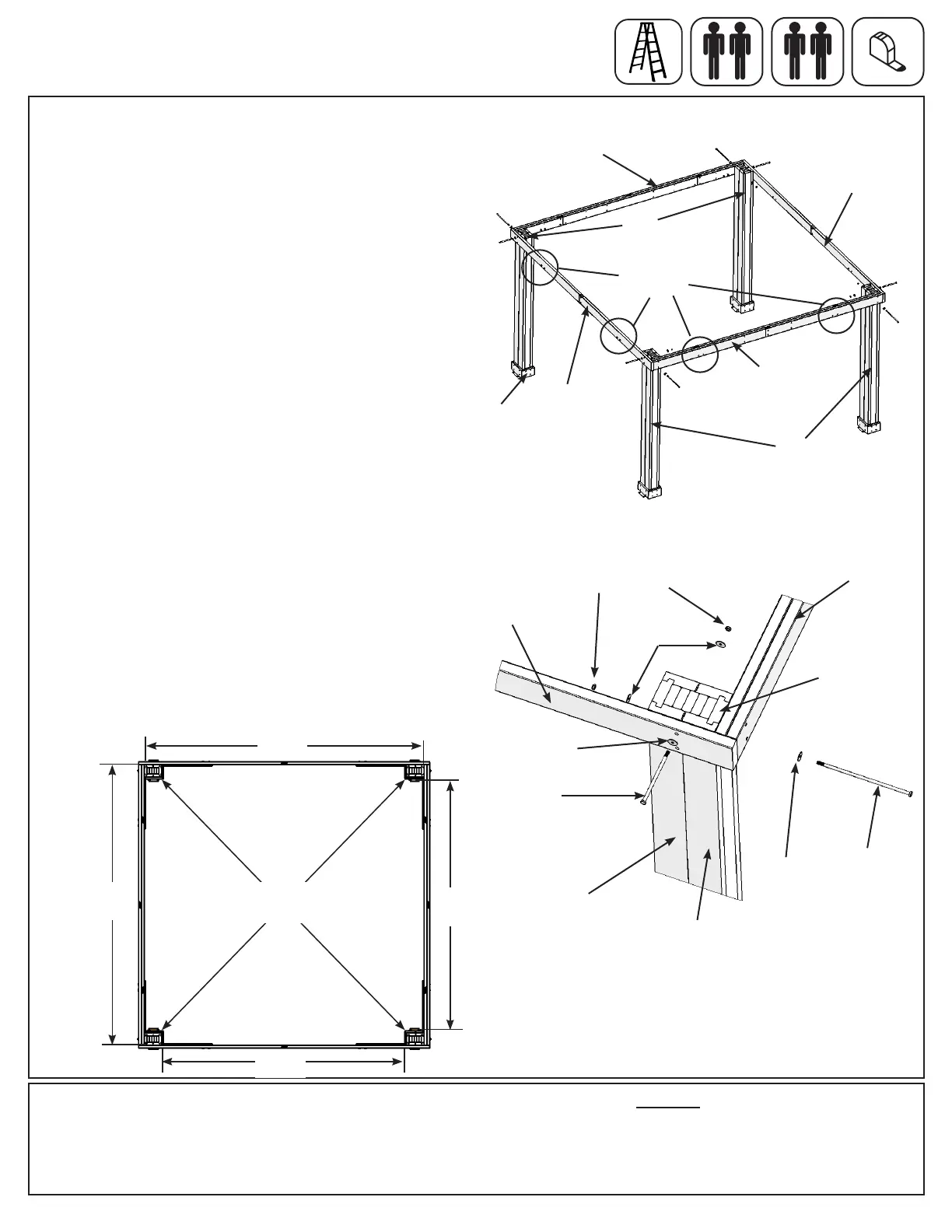

Fig. 5.1
A: Move your Post Assemblies to the nal location.
Make sure the ground is at and level before
continuing assembly.
B: With one person at each Post stand two
complete Post Assemblies. A third person places
one Side Beam Assembly against the outside of two
Posts, ush to the tops and outside corners. Notice
bolt hole orientation on the Side Beam Assembly
and the short side of the Post Assembly is along
the Side Beam Assembly. A fourth person attaches
Beam to Post with one 3/8 x 12-1/2” Hex Bolt (with
two 3/8” large washers and one 3/8” lock nut) per
Post. The distance from the outside of one Post
to the outside of the second Post should be 11’ 7”.
(g. 5.1, 5.2 and 5.3)
C: Place one Gable Beam Assembly against the
outside of two Posts, ush to the tops and outside
corners and tight to Side Beam Assembly. Notice
bolt hole orientation on the Gable Beam Assembly
and the long side of the Post Assembly is along the
Gable Beam Assembly. Attach Beam to Post with
one 3/8 x 8” Hex Bolt (with two 3/8” large washers
and one 3/8” lock nut) per Post. The distance from
the outside of one Post to the outside of the second
Post should be 12’. Continue until all four Beam
Assemblies are attached and the corners are tight
together. (g. 5.1 and 5.2) See g. 5.3 for accurate
positioning of Posts.
Fig. 5.2
Hardware
4 x 3/8 x 8” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)
4 x 3/8 x 12-1/2” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)
Fig. 5.3
3/8” Large
Washer
3/8 x 8”
Hex Bolt
3/8 x 12-1/2”
Hex Bolt
Post Assembly
Post
Assembly
Post
Assembly
Plinth
Gable Beam
Assembly
Side Beam
Assembly
3/8” Large
Washer
3/8” Lock Nut
Short
Side
3/8” Large
Washer
x 3
Side Beam
Assembly
Gable Beam
Assembly
Note hole
orientation (on
bottom)
Side Beam
Assembly
Gable Beam
Assembly
Long
Side
14 x 12 - Pavilion
10'-5"
10'-4"
Post To Post
Plinth to Plinth
11'-7.00"
12'-0"
14'-11"
Plinth to Plinth
Plinth to Plinth
14’ 11”
Post to Post
Post to Post
Post to Post
12’ 0”
11’ 7”
10’ 5”
10’ 4”
