Step 9: Attach Roof Panels
Part 4
G: Place Weather Seal on the inside of two Ridge Clip Short then place one Ridge Clip Short ush to each side
of Roof Panel Frame and 3-1/4” up from the bottom of (541) Ridge Long and (542) Ridge Short, make sure not to
compress Weather Seal. Attach with four #7 x 3/4” Wood Screws per Ridge Clip Short. Ridge Clip Shorts must
cover the Roof Panels. (g. 9.9, 9.10, 9.11 and 9.12)
H: Place Weather Seal on the inside of one Ridge Clip then place Ridge Clip in between both Ridge Clip Shorts.
3-3/8” up from the bottom of (541) Ridge Long and (542) Ridge Short. Ridge Clip must cover the Roof Panels. Do
not compress Weather Seal. Attach with seven #7 x 3/4” Wood Screws. (g. 9.9, 9.10, 9.11 and 9.12)
I: Repeat Steps E - H for the second Roof Panel Frame.

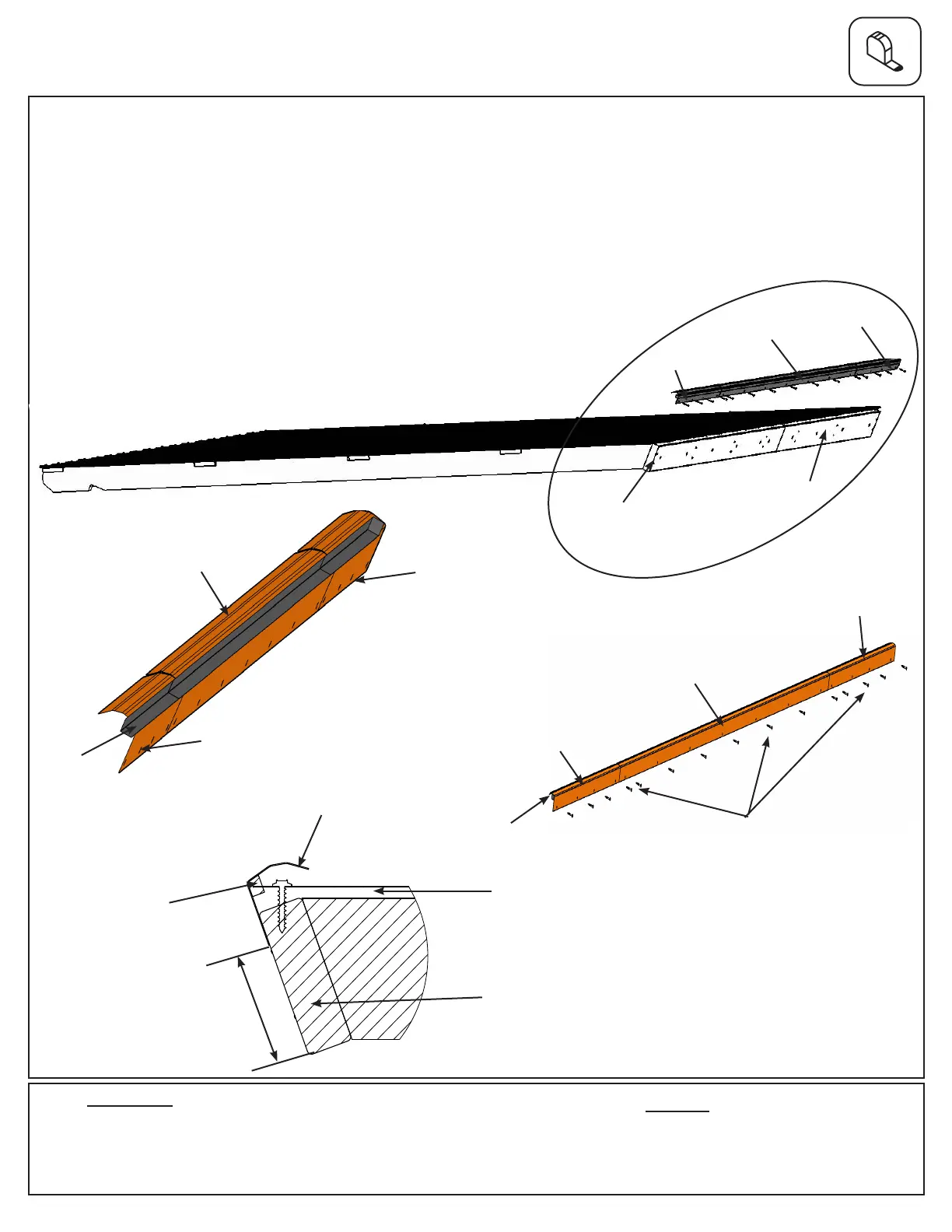

Fig. 9.9
Components
2 x Ridge Clip
4 x Ridge Clip Short
6 x Weather Seal
Hardware
30 x #7 x 3/4” Wood Screw
Fig. 9.10
Fig. 9.11
Weather
Seal
Weather
Seal
Ridge
Clip
#7x 3/4” Wood Screws
(15 per Panel Frame)
Ridge
Clip Short
Ridge
Clip Short
Ridge
Clip Short
Ridge
Clip Short
Ridge
Clip
(541) Ridge
Long
(542) Ridge
Short
Fig. 9.12
Ridge
Clip
Weather
Seal
Roof
Panel
3-3/8”
Ridge
Clip
Ridge
Clip Short
Ridge
Clip Short
(541) Ridge
Long / (542)
Ridge Short
