Step 9: Attach Roof Panels
Part 3

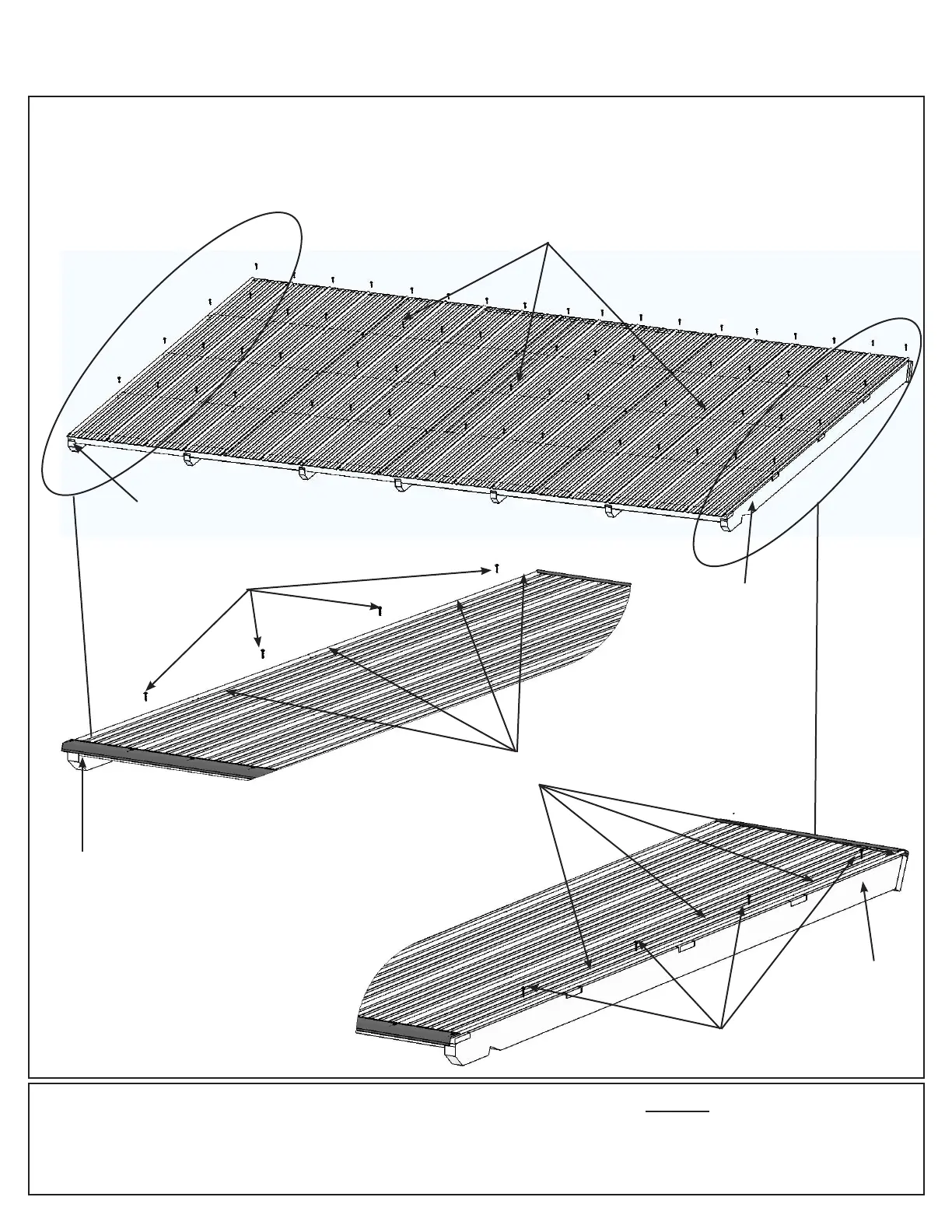

F: Attach the three Main Panels and one Right Side Panel to one Roof Panel Frame using 63 #8 x 1” Hex
Roong Screws as shown in g. 9.8. On the outside (540) Rafter Bs, in between the screw holes, four additonal
screws are to be inserted through the panels in the spaces indicated below (see A and B). Be sure not to
overtighten screws.
#8 x 1” Hex Roong Screws
(71 per Panel Frame)
Hardware
142 x #8 x 1” Hex Roong Screw
Screws in pre-existing
screw holes
Drill Screws through
panel at these places
A
(540)
Rafter B
Drill Screws through
panel at these places
B
(540)
Rafter B
(540)
Rafter B
(540) Rafter B
