Components
2 x Roof Edge Left
2 x Roof Edge Right
Step 9: Attach Roof Panels
Part 2

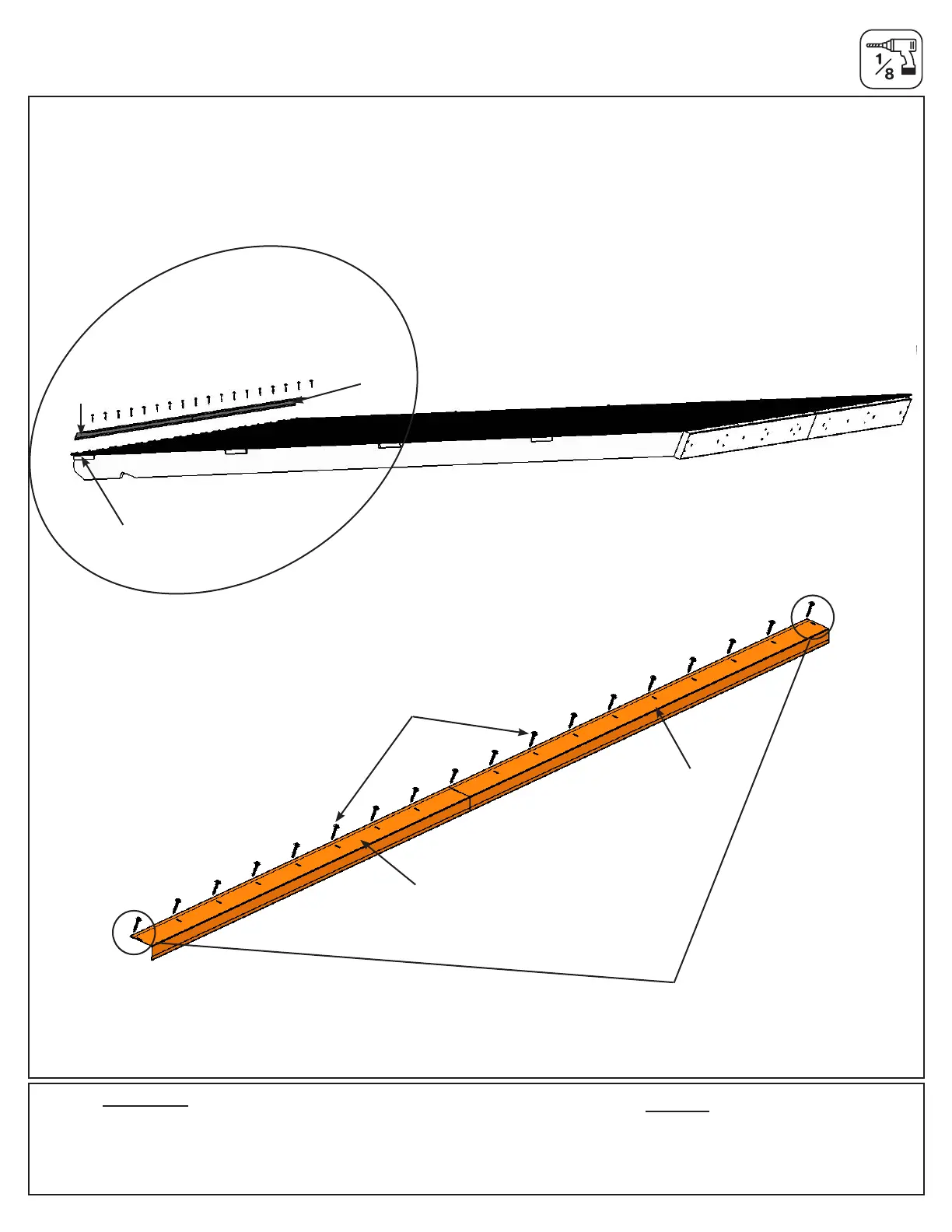

E: Place one Roof Edge Left and one Roof Edge Right on the bottom of each Roof Panel Frame so they meet
tight and the ends are ush with the outside ends of (544) Short Strap and (543) Long Strap. Predrill the two
end holes with a 1/8” drill bit then attach both Roof Edges with 18 #8 x 1” Hex Roong Screws. (g. 9.6 and 9.7)
#8 x 1” Hex Roong Screws
(18 per Panel Frame)
Hardware
36 x #8 x 1” Hex Roong Screw
Roof
Edge Left
Roof Edge
Right
Roof
Edge Left
Roof Edge
Right
Strap
Pre-drill for these
2 screws
