YASKAWA A1000 Installation Manual

5 Installation Procedure
YASKAWA ELECTRIC TOBP C730600 37B 1000-Series Option PG-X3 Installation Manual 15
3. Route the option wiring.
Depending on the drive model, some drives may require routing the wiring through
the side of the front cover to the outside. In these cases, cut out the perforated
openings on the left side of the drive front cover as shown in Figure 5 (A) and leave
no sharp edges to damage wiring.
Route the wiring inside the enclosure as shown in Figure 5 (B) for drives that do not
require routing through the front cover.
For more information, refer to the Peripheral Devices & Options section of Yaskawa
AC Drive Technical Manual in your application.

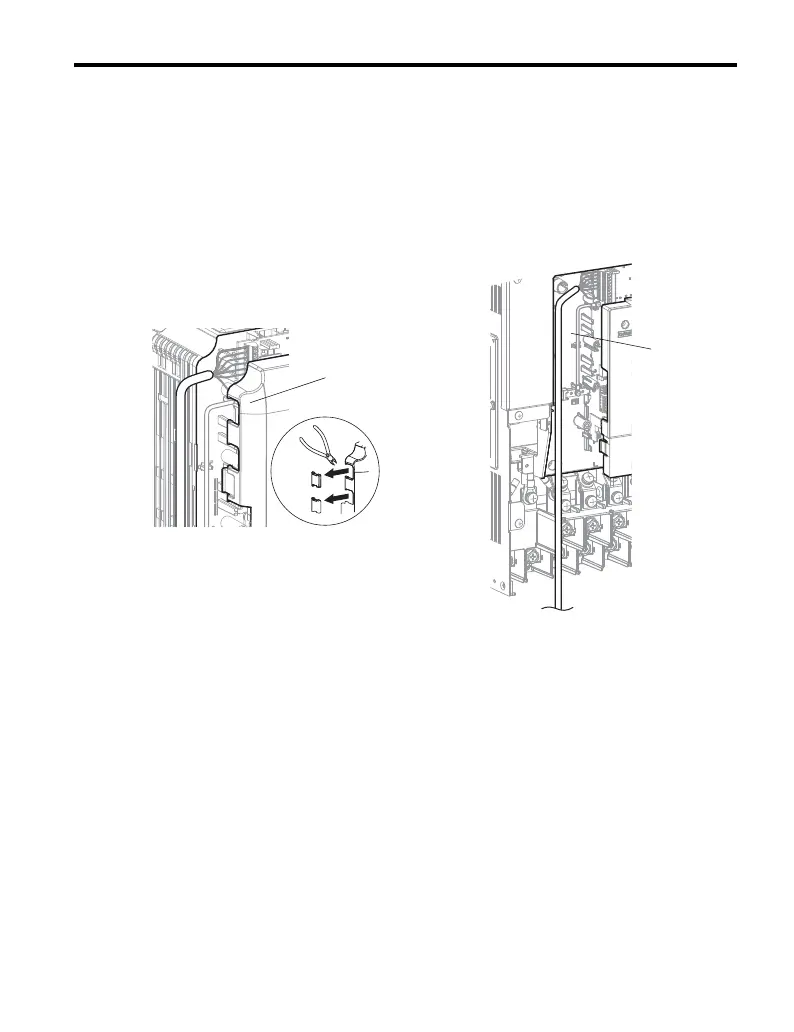

Figure 5
Figure 5 Wire Routing Examples
A – Route wires through the openings
provided on the left side of the
front cover.
<1>
<1> The drive will not meet NEMA Type 1 requirements if wiring is exposed outside the enclosure.
B – Use the open space provided
inside the drive to route option
wiring.
B
A

YASKAWA A1000 Specifications

General

Type	AC Drive
Series	A1000
Input Voltage	200-240V, 380-480V
Frequency Range	0-400 Hz
Horsepower Range	0.5 to 1000 HP
Power Range	0.4 to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Braking	Dynamic Braking
Communication	Modbus
Safety	Safe Torque Off (STO)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Operating Temperature	-10 to +50°C
Storage Temperature	-20 to 60°C
Humidity	5 to 95% RH (non-condensing)
Enclosure	IP20
