40
4.3 TEST RUN
(1) Digital Operator Display at Power ON
When the system is ready for operation, turn ON the power supply. Verify that the inverter
powers up properly. If any problems are found, turn OFF the power supply immediately.
The digital operator display illuminates as shown below when turning the power supply ON.
Refer tp Section 5 for operation method of digital operator.
Operation Indicator LED :
STOP LED ON
Display Section :
Displays frequency reference
(corresponding to analog reference value)
Mode Indicator LED :
DRIVE/REMOTE (SEQ, REF) LED ON
LOCAL
REMOTE
DRIVE
DIGITAL OPERATOR
JVOP-132
DSPL
DATA
ENTER
JOG
FWD
REV
RESET
RUN STOP
DRIVE FWD REV REMOTE
SEQ REF
PRGM

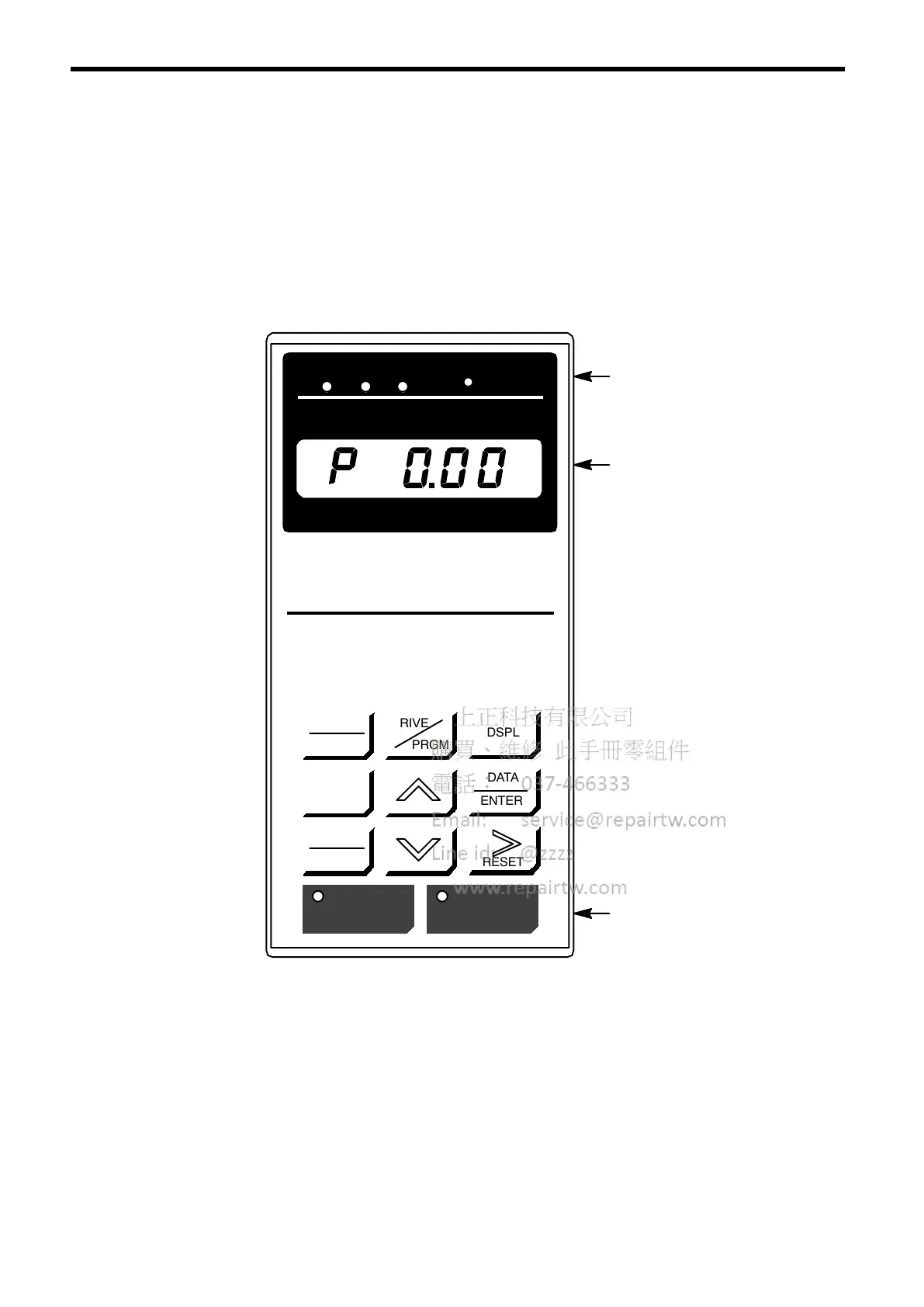

Fig.
19
Digital Operator Display at Power ON
To Next Page
