YASKAWA CIMR-SSA Series - APPENDIX 2 DIMENSIONS (mm)

74

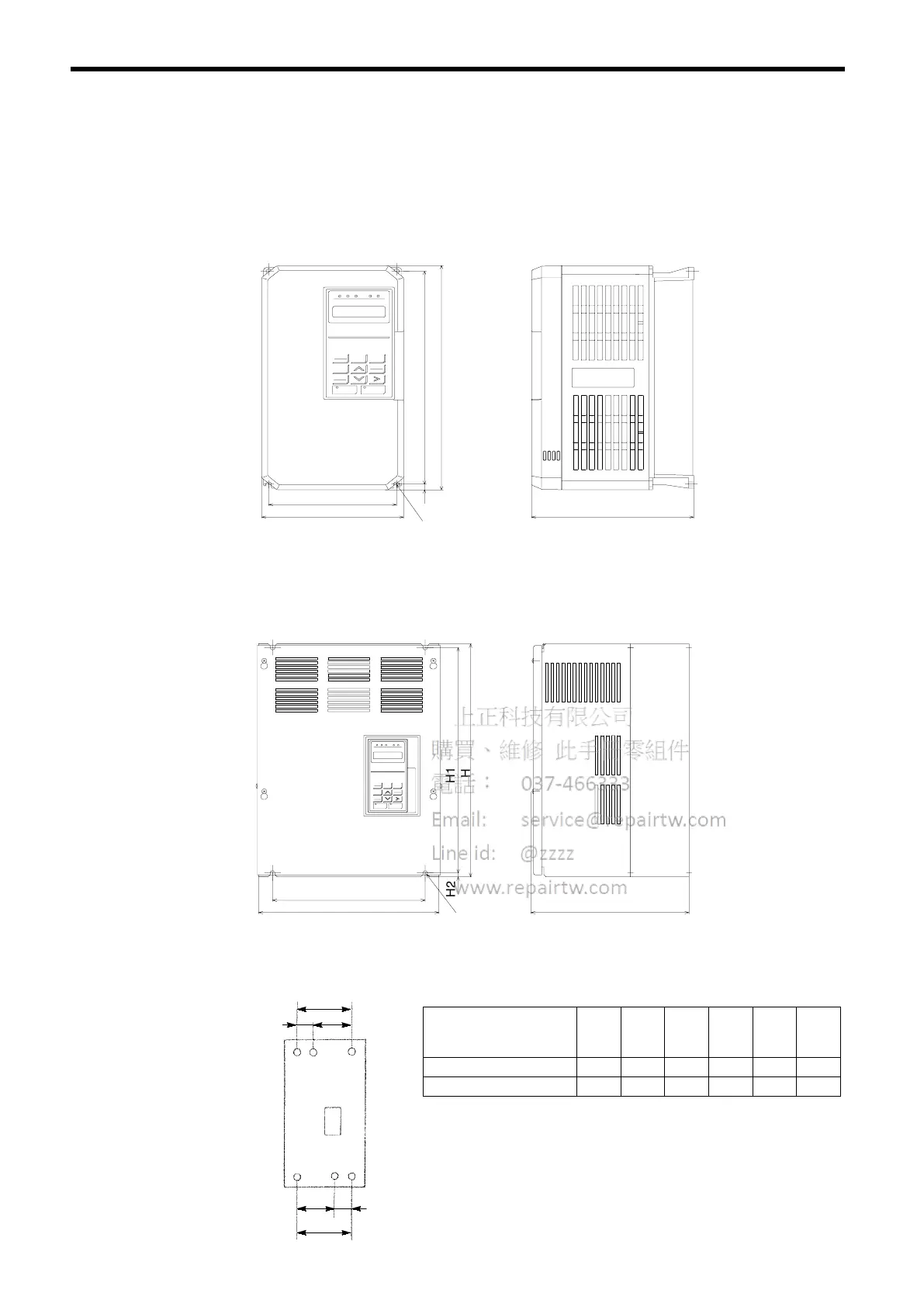

APPENDIX 2 DIMENSIONS (mm)
200 V/400 V Class Inverters of 15 kW and Lower
The following diagram shows a 200 V class, 1.5 kW inverter. Remove the top and bottom covers
when mounting 200 V/400 V class inverters of 15 kW or lower in an enclosure.
D
H1
H
W1
W
4-d
H2
200 V/400 V Class Inverters of 18.5 kW and Higher
The following diagram shows a 200 V class, 18.5 kW inverter.
D
H1
H
W1
W
4-d
H2
Mounting Dimensions for 400 V Class Inverters of 220 to 300 kW
Max. Applicable Motor
Output
[kW]
W1 W2 W3 W4 W5 W6
220
750 440 310 850 285 565
300
750 440 310 873 298 575
W1
W4
W5
W6
W2 W3
