Drive mode and program mode can be changed by the digital operator even during operation.
Even if the mode is changed to the program mode to set/read constants during operation, the
inverter continues operation. The inverter does not operate even if the run command is input,
when the program mode is selected.
When the constants are set/read during operation, depress [DRIVE/PRGM] key and then
[DATA/ENTER] key to return to the speed reference value display (the same as power-ON
display).
5.3 DRIVE MODE
The inverter can operate in this mode. Run data display and fault display are possible.
Each time the display selection key is depressed, the item to be monitored is changed. At an occur-
rence of a fault, the digital operator enters the fault display mode automatically. The display mode
returns to the one selected previously by depressing [> RESET] key.

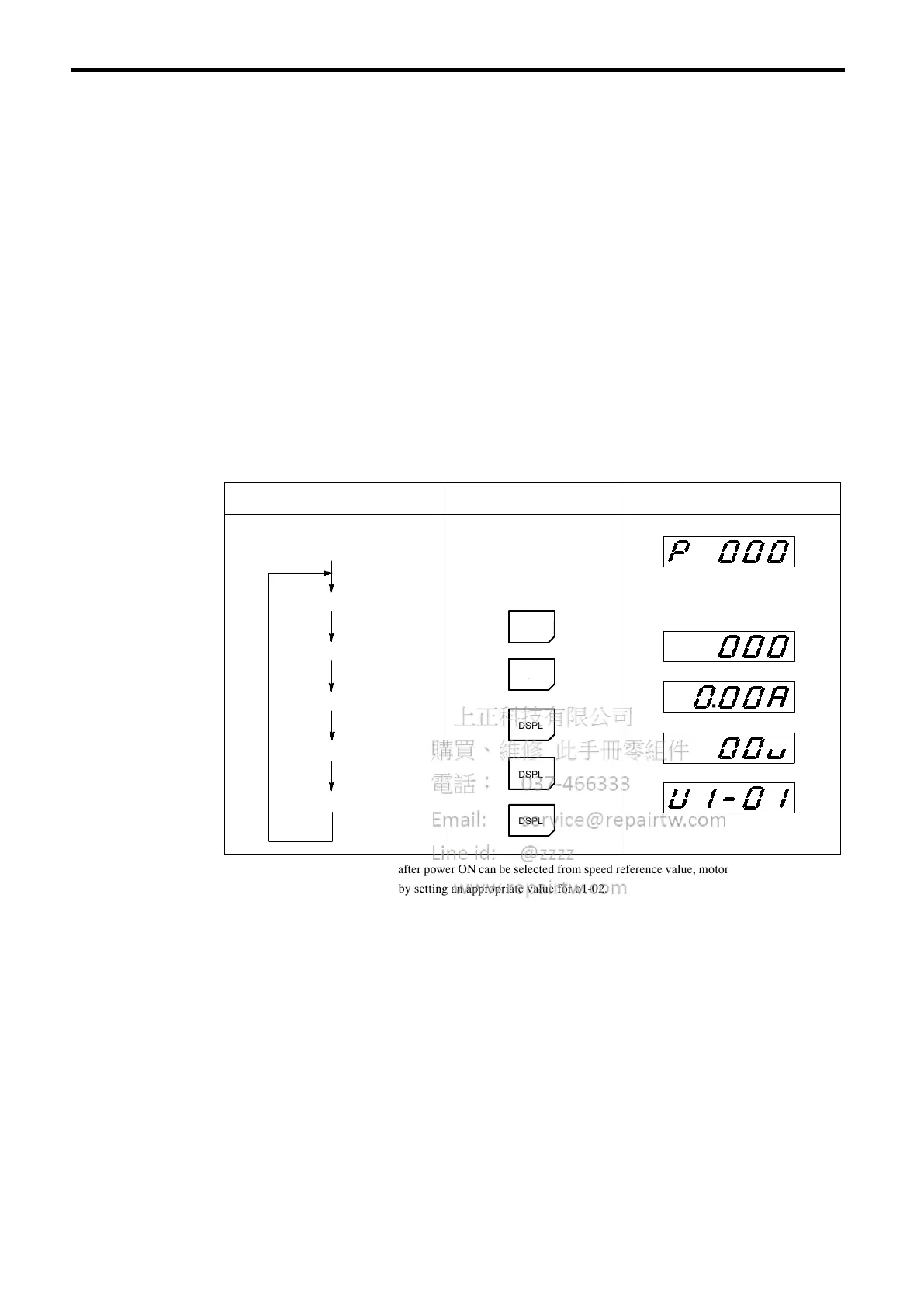

Table 21 Typical Operation in Drive Mode
Description Key Sequence Digital Operator Display
Power ON
*1
G
Speed Reference
*2
Motor Speed
DSPL
DSPL
G
Output Current
DSPL
G
Output Voltage
*3
DSPL
*5
G
U Constants
*4
DSPL
*1 The first item to be displayed after power ON can be selected from speed reference value, motor speed, output current,
and display item set in o1-01 by setting an appropriate value for o1-02.
*2 A speed reference value can be set by using [∧], [∨]or[> RESET] key.
*3 Instead of the output voltage, item to be displayed from U1 constant can be selected by setting o1-01.
*4 Select the U constant to be displayed by using [∧], [∨]or[> RESET] ke y.
*5 The U constant selected previously is displayed.
To Next Page
