YASKAWA CIMR-SSA Series User Manual

4 OPERATION
47

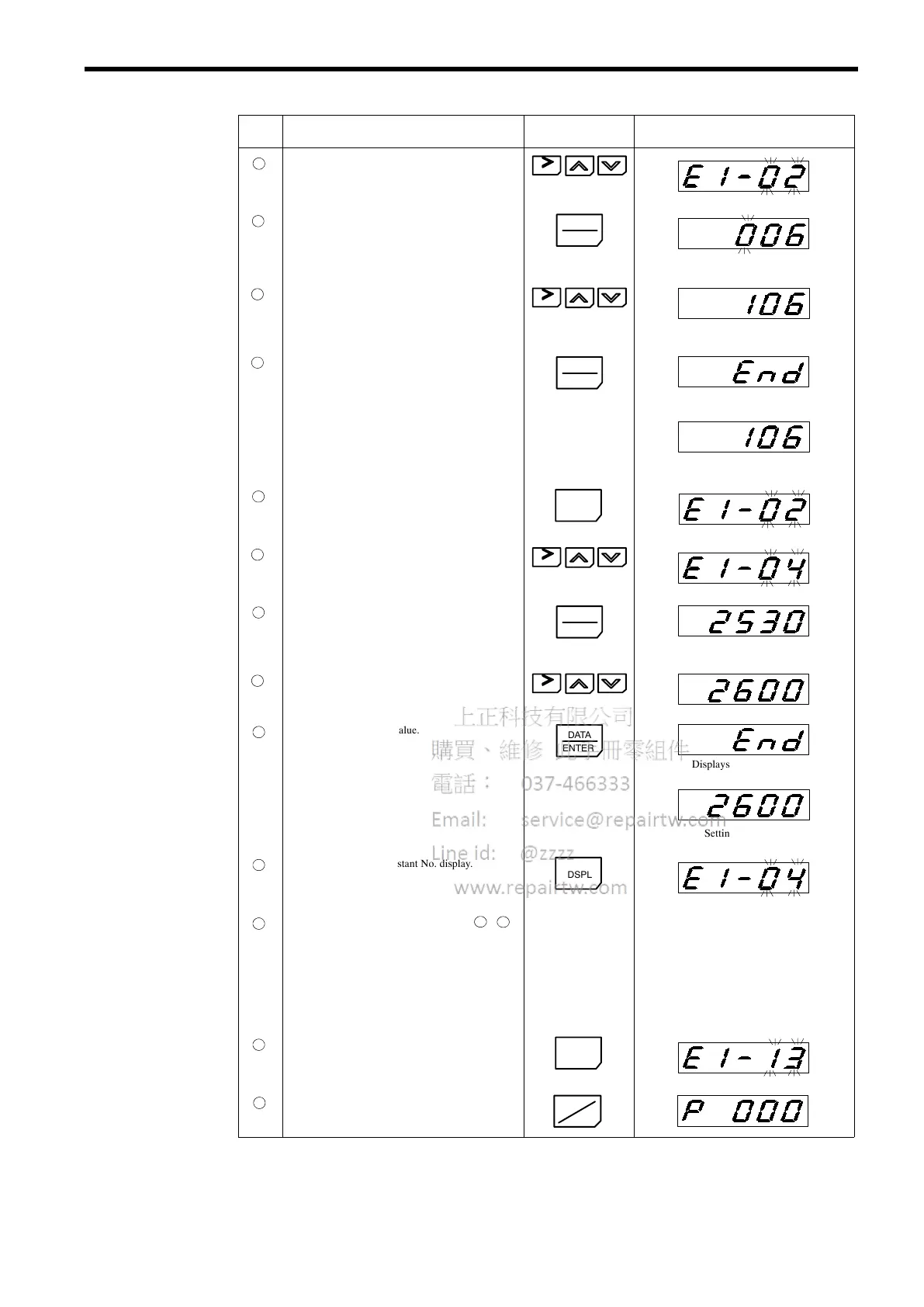

Step
Description Key Sequence Digital Operator Display
13
Motor capacity selection setting
• Move to motor capacity selection (E1-02).
RESET
14
• Verify the set value of motor capacity
selection.
DATA
ENTER
(Example: 200V 1750 min
-1
7.5kW)
15
• Set correct value.
(Refer to Table A-6 for the set value of
motor capacity selection.)
RESET
(Example: 200V 1450 min
-1
7.5kW)
16
• Write-in the value.
DATA
ENTER
Displays for 0.5 seconds.
Setting completed.
17
• Return to constant No. display.
DSPL
18
Motor rated current setting
• Move to motor rated current (E1-04).
RESET
19
• Verify the set value.
DATA
ENTER
G
(Example: 200V 1450 min
-1
7.5kW)
20
• Set rated current according to value on
motor nameplate.
RESET
G
21
• Write-in the value.
DATA
ENTER
Displays for 0.5 seconds.
Setting completed.
G
22
• Return to constant No. display.
DSPL
23
• Repeat the same procedures for
18
to
21
as
for E1-09, 10, 11, 13.
(Add C2-12 setting in open loop vector
control.)
Furthermore, when using a special motor,
set motor base min
-1
(E1-07) and motor
maximum min
-1
(E1-06).
GGG
GGG
24
• Return to constant No. display.
DSPL
25
Return to drive mode.
DRIVE
PRGM
G
