Electrical Installation 2 - 37
PG-X2
The terminal specifications for the PG-X2 are given in Table 2.21.
Wiring the PG-X2

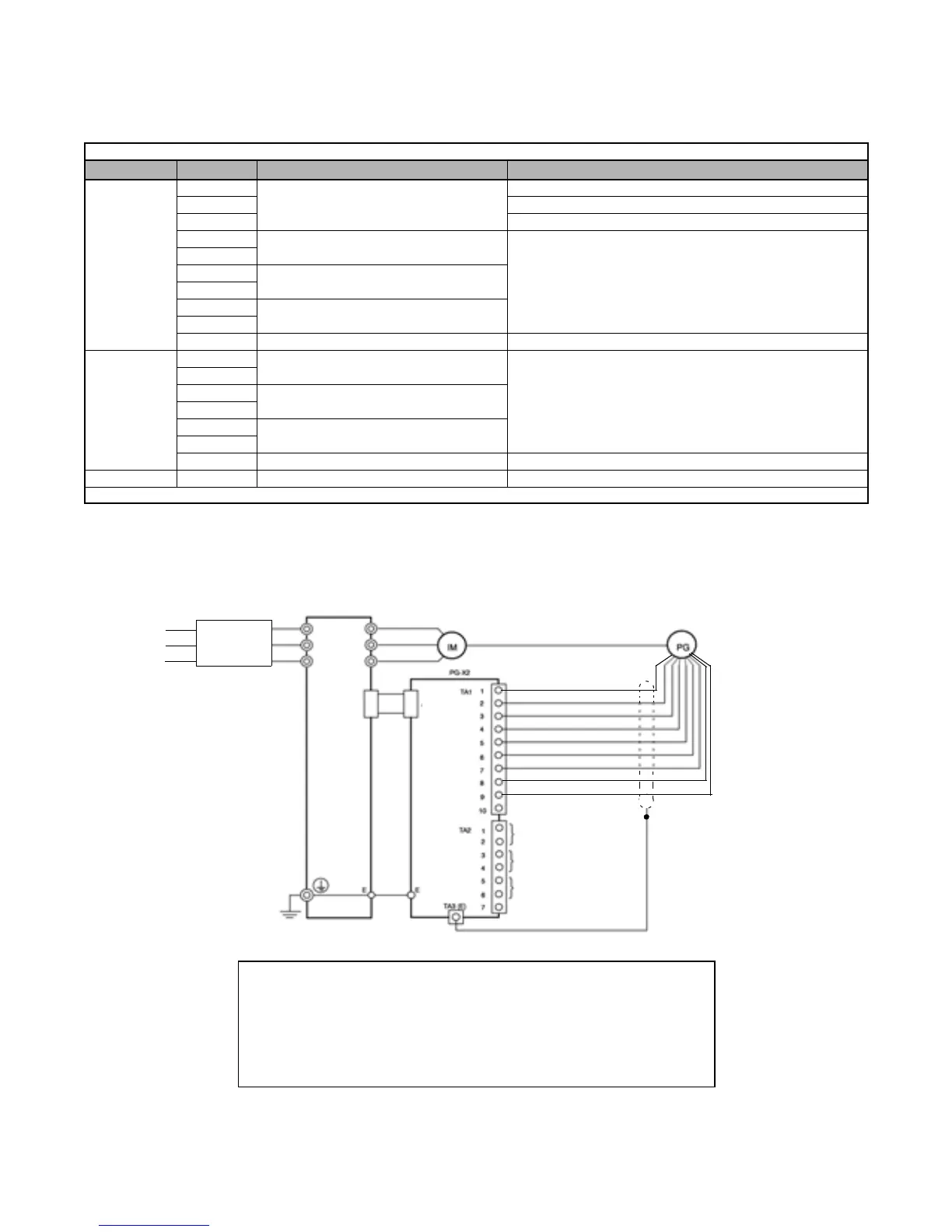

Wiring examples are provided in Fig 2.22 for the PG-X2.
Fig 2.22 PG-X2 Wiring
Table 2.21 PG-X2 Terminal Specifications
Terminal No. Contents Specifications
TA1
1
Power supply for pulse generator
12Vdc (±5%), 200mA max.*
2 0Vdc (GND for power supply)
3 5Vdc (±5%), 200mA max.*
4
A-phase input terminals
Line driver input (RS-422 level)
Maximum response frequency: 300kHz
5
6
B-phase input terminals
7
8
Z-phase input terminals
9
10 Common terminal 0Vdc (GND for power supply)
TA2
1
A-phase output terminals
Line driver output (RS-422 level)
2
3
B-phase output terminals
4
5
Z-phase output terminals
6
7 Control circuit common Isolated control circuit GND
TA3 (E) Shield connection terminal -
* 5Vdc and 12Vdc cannot be used at the same time.
Drive
Power supply +12Vdc
Power supply +5Vdc
A-phase pulse input (+)
A-phase pulse input (-)
B-phase pulse input (+)
B-phase pulse input (-)
A-phase pulse monitor output
B-phase pulse monitor output
Z-phase pulse monitor output
R/L1
S/L2
U/T1
V/T2
W/T3
T/L3
4CN
4CN
R/L1
S/L2
T/L3
Branch
Circuit
Protection
Power supply 0Vdc
Z-phase pulse input (+)
Z-phase pulse input (-)
•Shielded twisted-pair wires must be used for signal lines.
•Do not use the PG-X2's power supply for anything other than the pulse generator (encoder).
Using it for another purpose can cause malfunctions due to noise.
•The length of the pulse generator's wiring must not be more than 100 meters.
•The direction of rotation of the PG can be set in parameter F1-05 (PG Rotation).
The factory preset is for motor forward rotation, A-phase advancement.
