YASKAWA FP65U T Series User Manual

13 European Standards
YASKAWA TOEPC7106171FD FP605 DRIVE INSTALLATION & PRIMARY OPERATION 101

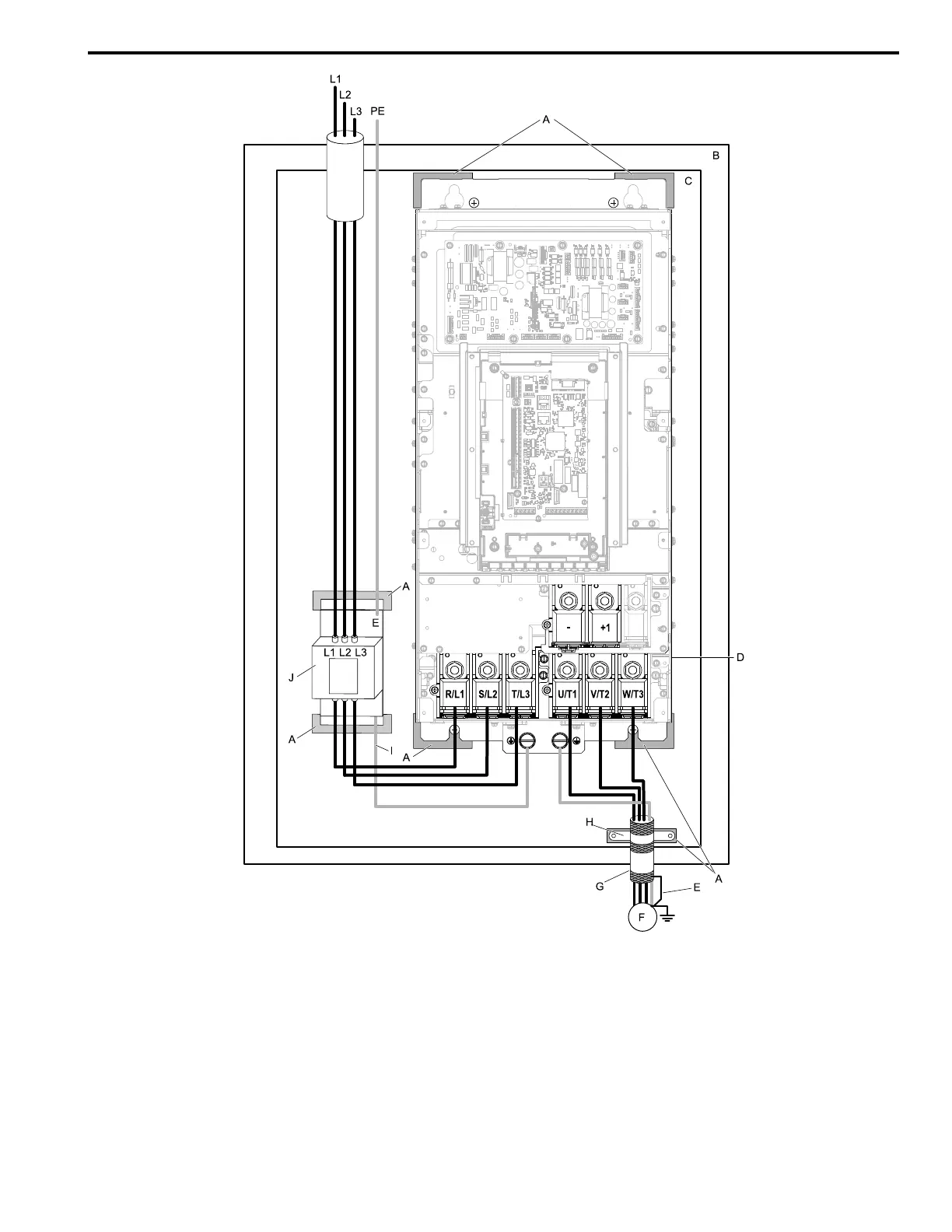

A - Grounding surface (Remove any paint or sealant.)
B - Enclosure panel
C - Metal plate
D - Drive
E - Ground the shield.
F - Motor
G - Motor cable (Braided shield cable: 10 m (32.8 ft)
maximum)
H - Cable clamp
I - Grounding wire
J - EMC noise filter
Figure 13.14 EMC Noise Filter and Drive Installation Procedure

YASKAWA FP65U T Series Specifications

General

Brand	YASKAWA
Model	FP65U T Series
Category	DC Drives
Language	English
