13 European Standards
YASKAWA TOEPC7106171FD FP605 DRIVE INSTALLATION & PRIMARY OPERATION 93
Drive Model
GFCI Model
Manufacturer: Mitsubishi Electric
Rated Current
A
Rated Leakage Current
mA
4180 NV400-SW 300 500
4240 NV400-SW 350 500
4302 NV400-SW 400 500
4361 NV630-SW 500 500
4414 NV630-SW 630 500
4477 NV630-SW 630 500
4515 NV800-SEW 800 500
4590 NV800-SEW 800 500
4720 NV800-SEW 800 500
◆ EMC Directive
Drives with built-in EMC filters were tested in accordance with European standard IEC/EN 61800-3, and comply
with the EMC Directive.
■ Install a Drive to Conform to the EMC Directive
Use this procedure to install drives that comply with the EMC Directive when the drive is a single unit or installed in
a larger device.
1. Install the drive on a grounded metal plate.
2. Wire the drive and motor.
3. Ground the wire shielding on the drive side and motor side.
A - Drive
B - 100 m (328 ft) maximum
C - Motor
D - Metal conduit
E - Grounding wire

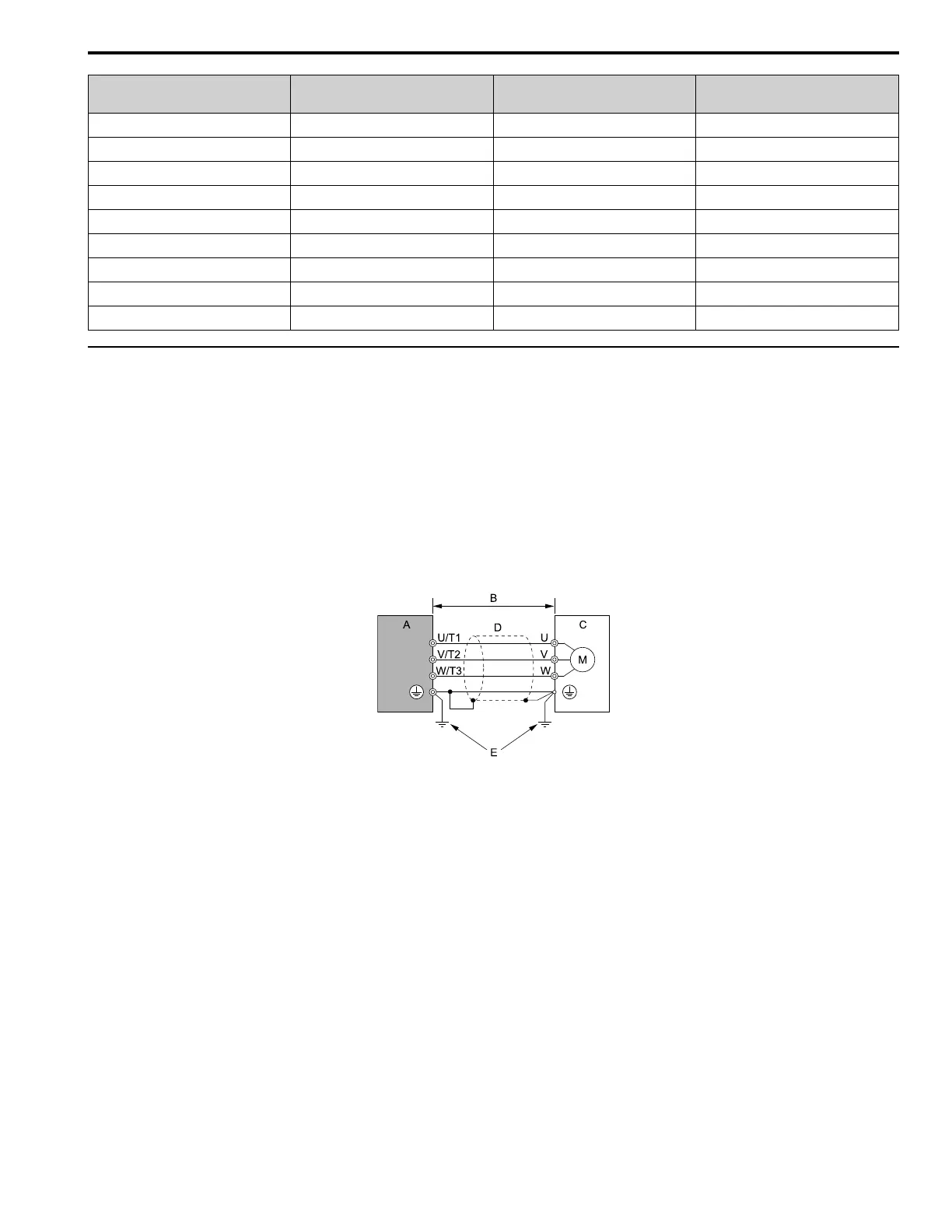

Figure 13.3 Wiring the Drive and Motor
Note:
• Use a braided shield cable for the drive and motor wiring or put the wires through a metal conduit.
• The maximum wiring length between the drive and motor is 100 m (328 ft). Keep the wire as short as possible.
• Keep the grounding wire as short as possible.
4. Use a cable clamp to ground the motor cable to the metal plate.
Note:
Make sure that the protective ground wire complies with technical specifications and local safety standards.
