13 European Standards
94 YASKAWA TOEPC7106171FD FP605 DRIVE INSTALLATION & PRIMARY OPERATION

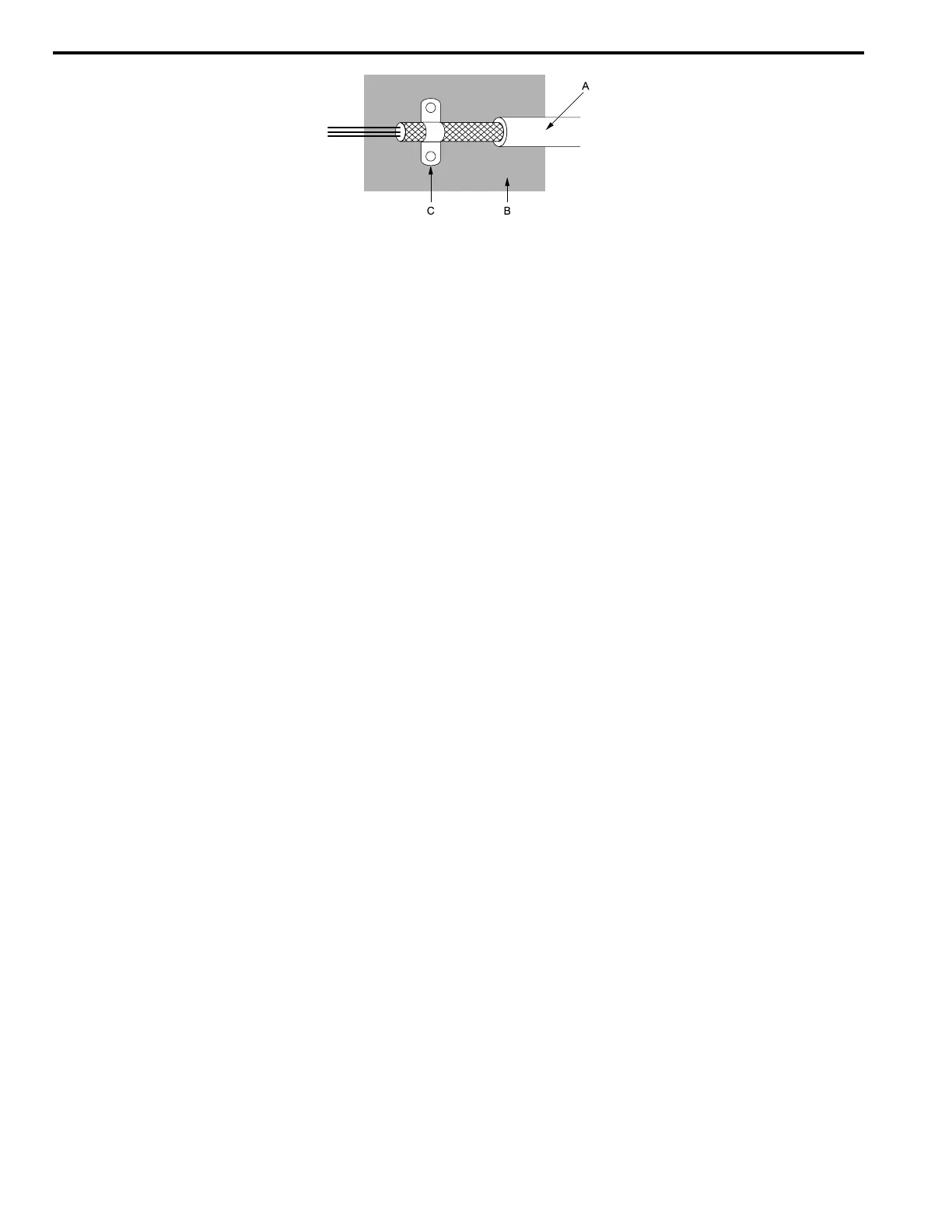

A - Braided shield cable
B - Metal plate
C - Cable clamp (conductive)
Figure 13.4 Ground the shield
