8 Keypad: Names and Functions

YASKAWA TOEPC7106171FD FP605 DRIVE INSTALLATION & PRIMARY OPERATION 53

◆ Keypad Mode and Menu Displays

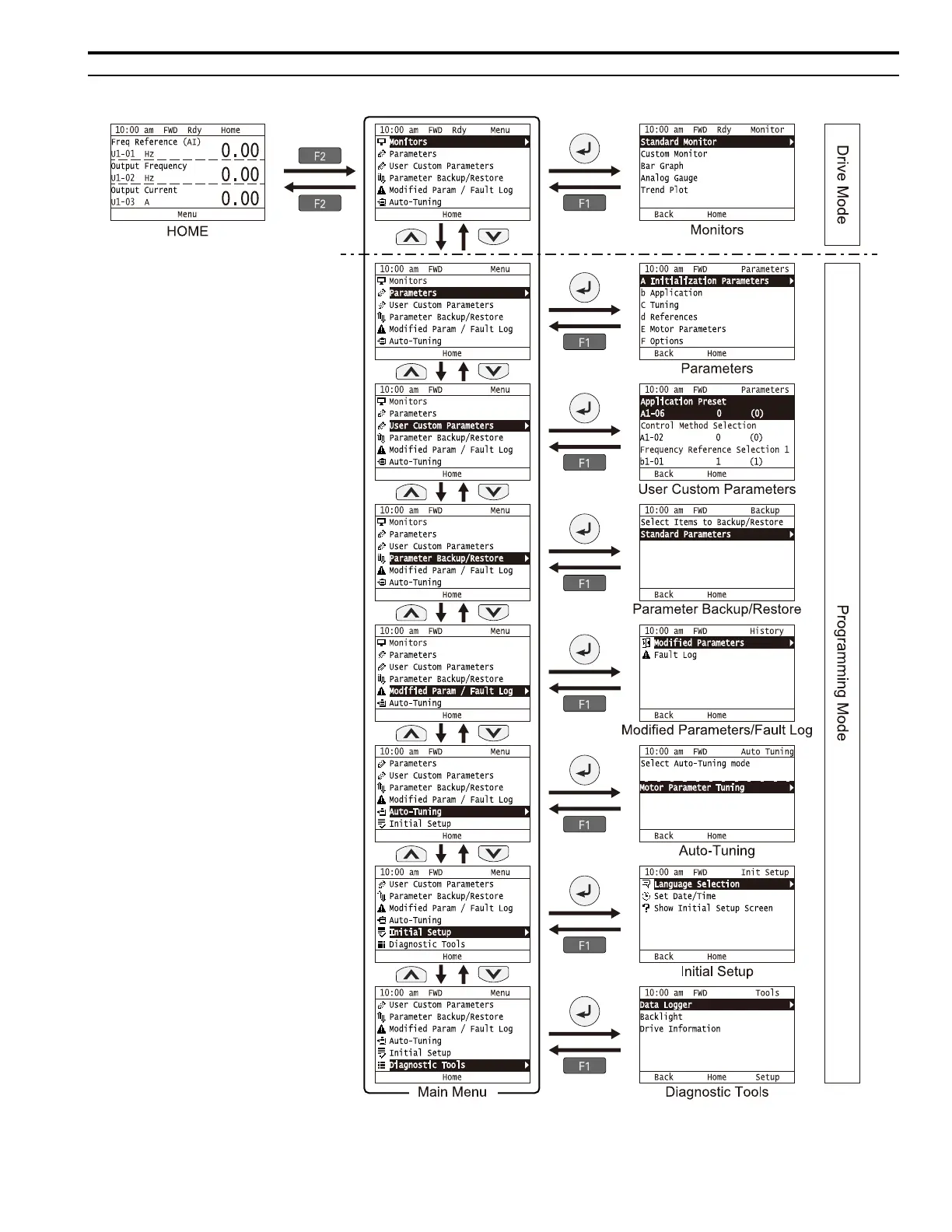

Figure 8.2 Keypad Functions and Display Levels
