YASKAWA FP65U T Series User Manual

6 Mechanical Installation
22 YASKAWA TOEPC7106171FD FP605 DRIVE INSTALLATION & PRIMARY OPERATION

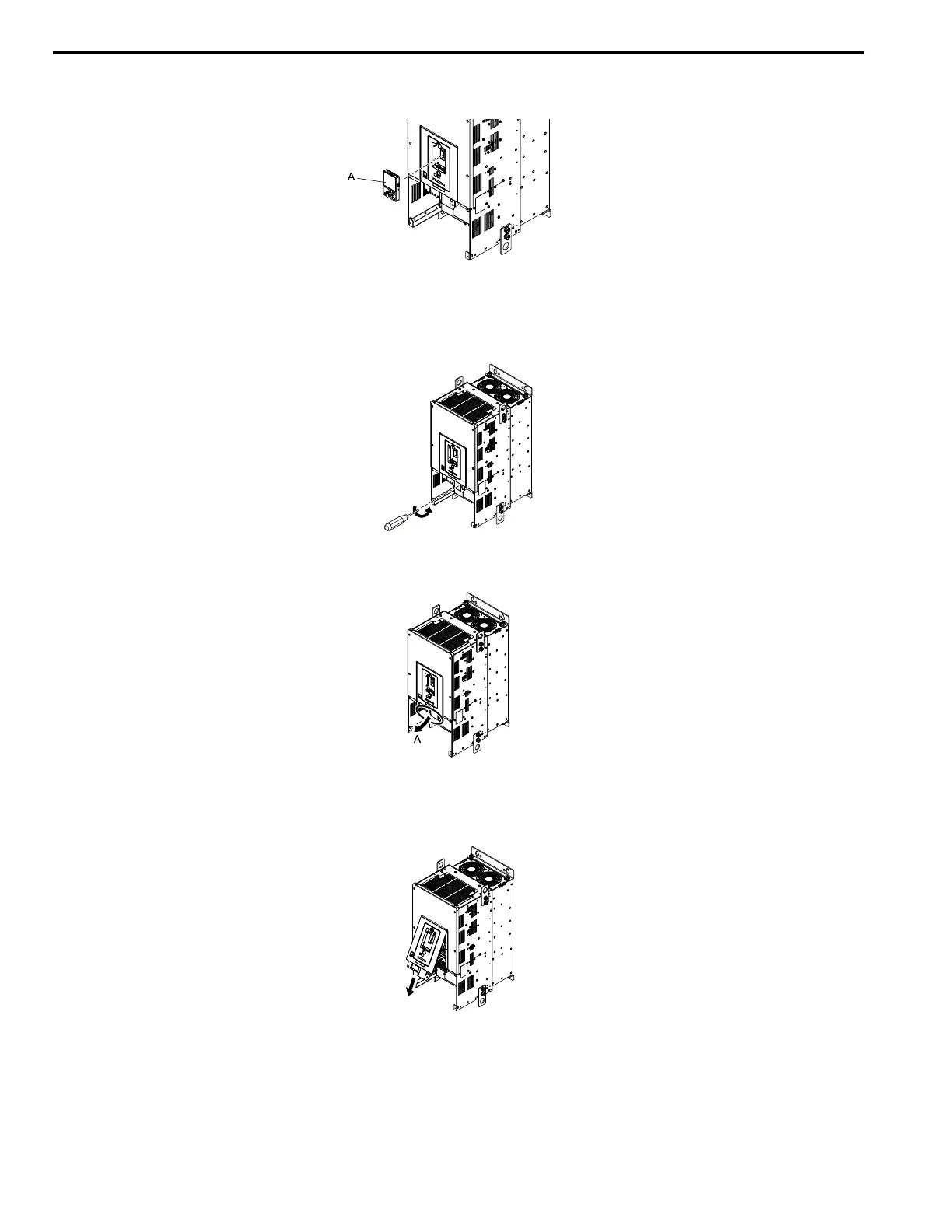

Remove the Front Cover
1. Remove the keypad from the drive.
A - Keypad
Figure 6.14 Remove the Keypad
2. Loosen the front cover screws.
Figure 6.15 Loosen the Front Cover Screws
3. Pull part A of the front cover forward to remove the cover from the drive.
A - Pull forward to remove the front cover.
Figure 6.16 Pull Forward to Remove the Front Cover
4. Remove the front cover from the drive.
Figure 6.17 Remove the Front Cover
Reattach the Front Cover
Wire the drive and other peripheral devices then reattach the front cover.
