5. Put the conduit bracket in its initial position.

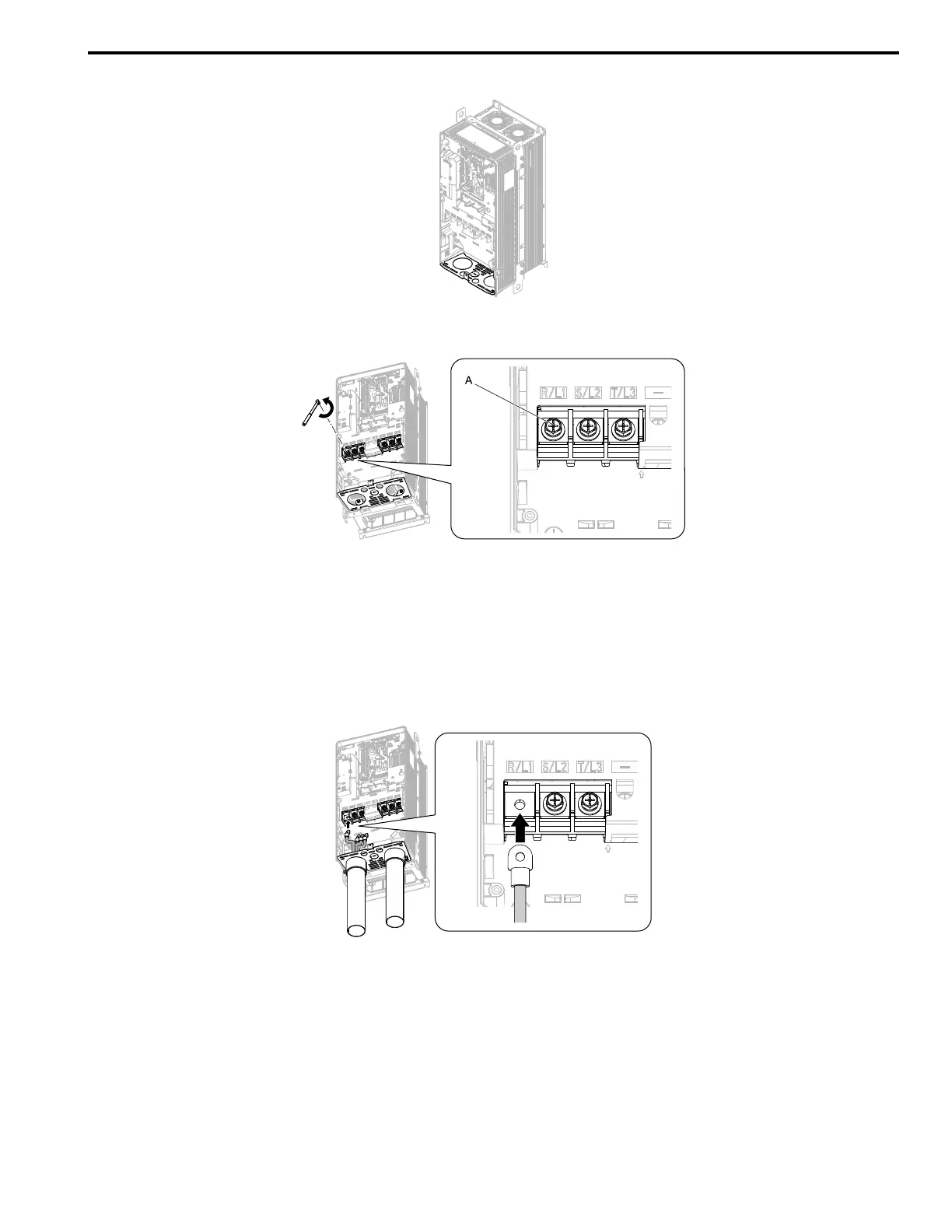

Figure 7.9 Reattach the Conduit Bracket
6. Remove the terminal block bolt.
A - Bolt
Figure 7.10 Remove the Terminal Block Bolts
7. Put the ends of wires with closed-loop crimp terminals through the conduits.
Note:
• When you use terminals - and +1 and these terminals have covers, remove them to install the wire.
• Install the included rubber grommets or use conduits to keep the IP20 protection level and to prevent damage to the wires. To
comply with UL standards, you must use conduits for wiring.
8. Align the closed-loop crimp terminals with the bolt holes on main circuit terminal block.
Figure 7.11 Install the Electrical Wires
