7 Electrical Installation
YASKAWA TOEPC7106171FD FP605 DRIVE INSTALLATION & PRIMARY OPERATION 45

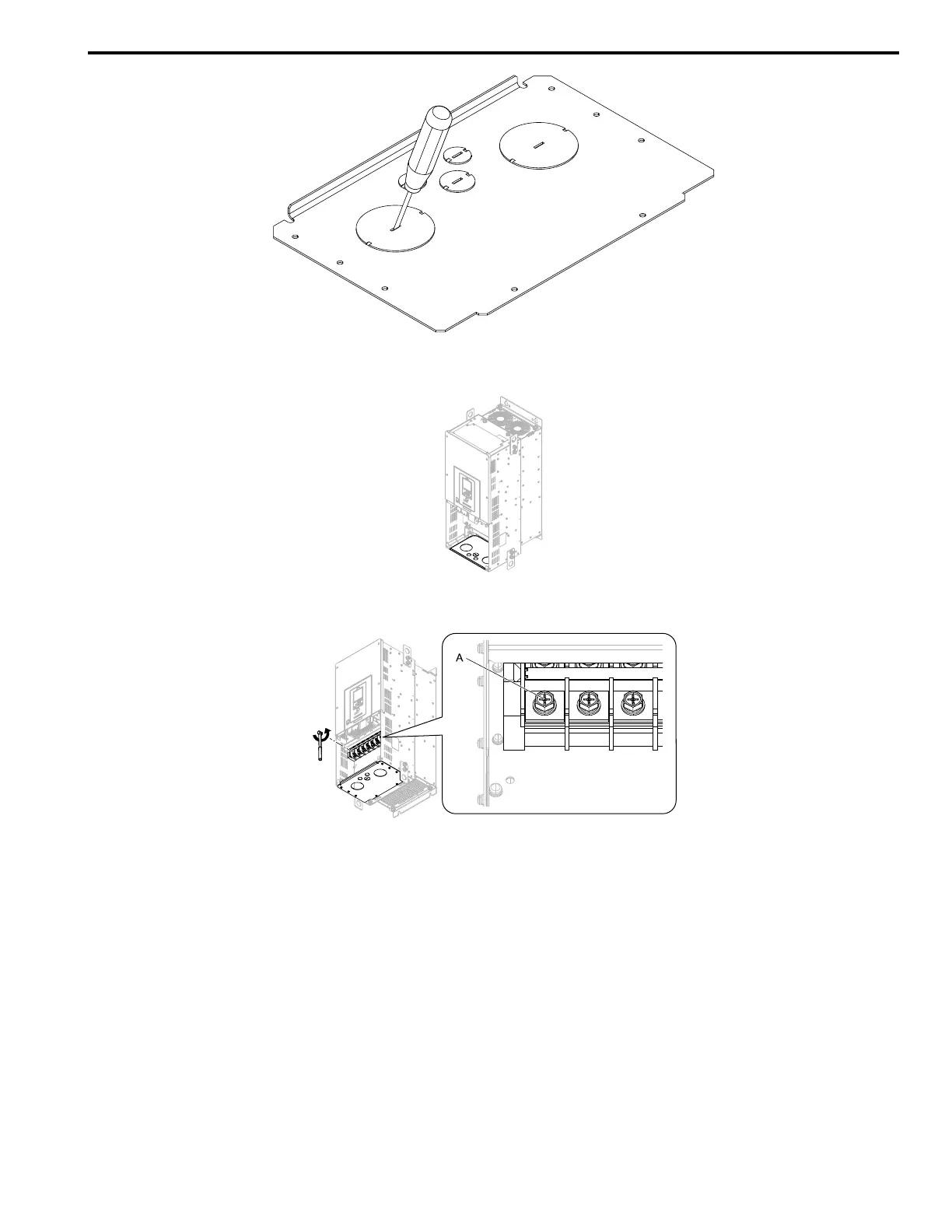

4. Use a file to make the rough surface of the knock-out hole edge smooth.
5. Put the conduit bracket in its initial position.
Figure 7.14 Reattach the Conduit Bracket
6. Remove the terminal block bolt.
A - Bolt
Figure 7.15 Remove the Terminal Block Bolts
7. Put the ends of wires with closed-loop crimp terminals through the conduits.
Note:
Install the included rubber grommets or use conduits to keep the IP20 protection level and to prevent damage to the wires. To
comply with UL standards, you must use conduits for wiring.
To Next Page
