YASKAWA iQpump1000 - System Components

Technical Tip: iQPump1000 Setup Procedure for Use with Seametrics AG2000 Flow Meter
Product(s): iQpump1000
Doc. No. TN.iQp.04
TN.iQp.04 ©2016 - Yaskawa America, Inc.
Revision 1 - 2016-04 Page 2 of 10

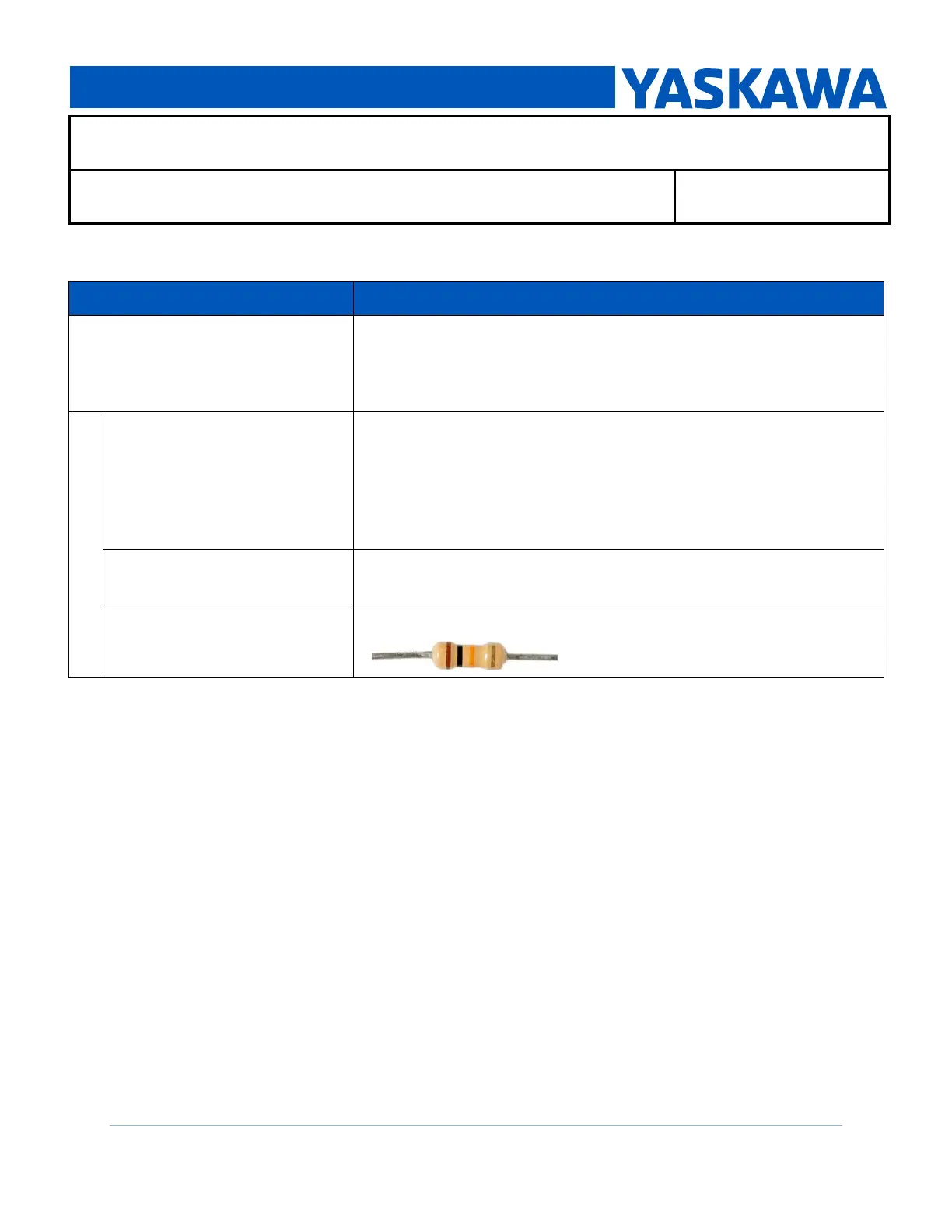

SYSTEM COMPONENTS
Component
Description
iQpump1000 Drive
Available models:
CIMR-PWA 200 V Class: 3/4 to 175 HP ND
CIMR-PWA 400 V Class: 3/4 to 1000 HP ND
CIMR-PWA 600 V Class: 2 to 250 HP ND
Customer supplied
Flow Meter (Seametrics)
The flow meter displays flow rate and total accumulation.
Model: AG2000-300 (Magnetic Type) Flow Meter
(http://www.seametrics.com)
 3 inch cross-section (I.D.)
 25.228 pulses per gallon (PPG)
 700 GPM capacity limit
Pressure transducer
Produces pressure feedback signal for a constant pressure
system
Pull-up Resistor
10 k Ohm 1/4 Watt 5% tolerance resistor
PROCEDURE
Warning ! - Electrical Shock Hazard. Do not allow unqualified personnel to perform work on the
drive. Installation, maintenance, inspection, and servicing must be performed by authorized
personnel familiar with installation, adjustment, and maintenance of AC drives Failure to comply
may result in electrocution.
Warning ! - Electrical Shock Hazard. Shut off the power supply to the drive before wiring the
main circuit terminals. The internal capacitor remains charged even after the power supply is
turned off. After shutting off the power, wait for at least the amount of time specified on the drive
before touching any components. Failure to comply may result in electrocution.
Warning ! - Electrical Shock Hazard. Do not connect or disconnect wiring while the power is on.
Failure to comply may result in death or serious injury
