Technical Tip: iQPump1000 Setup Procedure for Use with Seametrics AG2000 Flow Meter
Product(s): iQpump1000
Doc. No. TN.iQp.04
TN.iQp.04 ©2016 - Yaskawa America, Inc.
Revision 1 - 2016-04 Page 6 of 10
WARNING ! - Sudden Movement Hazard. Clear all personnel from the drive, motor, and
machine area before applying power to prevent injury from unexpected motor rotation.
2.3 Start the iQpump1000 by pressing the HAND key on the JVOP-183. To set HAND SPEED,
press ENTER and adjust P5-02 to set the speed to a known safe operating speed.
2.4 View parameter U1-24 to verify that the RP terminal on the iQPump1000 is receiving a
signal from the AG2000 flow meter. Refer to Figure 4.
2.5 Measure the signal across I/O terminals AC and RP, Figure 4.

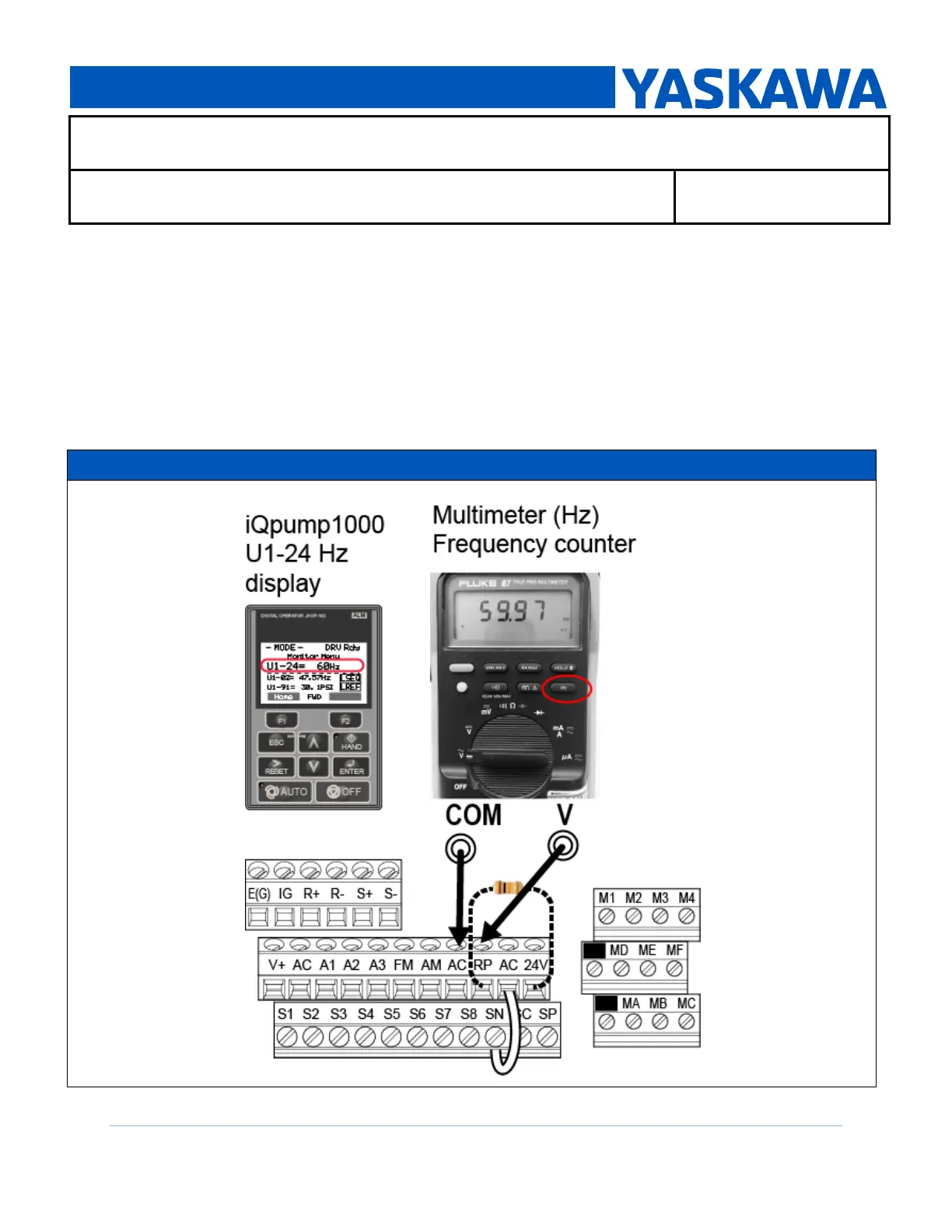

Figure 4: Flow Meter Signal Verification (Terminals AC to RP)
