2 Mechanical Installation
10 TOEP C710606 27 J1000 Quick Start Guide

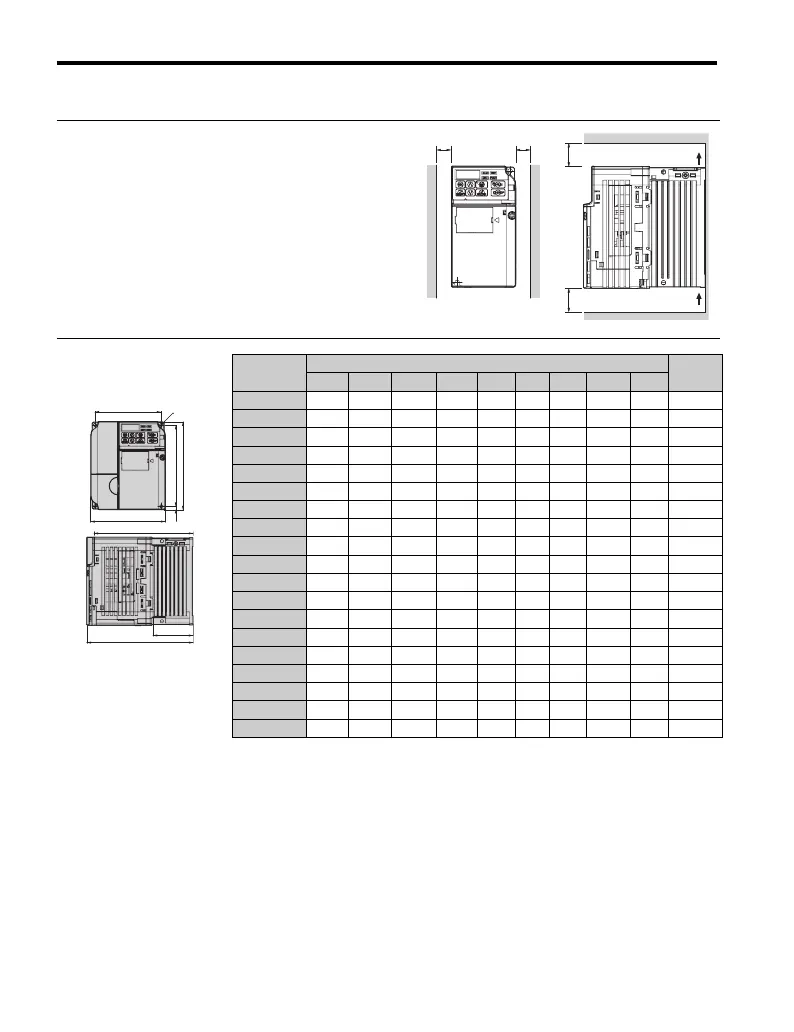

 Installation Orientation and Spacing
Always install the drive in an upright position.
Leave space around the unit for proper cooling
as shown in the figure on the right.
Note: Several units can be installed closer
together than shown in the figure by
using “Side-by-Side” mounting. For
details please refer to the instruction
manual.
 Dimensions
Model
CIMR-JC
Dimensions (mm)
Weight
(kg)
W H D W1 H1 H2 D1 D2 d
BA0001 68 128 76 56 118 5 6.5 67.5 M4 0.6
BA0002 68 128 76 56 118 5 6.5 67.5 M4 0.6
BA0003 68 128 118 56 118 5 38.5 109.5 M4 1.0
BA0006 108 128 137.5 96 118 5 58 129 M4 1.7
BA0010 108 128 154 96 118 5 58 145.5 M4 1.8
2A0001 68 128 76 56 118 5 6.5 67.5 M4 0.6
2A0002 68 128 76 56 118 5 6.5 67.5 M4 0.6
2A0004 68 128 108 56 118 5 38.5 99.5 M4 0.9
2A0006 68 128 128 56 118 5 58.5 119.5 M4 1.1
2A0010 108 128 129 96 118 5 58 120.5 M4 1.7
2A0012 108 128 137.5 96 118 5 58 129 M4 1.7
2A0020 140 128 143 128 118 5 65 134.5 M4 2.4
4A0001 108 128 81 96 118 5 10 72.5 M4 1.0
4A0002 108 128 99 96 118 5 28 90.5 M4 1.2
4A0004 108 128 137.5 96 118 5 58 129 M4 1.7
4A0005 108 128 154 96 118 5 58 145.5 M4 1.7
4A0007 108 128 154 96 118 5 58 145.5 M4 1.7
4A0009 108 128 154 96 118 5 58 145.5 M4 1.7
4A0011 140 128 143 128 118 5 65 134.5 M4 2.4
30mm 30mm
100mm
100mm
Air
Air
W1
D
D2
D1
d
H
W1
W
H2
H1

YASKAWA J1000 Specifications

General

Series	J1000
Voltage Class	200V, 400V
Frequency	50/60 Hz
Enclosure Rating	IP20
Enclosure Type	Open type
Voltage	200-240V, 380-480V
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Ground Fault, Short Circuit
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Humidity	5-95% (non-condensing)
Enclosure	IP20
Input Voltage	200-240V, 380-480V
