4.2 Setting of Option Board and I/O Module
In order to use the SST-PN-2-PE board in the YRC1000micro, perform the
setting of the option board and I/O module in the following manner.

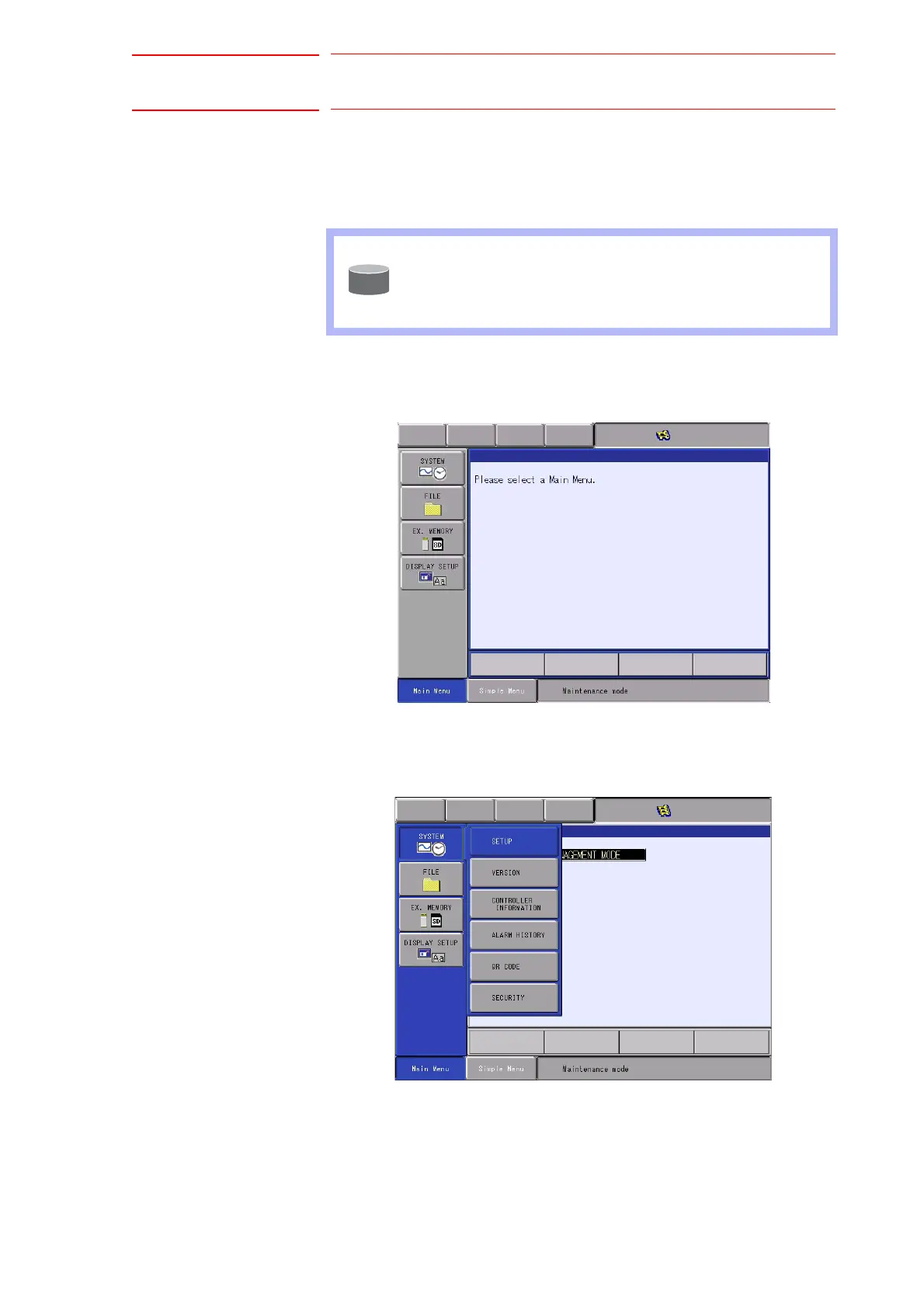

1. Turn ON the power supply while pressing {MAIN MENU}.
– The Maintenance mode starts.
2. Set the security mode to the “Management Mode”.
3. Select {SYSTEM} under the main menu.
– The sub menu appears.
SUPPLE
-MENT
Set the option board and I/O module in the management
mode.
In the operation mode and the editing mode, the settings are
for reference only.
