5 Installation Procedure
YASKAWA ELECTRIC TOBP C730600 75B YASKAWA AC Drive Option PG-B3 Installation Manual 17
3.
Connect one end of the ground wire (H) to the ground terminal (I) using one of the
remaining provided screws (C). Connect the other end of the ground wire (H) to the
remaining ground terminal and installation hole on the option (B) using the last
remaining provided screw (C).

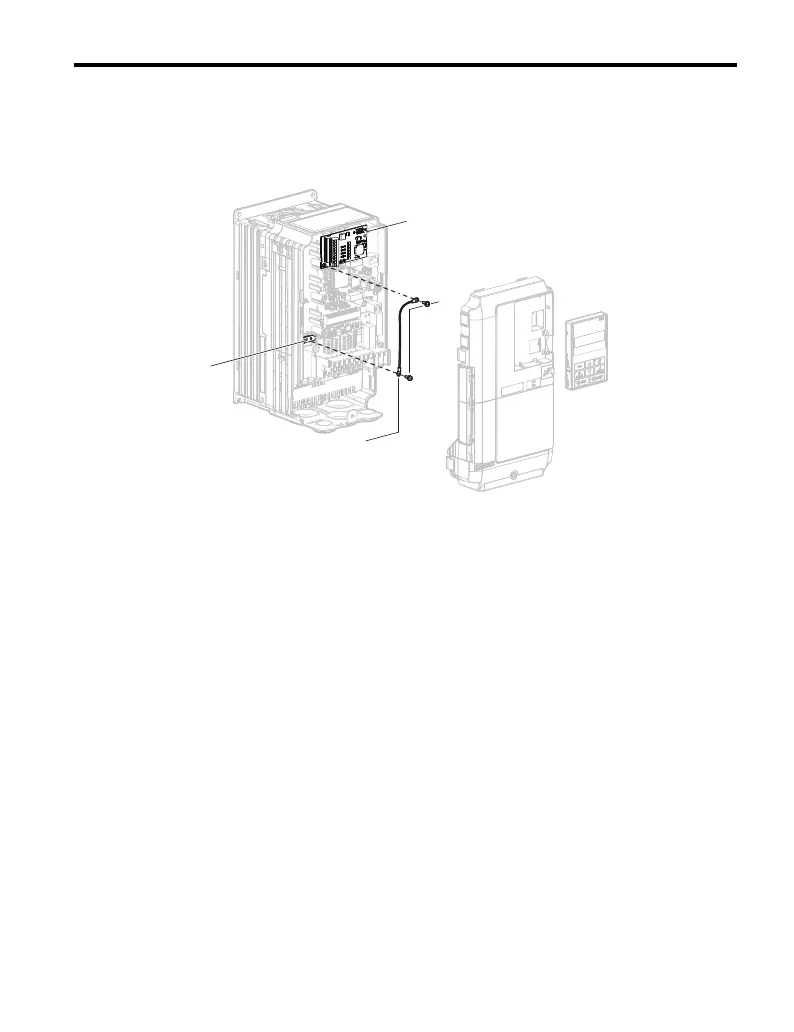

Figure 5
Figure 5 Connect the Ground Wire
Note: 1. The option package includes two ground wires. Use the longer wire to connect the option to CN5-C.
Use the shorter wire to connect the option to CN5-B. Refer to Option Package Contents on page 9 for
more information.
2. The drive has only two ground terminal screw holes (I). Two ground wires should share the same
ground terminal when connecting three options.
I
B
H
C
TOBP_C730600_75B_1_0_E.book 17 ページ ２０１７年２月１７日 金曜日 午後３時２分
