5 Installation Procedure
18 YASKAWA ELECTRIC TOBP C730600 75B YASKAWA AC Drive Option PG-B3 Installation Manual
4.
Prepare and connect the wire ends as shown in Figure 6 and Figure 7. Refer to
Wire Gauges and Tightening Torques on page 32 to confirm that the proper
tightening torque is applied to each terminal. Take particular precaution to ensure
that each wire is properly connected and wire insulation is not accidentally pinched
into electrical terminals.
WARNING! Fire Hazard. Tighten all terminal screws according to the specified tightening torque. Loose
electrical connections could result in death or serious injury by fire due to overheating electrical connections.
Tightening screws beyond the specified tightening torque may result in erroneous operation, damage the
terminal block, or cause a fire.
NOTICE: Heat shrink tubing or electrical tape may be required to ensure that cable shielding does not
contact other wiring. Insufficient insulation may cause a short circuit and damage the option or drive.

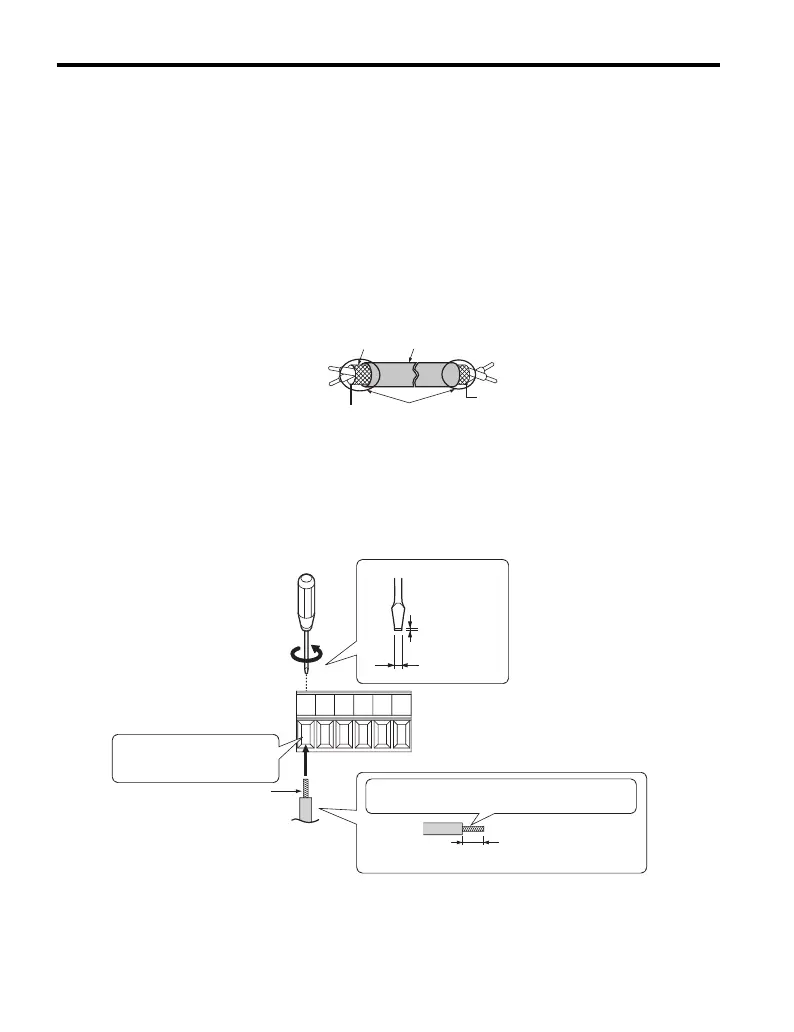

Figure 6
Figure 6 Prepare Ends of Shielded Cable
5.
Wire the motor PG encoder to the terminal block on the option according to
Figure 7.
Refer to Figure 21 for the PG-B3 Option and PG Encoder connection diagram.
Refer to Table 9 for a detailed description of the option terminal functions.
Figure 7
Figure 7 Connect Cable Wiring
Insulation
Shield sheath
Shield
PG option terminal
PG at moto
FE/SD
Ground Terminal
(Insulate with electrical tape
or heat-shrink tubing)
Option terminal block
Screwdriver blade size
about 5.5 mm (7/32”)
When not using crimped
insulated sleeves
Pull back the shielding and lightly twist the end
with fingers, keeping the ends from fraying.
Wire crimping ferrule terminals
or not soldered ends
Loosen the screws and
insert the wire into the
opening on the terminal block.
Blade depth of
0.4 mm or less
Blade width of
2.5 mm or less
TOBP_C730600_75B_1_0_E.book 18 ページ ２０１７年２月１７日 金曜日 午後３時２分
