5 Installation Procedure
YASKAWA ELECTRIC TOBP C730600 89D YASKAWA AC Drive Option SI-EP3 Installation Manual 29
2.
Shut off power to the drive, wait the appropriate amount of time for voltage to
dissipate, then remove the front cover (D).
Refer to the manual packaged with the drive for details on cover removal.
NOTICE: Damage to Equipment. Observe proper electrostatic discharge (ESD) procedures when handling
the option, drive, and circuit boards. Failure to comply could cause ESD damage to circuitry.

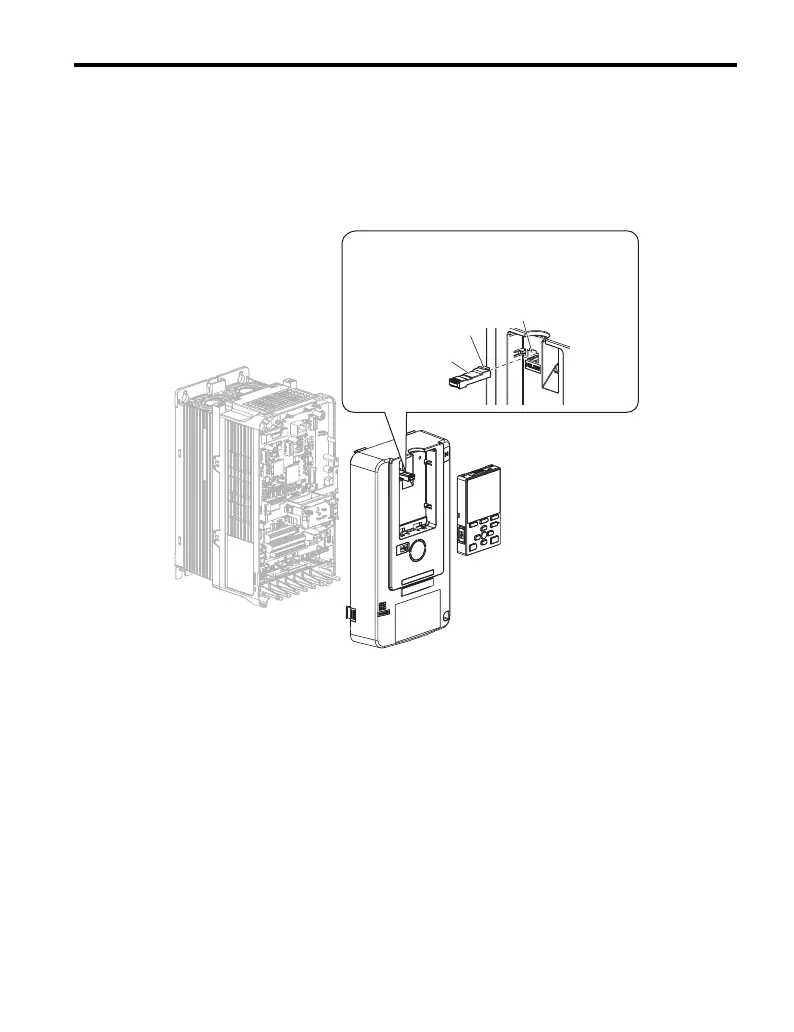

Figure 13
Figure 13 Remove the Front Cover and Keypad
Keypad connector
Keypad connector tab
Move the keypad connector to the holder on the
drive after removing the keypad and before removing
the front cover. Insert the keypad connector tab into
the holder when installing the keypad connector to
the holder.
Holder
