5 Installation Procedure
30 YASKAWA ELECTRIC TOBP C730600 89D YASKAWA AC Drive Option SI-EP3 Installation Manual
3. Carefully remove the LED Status Ring board (I) and place it on the right side of the
drive using the temporary placement holes.
Refer to the manual packaged with the drive for details on removing the LED Status
Ring board.
NOTICE: Do not remove the LED Status Ring board cable connector. Failure to comply could cause
erroneous operation and damage the drive.

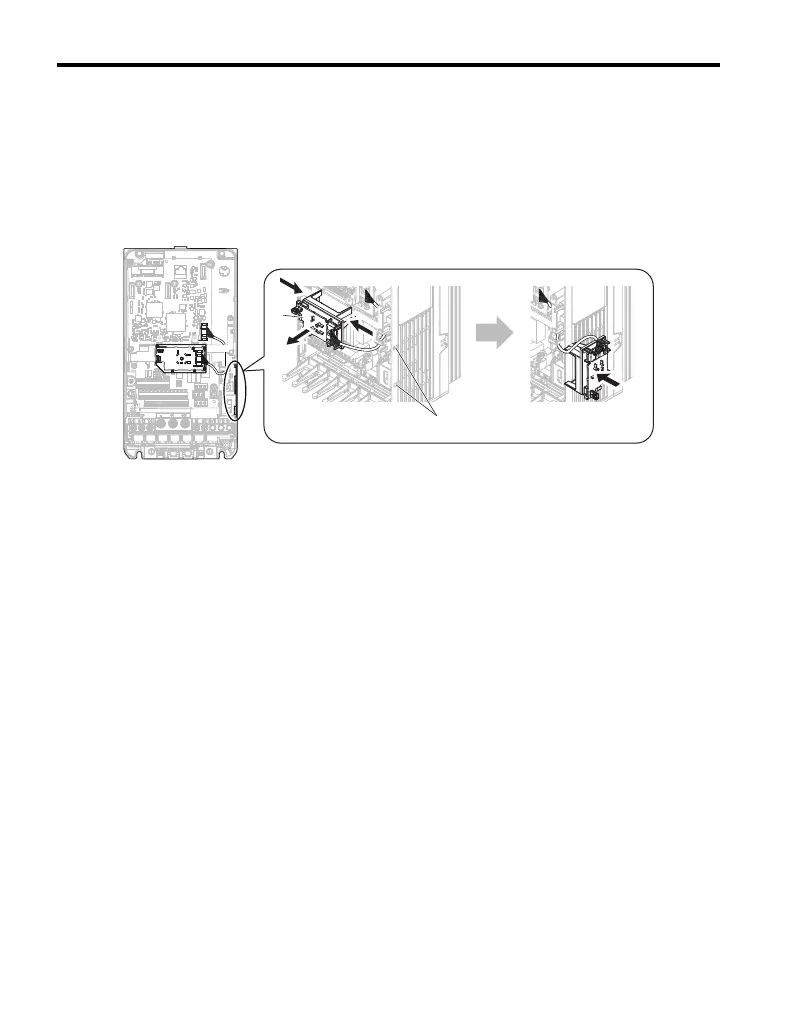

Figure 14
Figure 14 Remove the LED Status Ring Board
I
Drive front view
Temporary placement holes
A1000
