n Communication Cable Topology
The option modular connector CN1 port 1 and port 2 act as a switch to allow for flexibility
in cabling topology. Users may employ a traditional star network topology using a single
communication cable port on the option.
Users may also choose to employ a ring topology using both communication modular
connector ports on the option and reduce the requirements of PROFINET switch ports.

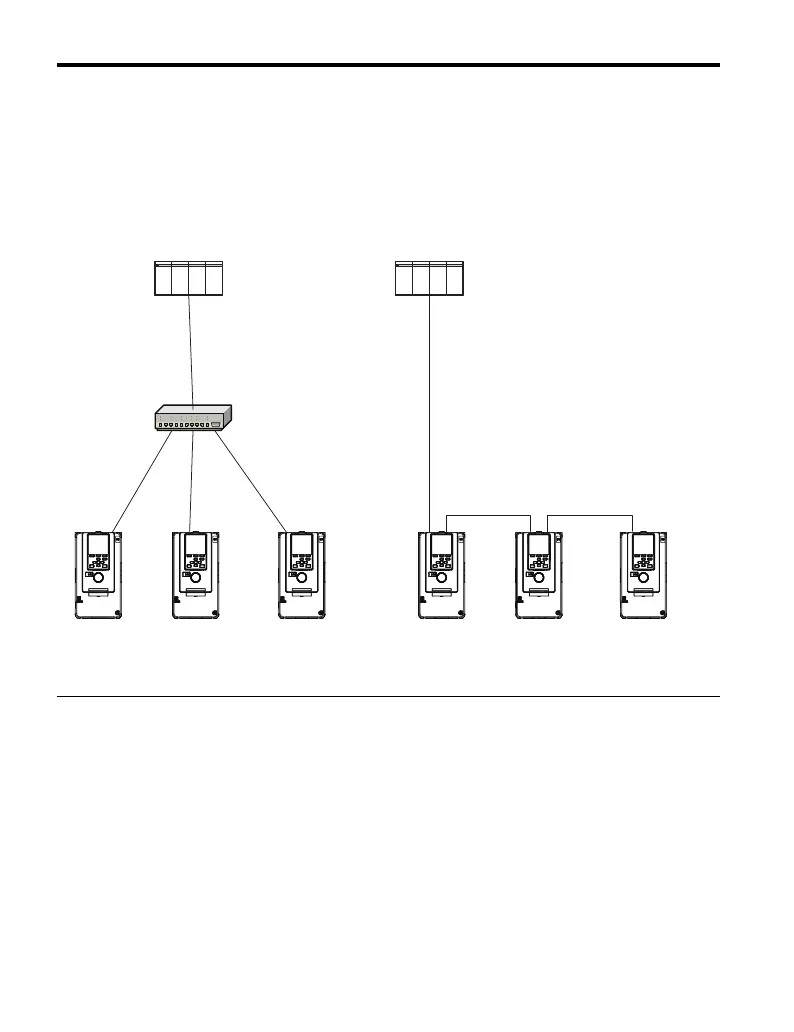

Figure 17
Figure 18 Topology Options
u GSD Files
To facilitate network implementation, obtain a GSD file from one of the following websites
depending on your region:
U.S.: http://www.yaskawa.com
Europe: http://www.yaskawa.eu.com
Japan: http://www.e-mechatronics.com
Other areas: Check the back cover of these manuals.
For questions, contact Yaskawa or a Yaskawa representative.
PLC
SWITCH
PLC
Drive Drive Drive
Drive Drive Drive
