YASKAWA SI-EP3

5 Installation Procedure
YASKAWA ELECTRIC TOBP C730600 89D YASKAWA AC Drive Option SI-EP3 Installation Manual 33
u Communication Cable Specifications
Use only PROFINET dedicated communication cable; the Yaskawa warranty does not cover
other cable types.
n Option Connection Diagram

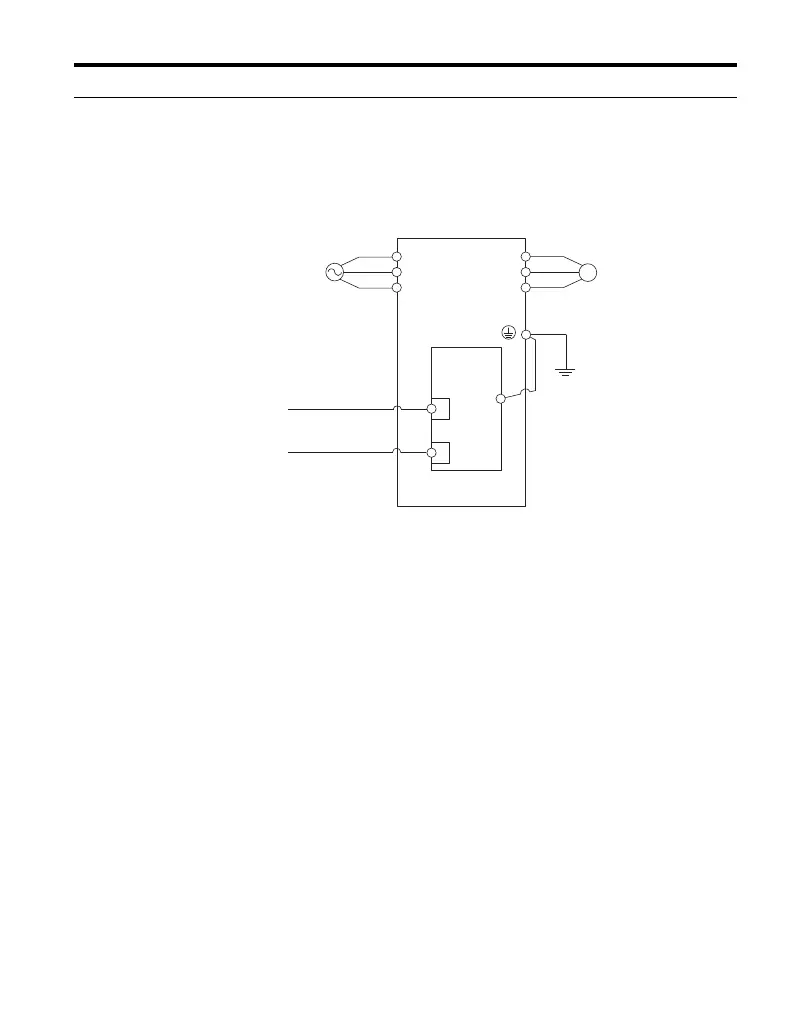

Figure 17 Option Connection Diagram
<1> Connect the provided ground wire for installations on 1000-series drives and GA500 drives.
The ground wire is not necessary for installation on GA700 or GA800 drives.
Drive
M
U/T1
V/T2
W/T3
R/L1
S/L2
T/L3
SI-EP3
PROFINET
Option
FE
<1>
PROFINET Master
PROFINET Cable
MotorPower
PROFINET Cable
A1000
