5 Installation Procedure
22 YAS K AWA E L E C T R I C TOBP C730600 24D 1000-Series Option SI-S3/V, SI-S3/T Installation Manual
4. Reattach the bottom cover.

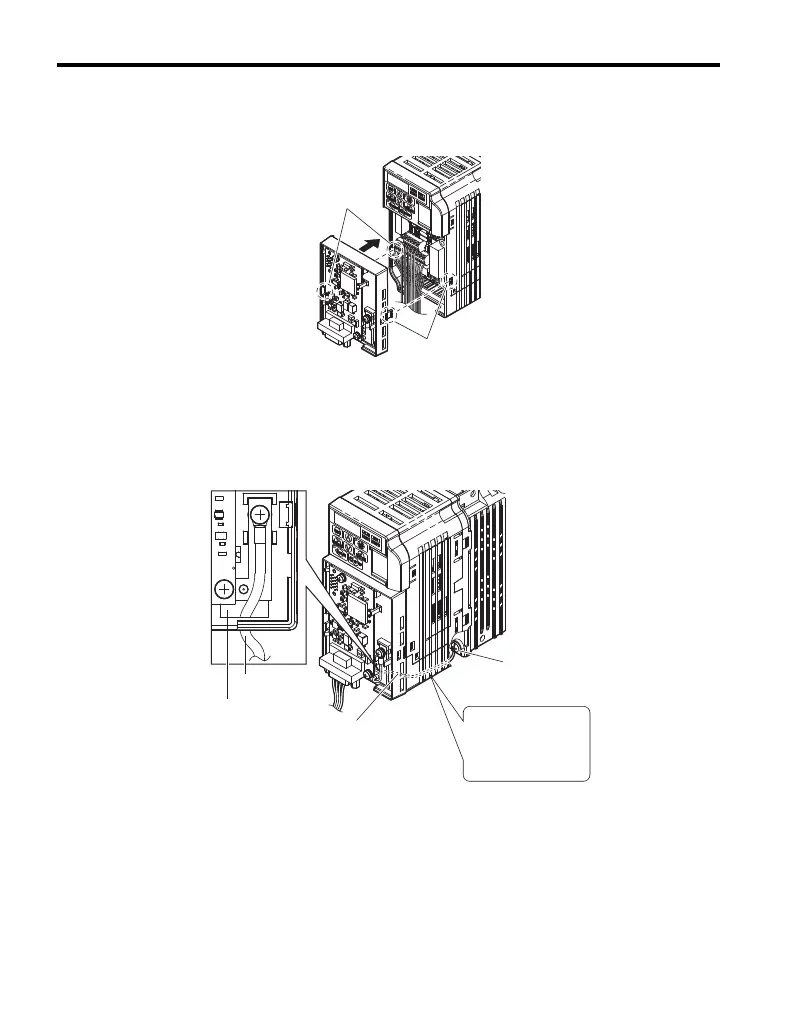

5. Connect the CANopen Option to the drive. Properly secure the tabs on the left and right
sides of the CANopen Option to the drive case.
Figure 12
Figure 12 Attach CANopen Option
6. Connect the ground wire from the drive ground terminal to the CANopen Option ground.
When wiring the CANopen Option, pass the ground wire through the inside of the drive
bottom cover, then pass the ground wire into the through-hole at the front of the CANopen
Option.
Figure 13
Figure 13 Ground Wire Connection
7. Connect the communications cable to the terminal block.
tabs should line up
tabs should line up
ground
wire
drive ground
terminal
Pass the ground
wire through
the bottom cover
of the drive.
through-hole
for ground wire
ground wire
