6 Ethernet Connectivity
The SigmaLogic7 Compact supports both 100 Mbps/100Base-TX and
10 Mbps/10Base-T connections. One single network is accessed
using both CN6A and CN6B. The same IP address is set for both
ports. The Ethernet address (MAC address) can be found on the
nameplate.

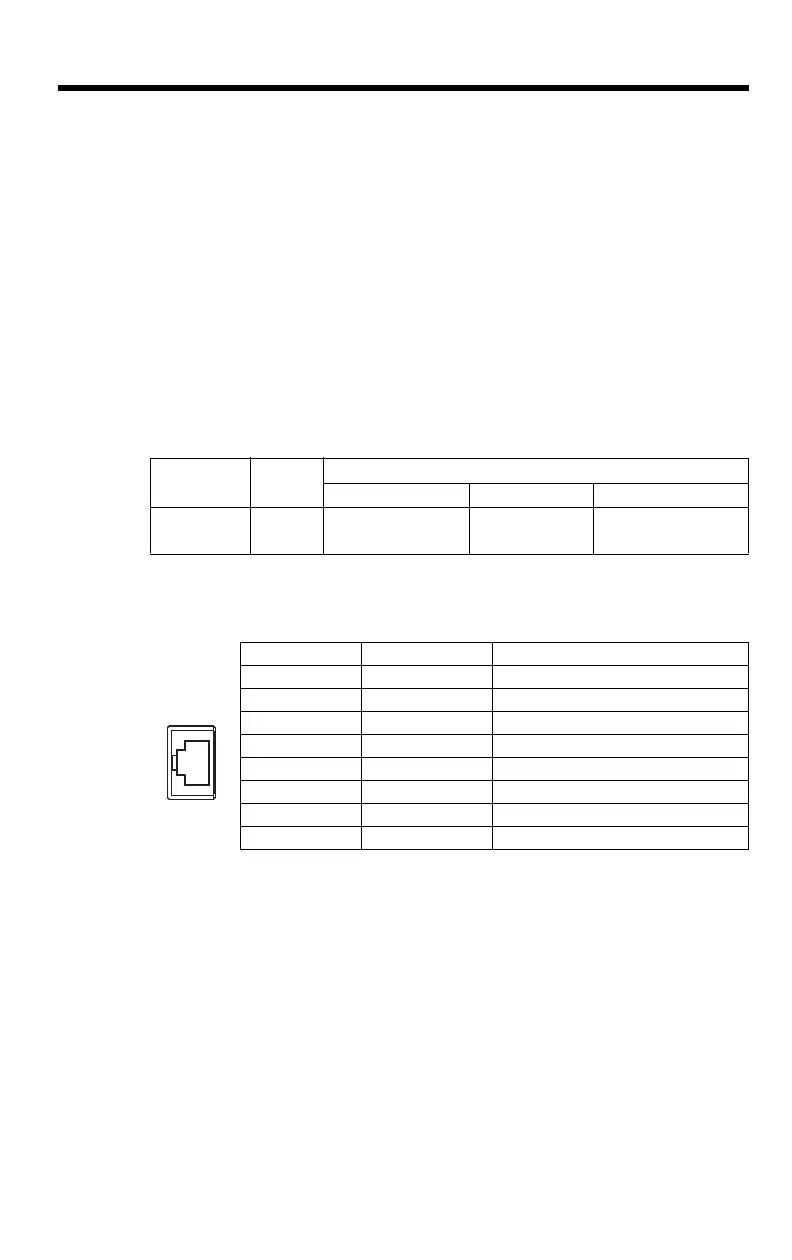

6.1 Ethernet Connector Details
Ethernet Connector Specification and Pin Array
The following table provides the Ethernet connector specifications.
The following table provides Ethernet connector pin array details.
Connector
Name
Number
of Pins
Connector Model
Module Side Cable Side Manufacturer
Ethernet
8
RJ-45 CAT5
Socket
RJ-45 CAT5
Plug
TE Connectivity
Pin Number Signal Name Description
1TXD+
Transmitted data + side
2TXD-
Transmitted data – side
3RXD+
Received data + side
4–
–
5–
–
6RXD-
Received data – side
7–
–
8–
–
