Stopping Methods
6-19
îš„Deceleration to Stop
If the Stop Command is input (i.e., the Run Command is turned OFF) when b1-03 is set to 0, the motor decel-
erates to a stop according to the deceleration time that has been set. (Factory setting: C1-02 (Deceleration
Time 1))
If the output frequency when decelerating to a stop falls below b2-01, the DC injection brake will be applied
using the DC current set in b2-02 only for the time set in b2-04.
For deceleration time settings, refer to page 6-25 Setting Acceleration and Deceleration Times.

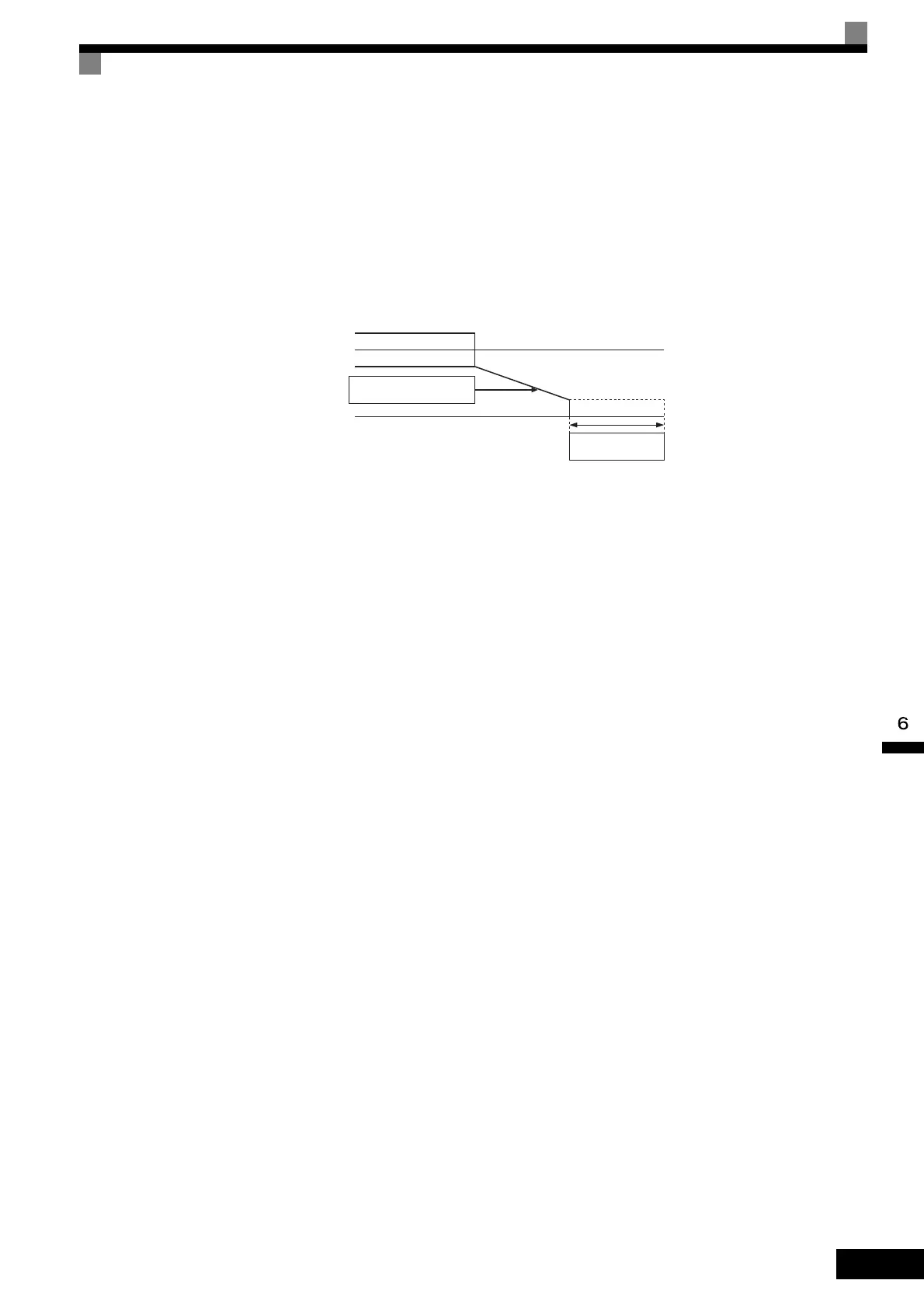

Fig 6.15 Deceleration to Stop
Decelerates to stop at
deceleration time
Output frequency
Run Command
ON
OFF
DC injection brake time
when stopping (b2-04)
DC injection brake
