YASKAWA VS-626MT Series User Manual

Terminal

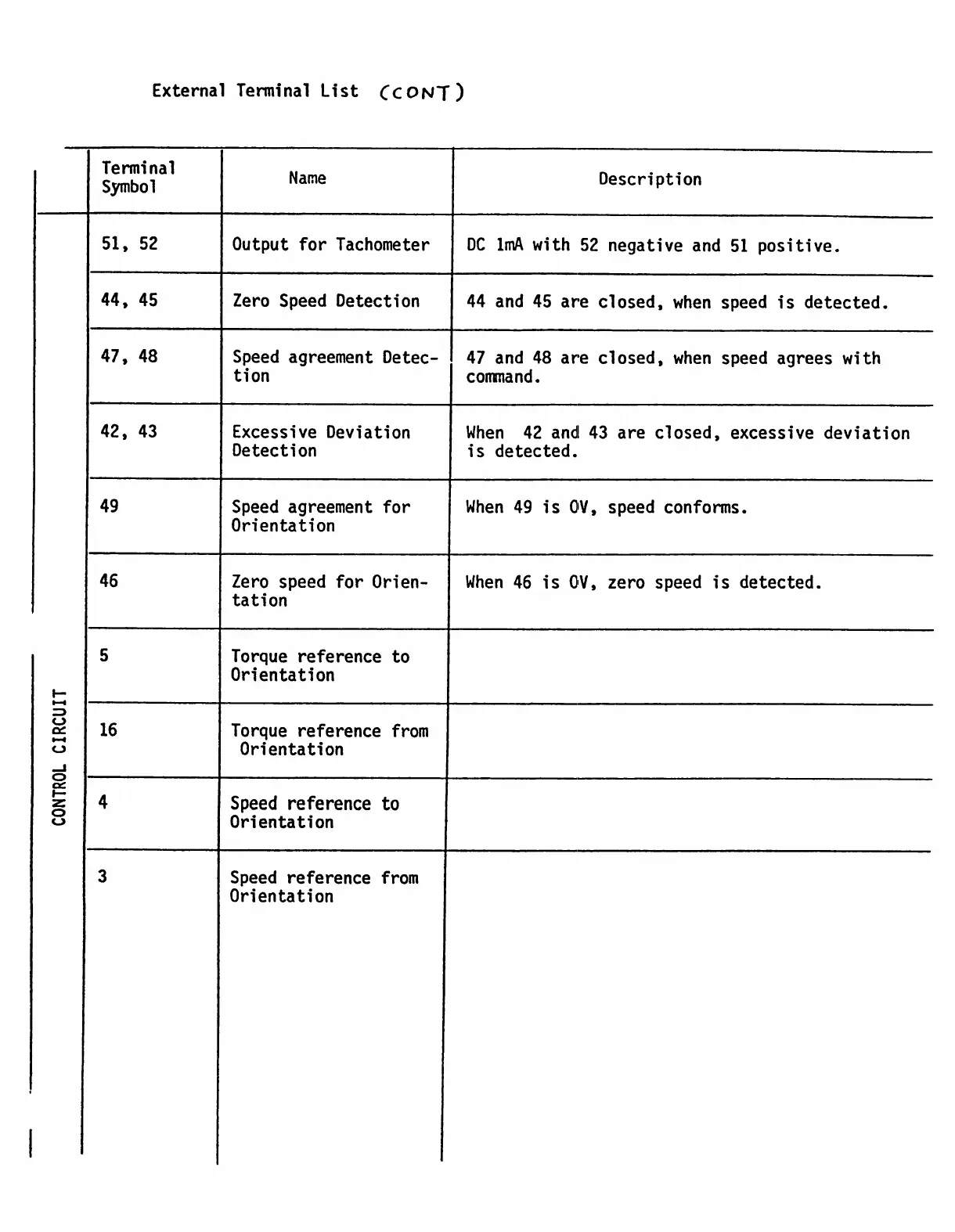

ExternalTerminalList
(CON-()
Symbol
Name
Description
51, 52 Output for Tachometer I DC 1mA with
52 negative and 51 positive .
44, 45 Zero Speed Detection
44
and
45 are closed, when speed is detected .
47, 48 Speed agreement Detec-
47 and 48
are
closed, when speed agrees with
tion
command .
42, 43 ExcessiveDeviation When 42 and 43 are closed,excessive
deviation
Detection is detected .
49
Speed agreement for When 49 is OV, speed conforms .
Orientation
46
Zero speed for Orien- When 46 is OV, zero speed is detected .
tation
Torque reference to
Orientation
U
16
Torque reference from
U
Orientation
J
0
F-
z
Speed reference
to
o
U
Orientation
Speed
reference from
Orientation
