YASKAWA VS-626MT Series User Manual

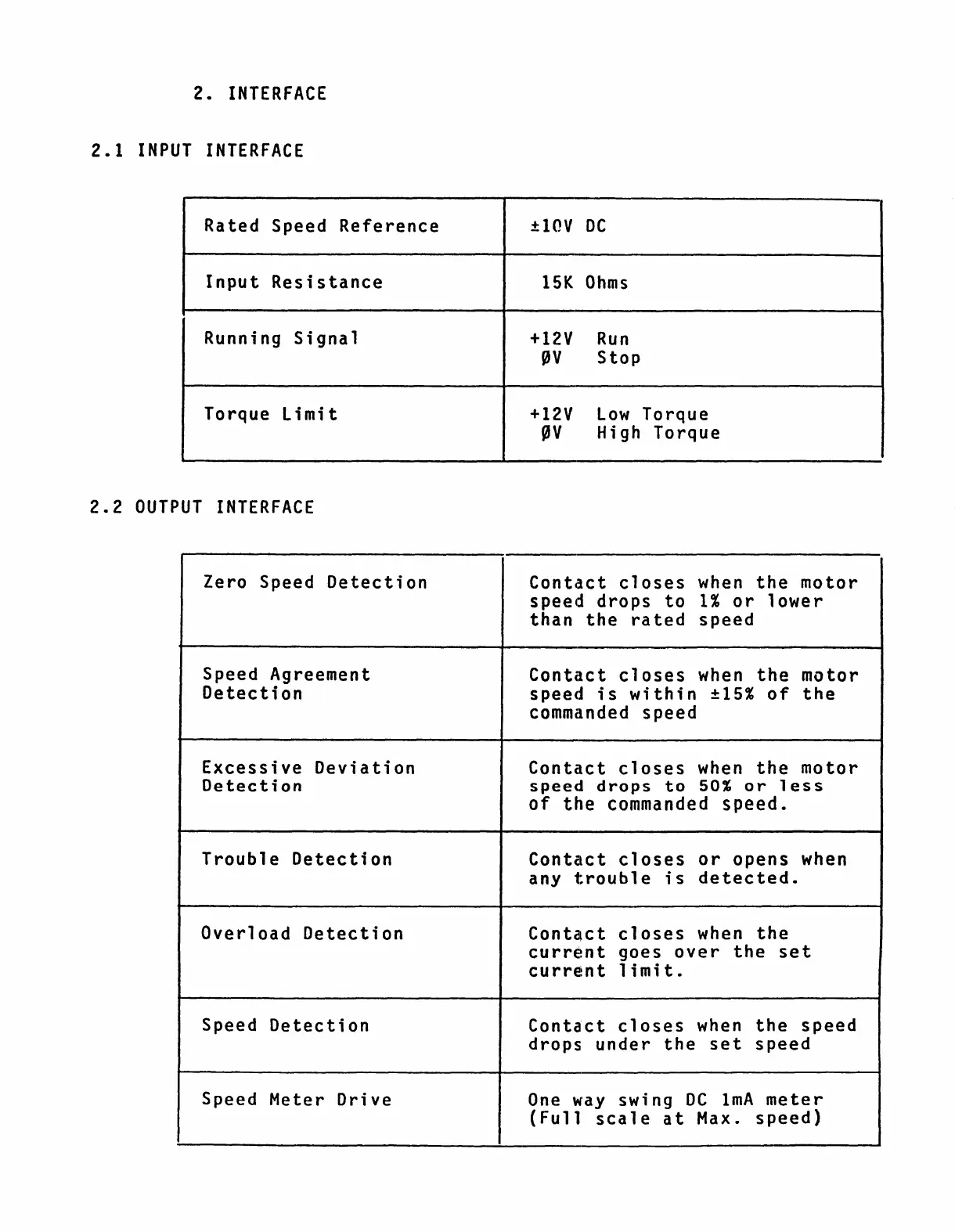

2 . INTERFACE
2 .1 INPUT INTERFACE
2 .2 OUTPUT INTERFACE
RatedSpeed Reference
±10V DC
Input Resistance
15K Ohms
Running Signal
+12V
OV
Run
Stop
Torque Limit +12V
OV
Low Torque
Nigh Torque
Zero Speed Detection Contact closes when the motor
speed drops to 1% or lower
than the ratedspeed
Speed Agreement
Contact closes
when the motor
Detection speed is within ±15% of the
commanded speed
ExcessiveDeviation Contact closes when the motor
Detection speeddrops to 50% or less
of the commanded speed .
TroubleDetection Contact closes or opens when
any trouble is detected .
Overload Detection Contact closes
when the
current goes over theset
current limit .
Speed Detection Contact closes when the speed
drops under the set speed
Speed
MeterDrive One way swing DC
1mA meter
(Full scale
at
Max . speed)
