• Adjusting the Camera Layout
Adjusting the Camera Layout
Procedure
1.
Tap to go to the Camera Control page.
If you are in a meeting, tap > to go to the Camera Control page.
2. Tap Camera Layout.
3. Select the desired layout and do the following settings:
• Fullscreen: Drag the camera from the camera list into the left picture to switch the camera displayed
in full screen.
• Division:
You can select the desired mode from the drop-down menu on the right side of the division mode.
Drag the camera in the division mode to switch the camera display positions.
• Surround:
You can select the desired mode from the drop-down menu on the right side of the surround mode.
Drag the camera in surround mode to the specified position.
4. Tap Apply.
Single and Dual External Display
To fully enjoy the video and content sharing in the meeting, we recommend that you connect at least one
external display to the MCore/Mini-PC. If you connect two external displays, the second screen will display
the shared content in full screen.
Note: If you want to use two external displays, make sure the dual monitor mode is enabled.
• Single Screen Layouts
• Dual Screen Layouts
• Enabling Dual Monitor Mode

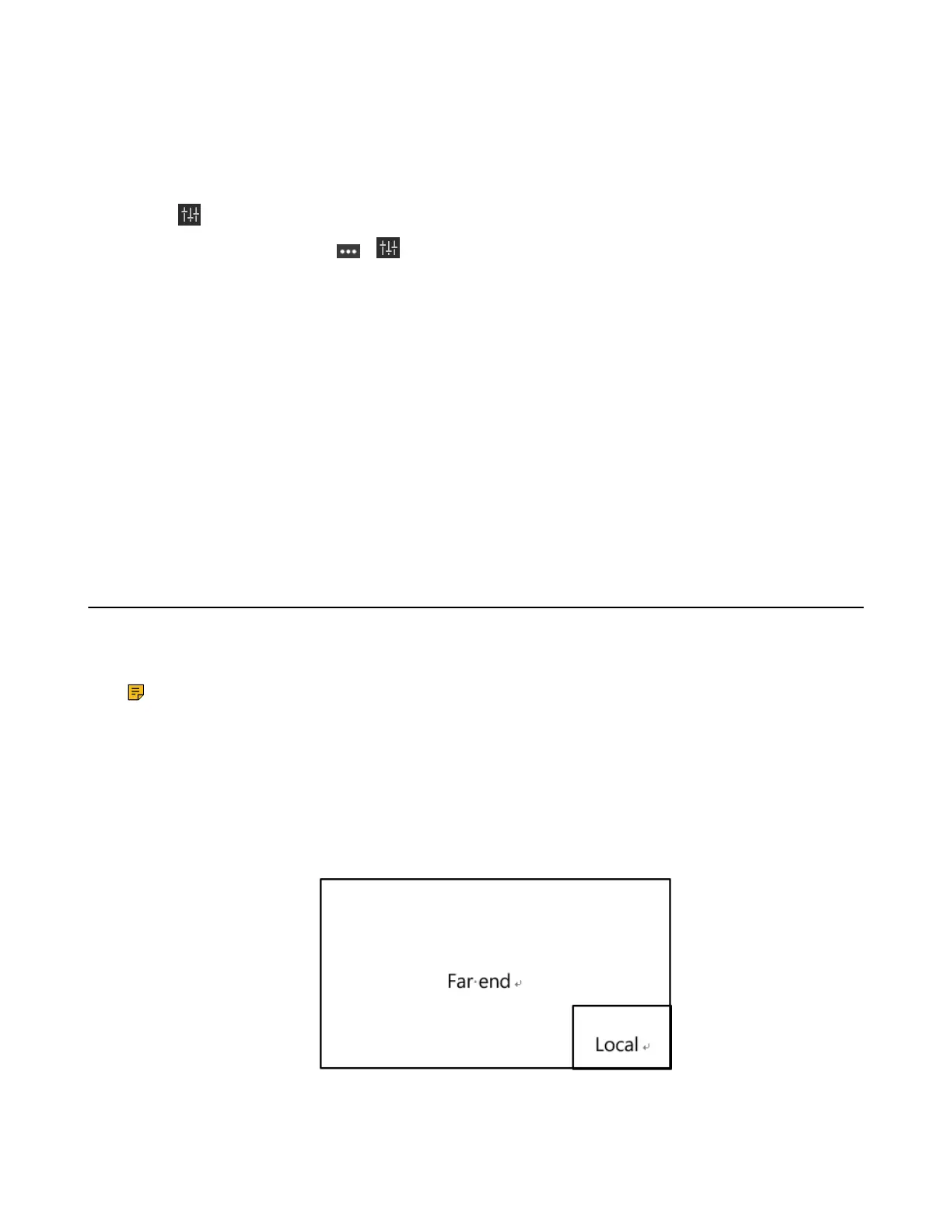

Single Screen Layouts
The following introduces the default layout when you connect one display screen.
Only Video Calls
Video Calls with a Presentation

Yealink MVC940 Specifications

General

Reset slot	Yes
USB connector type	USB Type-A, USB Type-B
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
HDMI output ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Display diagonal	11.6 \
Touchscreen type	Capacitive
Megapixel	- MP
Camera type	Single camera
Sensor type	CMOS
Optical zoom	12 x
Image sensor size	- \
Diagonal field of view	80 °
Vertical field of view	45 °
Horizontal field of view	73 °
Harmonized System (HS) code	85176990
Pan range	0 - 200 °
Product type	Group video conferencing system
Product color	Black
Tilt angle range	0 - 130 °
Bluetooth version	5.2
Number of cameras	2
Number of persons	- person(s)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Processor family	Intel® Core™ i5
Computer system type	Mini PC
Operating system installed	Windows 10 IoT Enterprise
Internal memory	8192 MB
Storage media type	SSD
Total storage capacity	128 GB
Maximum video resolution	3840 x 2160 pixels
Telepresence	-
Trusted Platform Module (TPM) version	2.0
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Interface module RJ-45 ports quantity	7

Weight and Dimensions

Weight	12100 g
Package depth	413 mm
Package width	935 mm
Package height	312 mm
Package weight	13800 g
