Advanced Phone Features
159
The default channel is 0.
8. Click Confirm to accept the change.
Note
Using Multicast Paging
To send RTP stream via a multicast paging key when the receiver’s phone is idle:
1. Press the multicast paging key when the phone is idle.
The phone sends RTP to a preconfigured multicast address (IP: Port).
Both the sender’s and receiver’s phones play a warning tone and the receiver automatically
answers the multicast RTP session in the hands-free (speakerphone) mode.
The multicast paging key LED illuminates solid green.

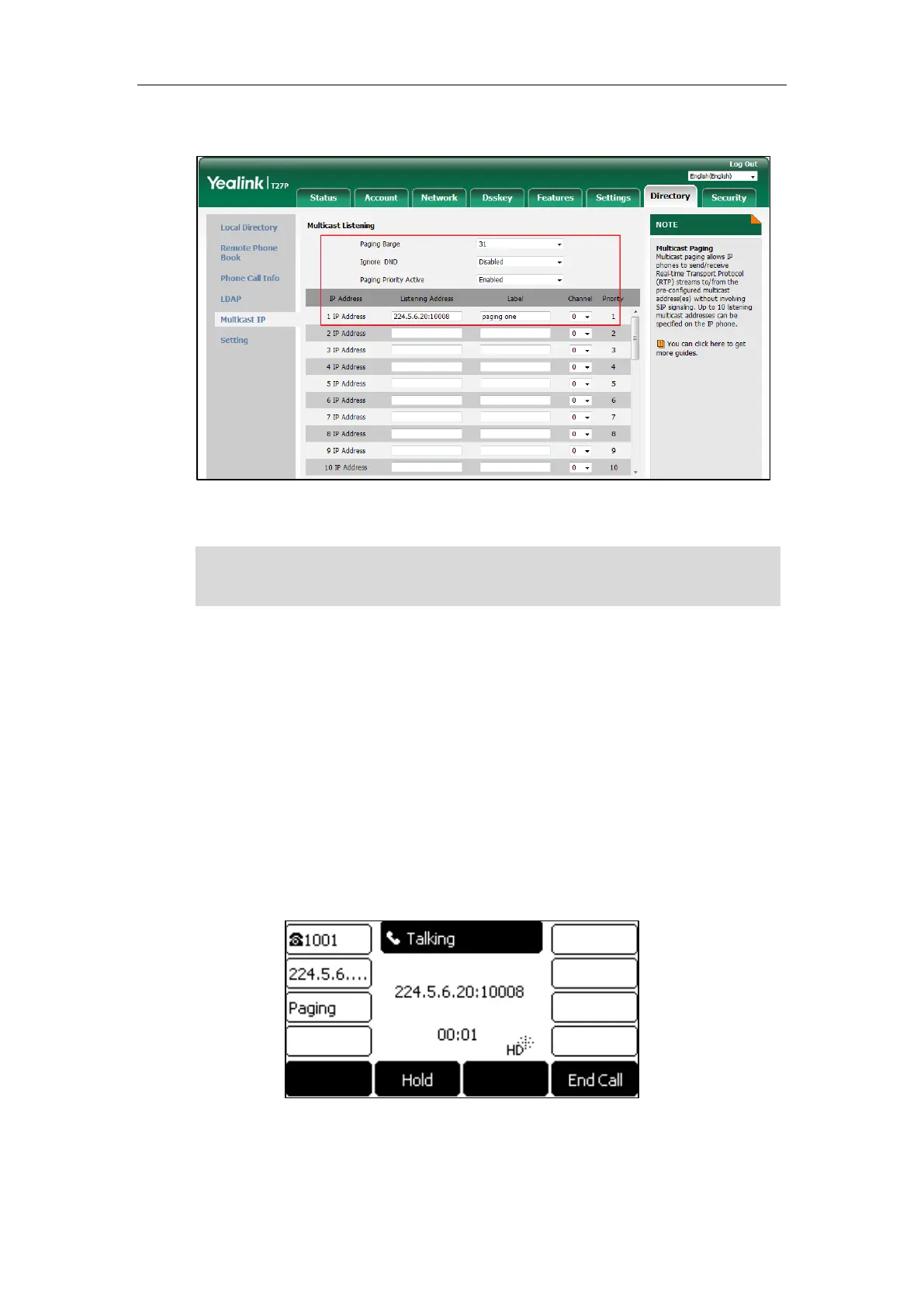

The following figure shows a multicast RTP session on the phone:
2. You can do the following:
To place the current multicast RTP session on hold, press the Hold soft key.
The priorities of listening addresses are predefined: 1 with the highest priority, 31 with the lowest.
Multicast listening addresses are configurable via web user interface only.
