Customizing Your Phone
83

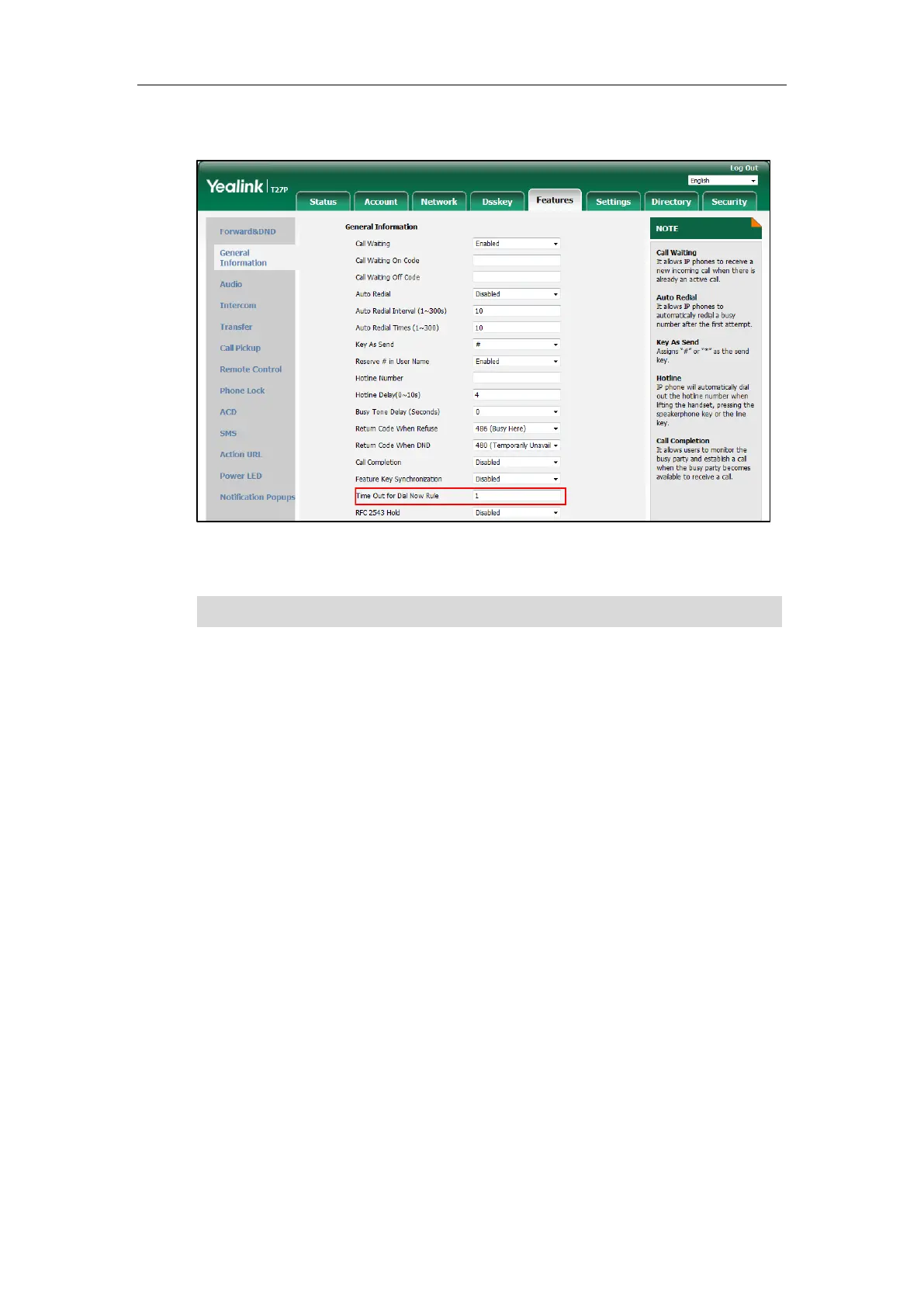

The default value is “1”.
3. Click Confirm to accept the change.
Note
Area Code
Area codes are also known as Numbering Plan Areas (NPAs). They usually indicate geographical
areas in a country. This feature is necessary when dialing a phone number outside the code area.
For example, an area code is configured as "Code: 0592, Min Length: 1, Max Length: 15". When
you dial out the number "56789" (the length of the number is between 1 and 15), the phone will
add the area code and dial out the number "059256789". You can only configure one area code
rule on your phone.
To configure the area code via web user interface:
1. Click on Settings->Dial Plan->Area Code.
2. Enter the desired values in the Code, Min Length (1-15) and Max Length (1-15) fields.
3. Enter the desired line ID in the Account field or leave it blank.
Time out for dial now rule is configurable via web user interface only.

Yealink SIP-T27P Specifications

General

Handset type	Wired handset
Product type	IP Phone
Product color	Cappuccino, Black
Backlight keypad	Yes
Volume control	Digital
Base station keys	36
Number of programmable keys	8
Phonebook capacity	1000 entries
Number of VoIP accounts	6
Voice codecs	G.722, G.726, G.711, G.729, G.711a, G.729A, iLBC, G.729B
Display diagonal	3.66 \
Display resolution	240 x 120 pixels
Networking standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.1x, IEEE 802.1Q
RJ-9 ports quantity	2
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	210 mm
Width	265 mm
Height	170.5 mm
Package depth	225 mm
Package width	300 mm
Package height	118 mm
