Yealink SIP-T27P User Manual

User Guide for the SIP-T27P IP Phone
178
Bridged Line Appearance (BLA)
BLA allows users to share a SIP line on two or more IP phones. Users can monitor the specific
extension (BLA number) for status changes on each IP phone. To use this feature, a BLA group
should be pre-configured on the server and one of them is specified as a BLA number. BLA
depends on support from a SIP server.

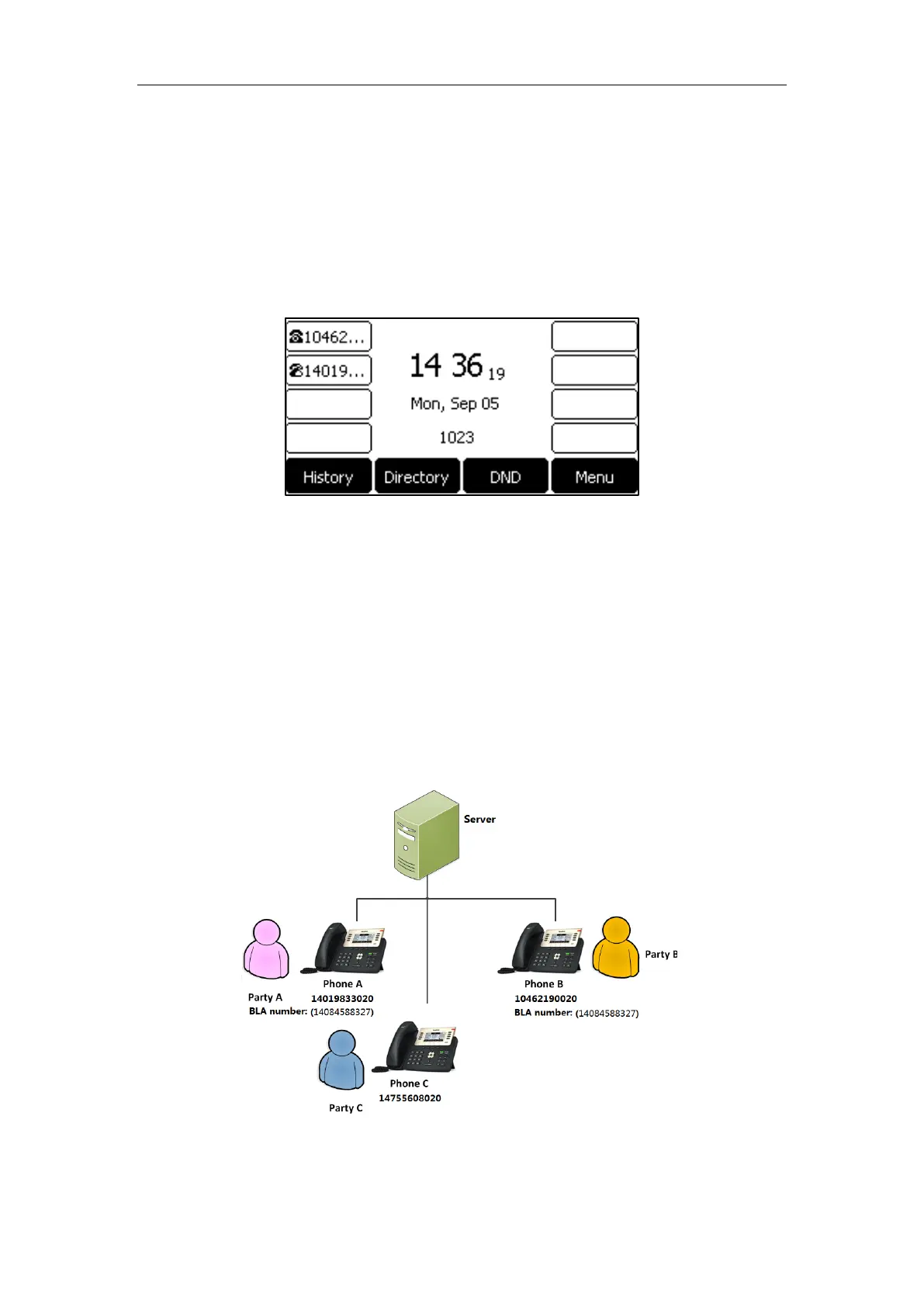

In the following figure, the first line is private and the second line is shared:
Any IP phone can be used to originate or receive calls on the bridged line. An incoming call to
the BLA number can be presented to multiple phones in the group simultaneously. The
incoming call can be answered on any IP phone of the group but not all.
Configuring BLA Feature on the IP Phone
You can share a BLA number on two or more phones. For example, phone A registers the
account 14019833020 and assigns BLA number, phone B registers the account 10462190020
and assigns BLA number, phone C registers the account 14755608020. Phone A and phone B
share the BLA number 14084588327.

Yealink SIP-T27P Specifications

General

Handset type	Wired handset
Product type	IP Phone
Product color	Cappuccino, Black
Backlight keypad	Yes
Volume control	Digital
Base station keys	36
Number of programmable keys	8
Phonebook capacity	1000 entries
Number of VoIP accounts	6
Voice codecs	G.722, G.726, G.711, G.729, G.711a, G.729A, iLBC, G.729B
Display diagonal	3.66 \
Display resolution	240 x 120 pixels
Networking standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.1x, IEEE 802.1Q
RJ-9 ports quantity	2
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	210 mm
Width	265 mm
Height	170.5 mm
Package depth	225 mm
Package width	300 mm
Package height	118 mm
