Yealink SIP-T27P User Manual

User Guide for the SIP-T27P IP Phone
174

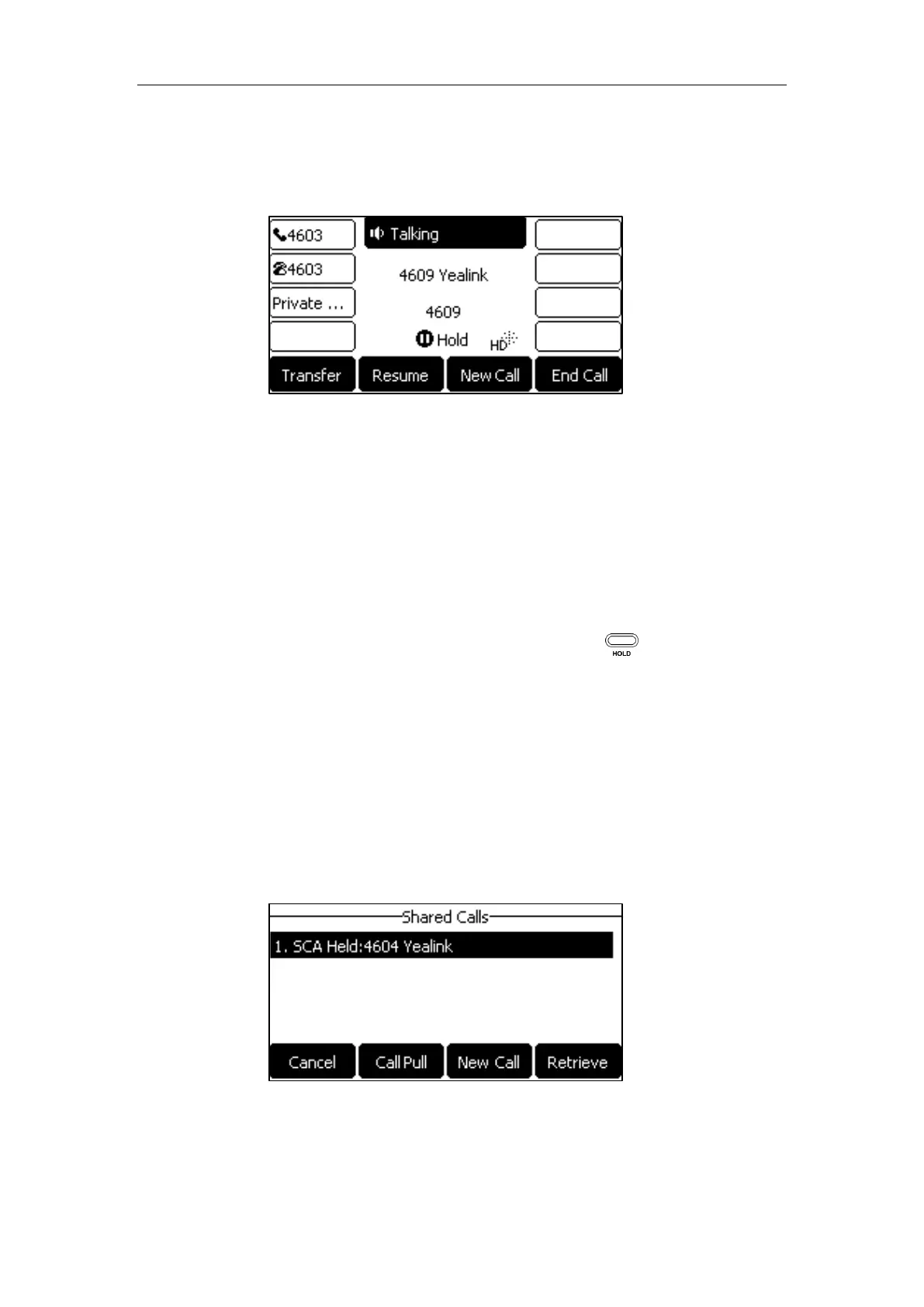

To place a call on private hold:
1. Press the PriHold soft key or private hold key on phone A when there is an active call on
the shared line (You may need to press the More soft key to see the PriHold soft key).
The line key LED slowly flashes green on phone A when the shared line call is placed on
private hold.
Retrieving a Held Call
To retrieve a call placed on public hold:
You can retrieve the public held call on either phone A or phone B.
To retrieve the call on phone A:
1. Press the line key with the slow-flashing green LED indicator, or the Resume soft
key.
The conversation between phone A and phone C is retrieved.
To retrieve the call on phone B:
Do one of the following:
- Press the line key with the slow-flashing red LED indicator.
- Long press the desired line key.
The Cancel, Call Pull, New Call and Retrieve soft keys appear on the LCD screen.
Press the Retrieve soft key to retrieve the call.
The conversation is established between phone B and phone C, phone A disconnects the call.
And the line key LEDs on phone A illuminate solid red and phone B illuminate solid green.

Yealink SIP-T27P Specifications

General

Handset type	Wired handset
Product type	IP Phone
Product color	Cappuccino, Black
Backlight keypad	Yes
Volume control	Digital
Base station keys	36
Number of programmable keys	8
Phonebook capacity	1000 entries
Number of VoIP accounts	6
Voice codecs	G.722, G.726, G.711, G.729, G.711a, G.729A, iLBC, G.729B
Display diagonal	3.66 \
Display resolution	240 x 120 pixels
Networking standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.1x, IEEE 802.1Q
RJ-9 ports quantity	2
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	210 mm
Width	265 mm
Height	170.5 mm
Package depth	225 mm
Package width	300 mm
Package height	118 mm
