Yealink SIP-T27P User Manual

Customizing Your Phone
61

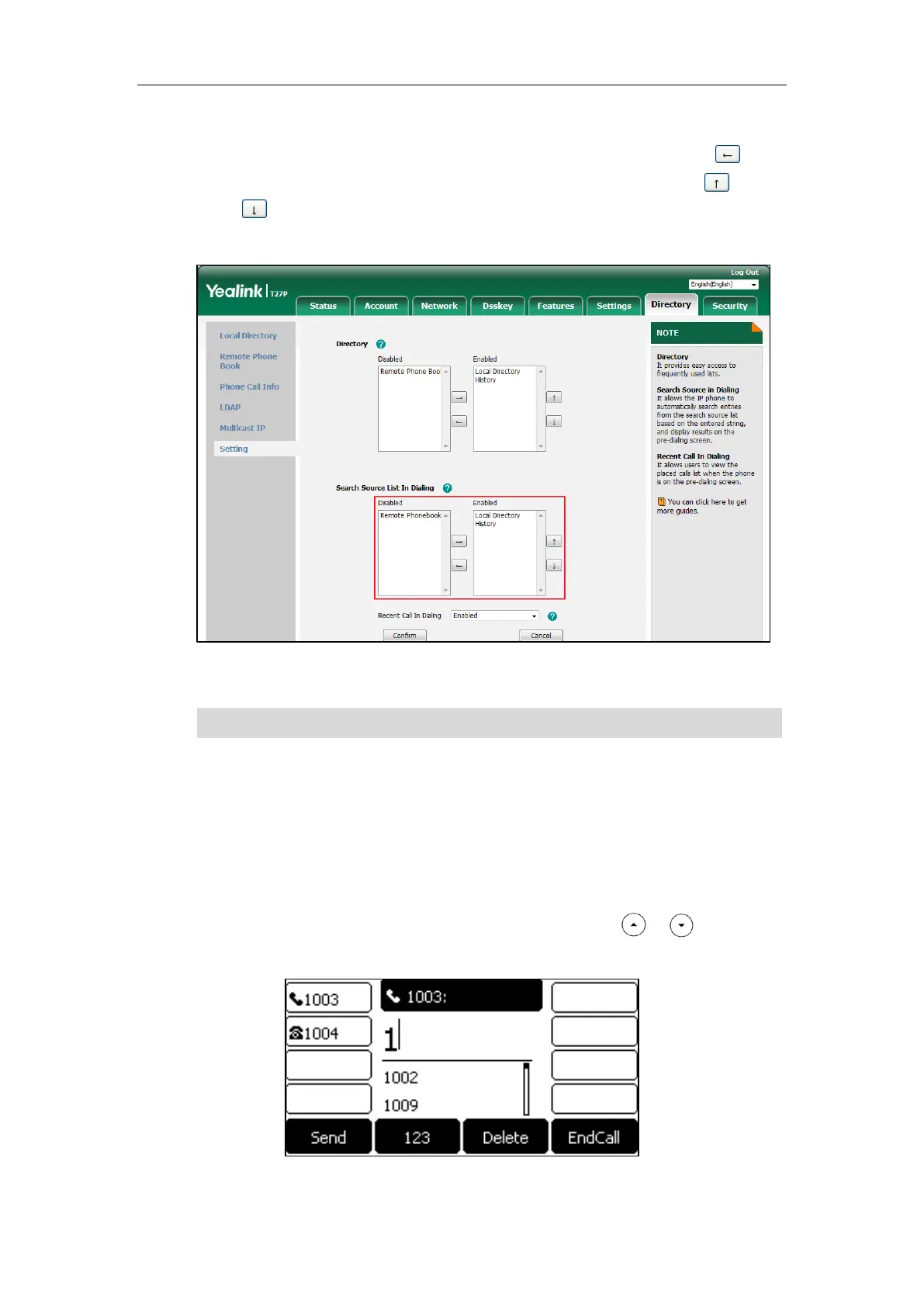

3. Repeat the step 2 to add more lists to the Enabled column.
4. To remove a list from the Enabled column, select the desired list and then click .
5. To adjust the display order of the enabled list, select the desired list, and click
or .
The LCD screen will display search results in the adjusted order.
6. Click Confirm to accept the change.
Note
To search for an entry in the enabled search source lists:
1. Pick up the handset, press the Speakerphone key or press the line key.
2. Enter a few continuous characters of the entry’s name or continuous numbers of the entry’s
phone number (office, mobile or other number) using the keypad.
The entries in the enabled search source lists whose name or phone number matches the
characters entered will appear on the LCD screen. You can press or to scroll to
the desired entry and then place a call to the entry.
Search source list in dialing is configurable via web user interface only.

Yealink SIP-T27P Specifications

General

Handset type	Wired handset
Product type	IP Phone
Product color	Cappuccino, Black
Backlight keypad	Yes
Volume control	Digital
Base station keys	36
Number of programmable keys	8
Phonebook capacity	1000 entries
Number of VoIP accounts	6
Voice codecs	G.722, G.726, G.711, G.729, G.711a, G.729A, iLBC, G.729B
Display diagonal	3.66 \
Display resolution	240 x 120 pixels
Networking standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.1x, IEEE 802.1Q
RJ-9 ports quantity	2
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	210 mm
Width	265 mm
Height	170.5 mm
Package depth	225 mm
Package width	300 mm
Package height	118 mm
