Yealink SIP-T48S User Manual

User Guide for the SIP-T48S IP Phone
108

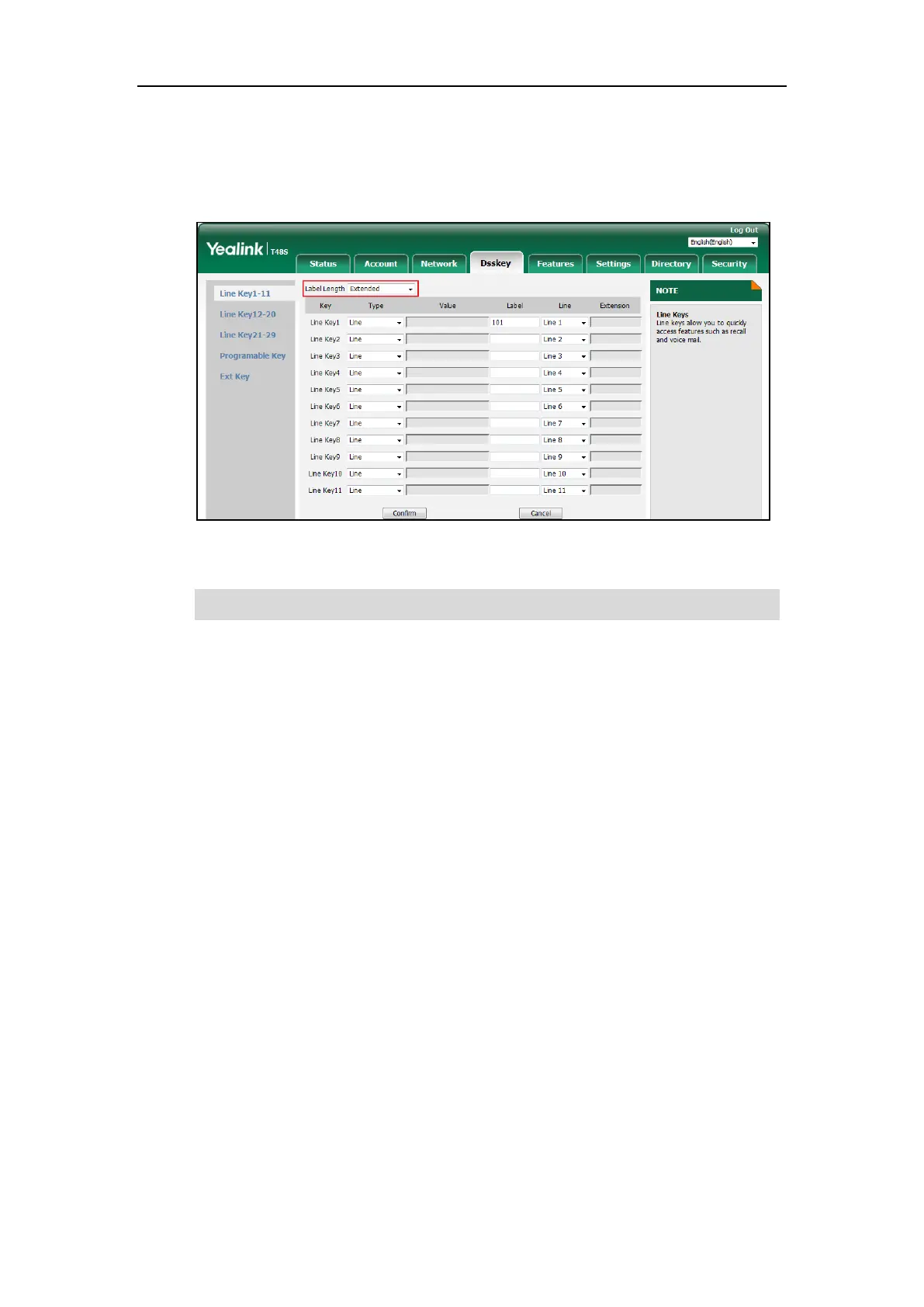

To configure the label length via web user interface:
1. Click on Dsskey->Line Key.
2. Select Extended from the pull-down list of Label Length.
3. Click Confirm to accept the change.
Note
Line Key Features
Line key features are explained in the following subchapters in detail:
 Line
 Speed Dial
 Voice Mail
 Direct Pickup
 Group Pickup
 Call Park
 DTMF
 Prefix
 Local Group
 XML Group
 XML Browser
 LDAP
 SMS
 Conference
Label length feature is configurable via web user interface only.

Yealink SIP-T48S Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Keypad illumination	Yes
Display diagonal	7 \
Display resolution	800 x 480 pixels
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	5 V
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Front camera	No
Voice codecs	CNG, G.711Mu, G.711a, G.722, G.723.1, G.726, G.729ab, VAD, iLBC
Lines quantity	16 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Keypad number of keys	42
Security algorithms	AES
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, HTTPS
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	225 mm
Width	266 mm
Height	185 mm
Package depth	263 mm
Package width	324 mm
Package height	128 mm
