Yealink SIP-T48S User Manual

User Guide for the SIP-T48S IP Phone
56
This field appears only if Daylight Saving field is selected Automatic, and the default time
zone name is “China(Beijing)”.
7. Tap the Save soft key to accept the change or to cancel.
Note

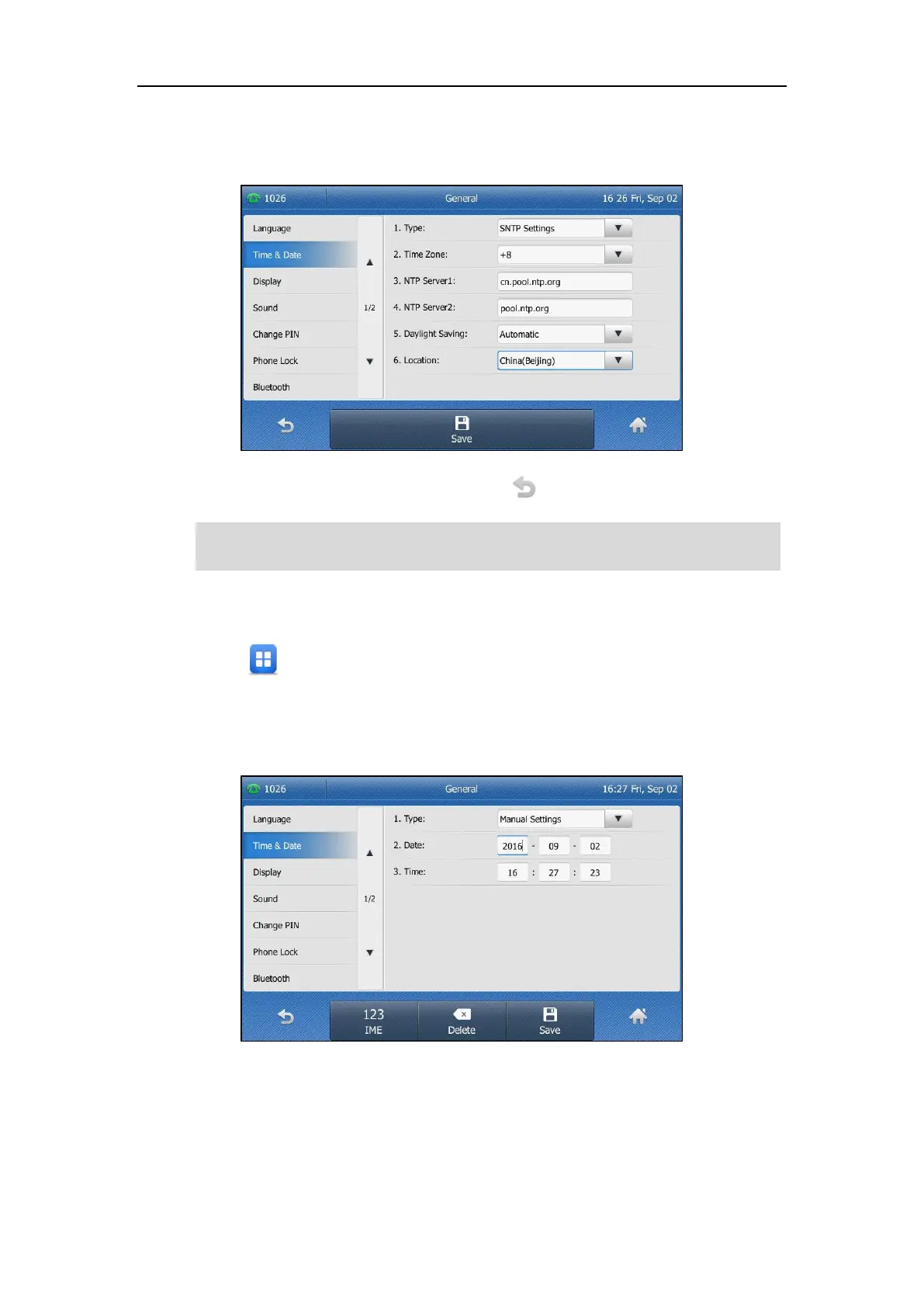

To configure the time and date manually via phone user interface:
1. Tap ->Basic->Time & Date->General.
2. Tap the gray box of the Type field, and then select Manual Settings from the pull-down
list.
3. Enter the specific date and time in the corresponding fields.
4. Tap the Save soft key to accept the change.
The time and date displayed on the touch screen will change accordingly.
Please refer to Appendix A – Time Zones on page 247 for the list of available time zones on the
IP phone.

Yealink SIP-T48S Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Keypad illumination	Yes
Display diagonal	7 \
Display resolution	800 x 480 pixels
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	5 V
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Front camera	No
Voice codecs	CNG, G.711Mu, G.711a, G.722, G.723.1, G.726, G.729ab, VAD, iLBC
Lines quantity	16 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Keypad number of keys	42
Security algorithms	AES
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, HTTPS
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	225 mm
Width	266 mm
Height	185 mm
Package depth	263 mm
Package width	324 mm
Package height	128 mm
