Yealink SIP-T48S User Manual

User Guide for the SIP-T48S IP Phone
84
3. Enter a few continuous characters of the contact name or continuous numbers of the
contact number (office, mobile or other number) using the keypad.

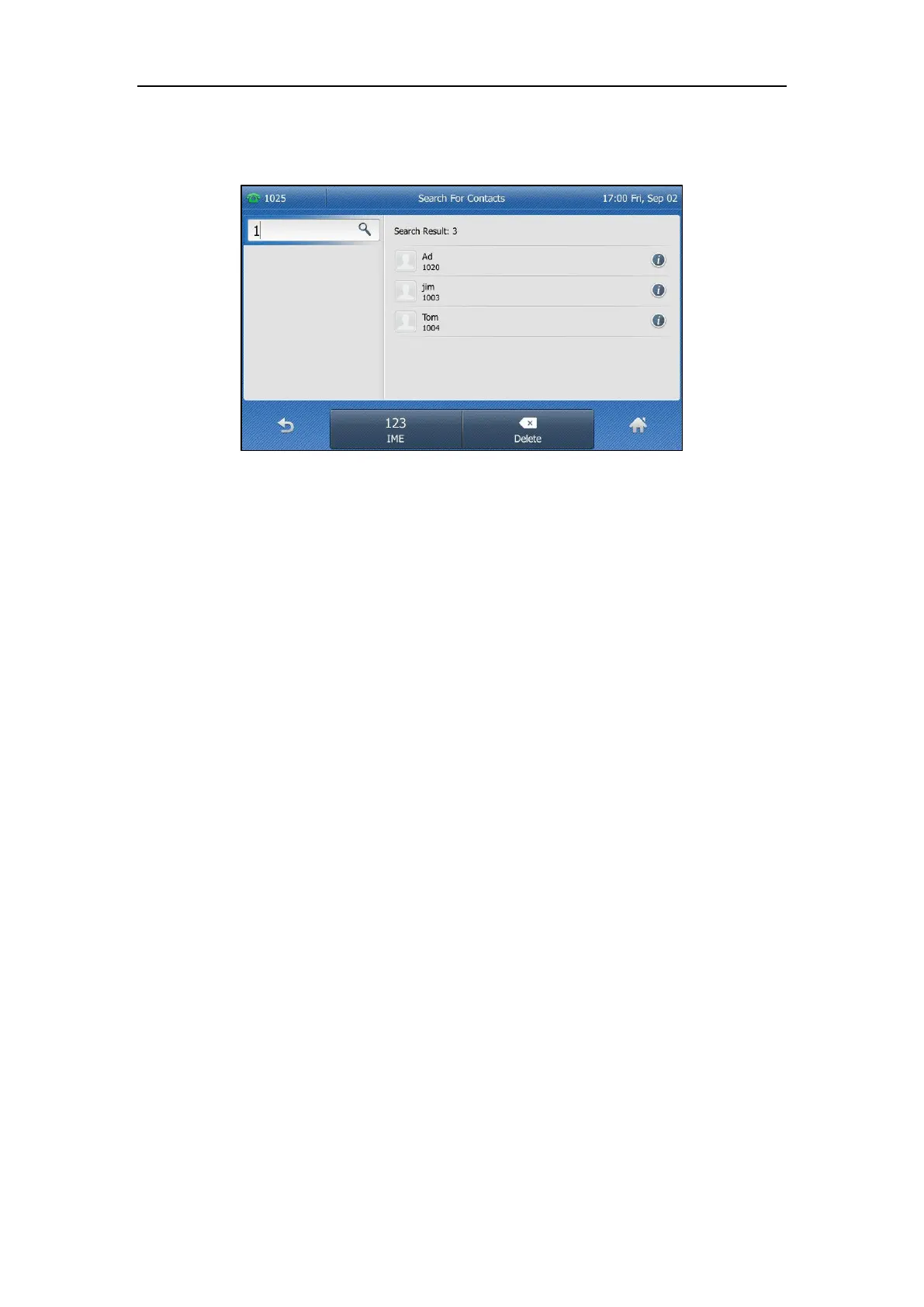

The contacts whose name or phone number matches the characters entered will appear on
the touch screen. You can dial from the result list.
Importing/Exporting Contact Lists
You can manage your phone’s local directory via phone user interface or web user interface. But
you can only import or export the contact list via web user interface.
To import an XML contact list file via web user interface:
1. Click on Directory->Local Directory.
2. Click Browse to locate a contact list file (the file format must be *.xml) from your local
system.

Yealink SIP-T48S Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Keypad illumination	Yes
Display diagonal	7 \
Display resolution	800 x 480 pixels
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	5 V
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Front camera	No
Voice codecs	CNG, G.711Mu, G.711a, G.722, G.723.1, G.726, G.729ab, VAD, iLBC
Lines quantity	16 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Keypad number of keys	42
Security algorithms	AES
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, HTTPS
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	225 mm
Width	266 mm
Height	185 mm
Package depth	263 mm
Package width	324 mm
Package height	128 mm
